Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Compass
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B
Test B
PINPOINT TEST B: THE
COMPASS
IS INACCURATE

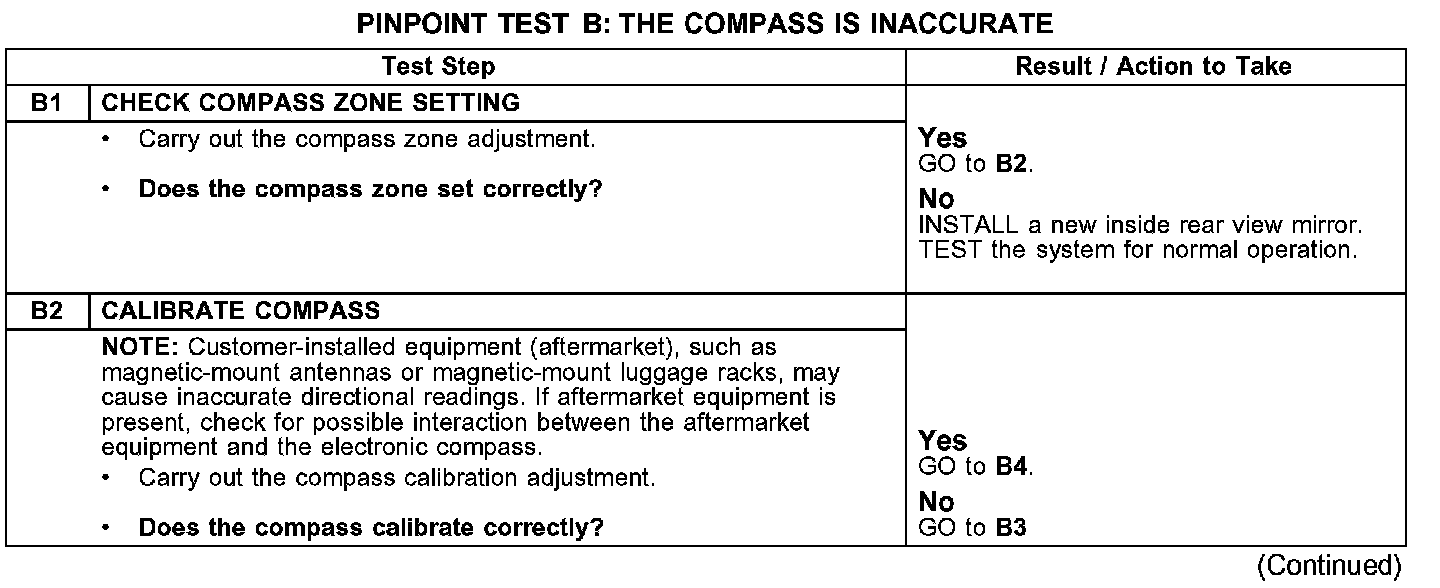

Test B1-B2:

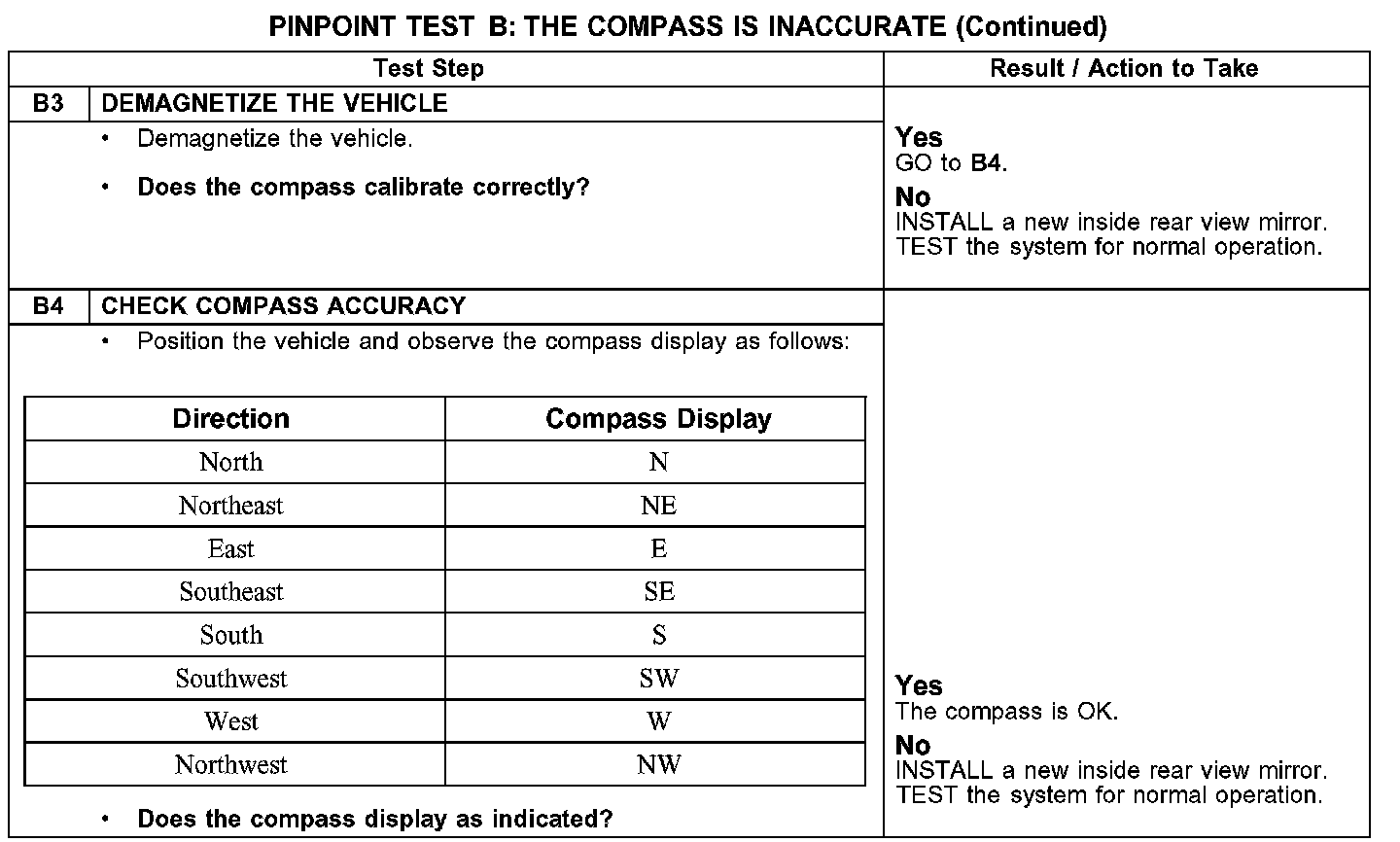

Test B3-B4:
