Home >> Ford >> 2004 >> Taurus V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test G

Test G

PINPOINT TEST G: THE TACHOMETER IS INOPERATIVE

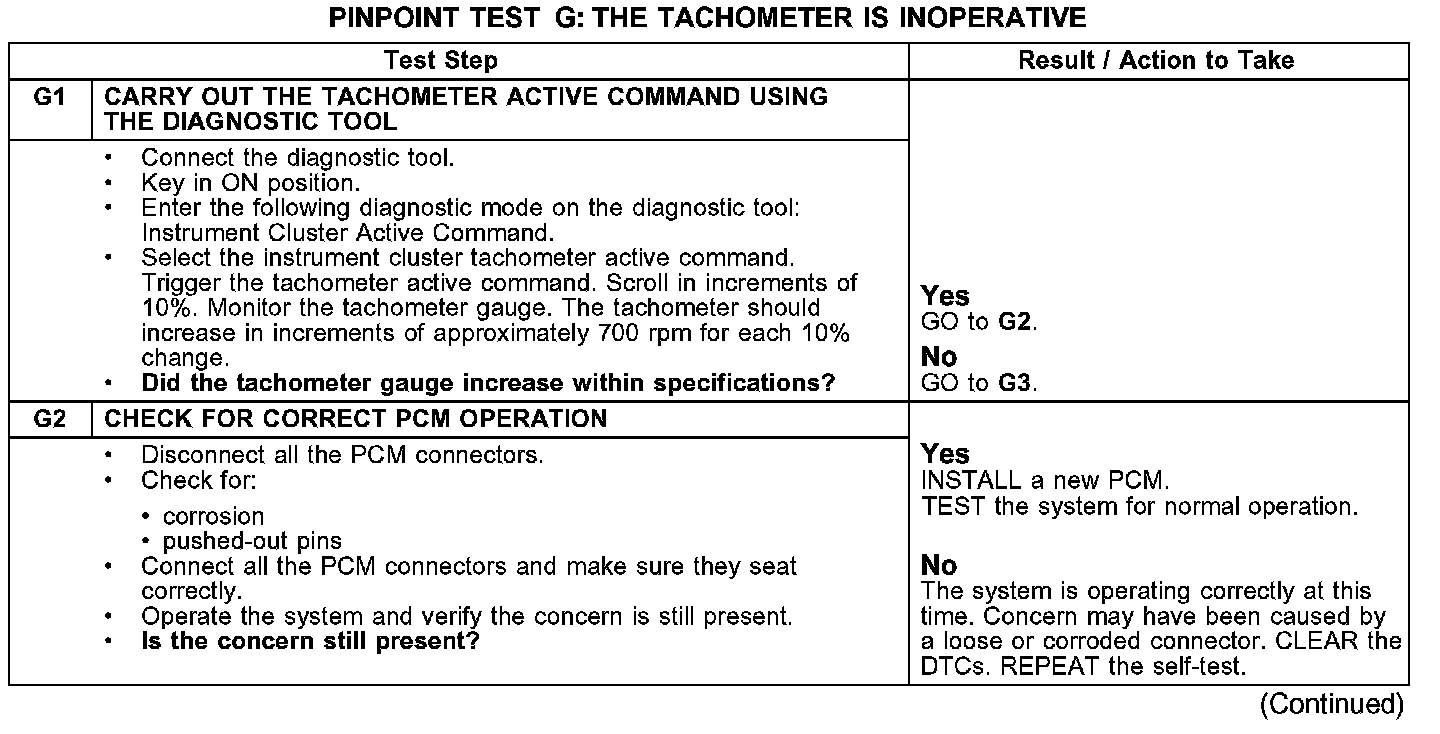

Test G1-G2:

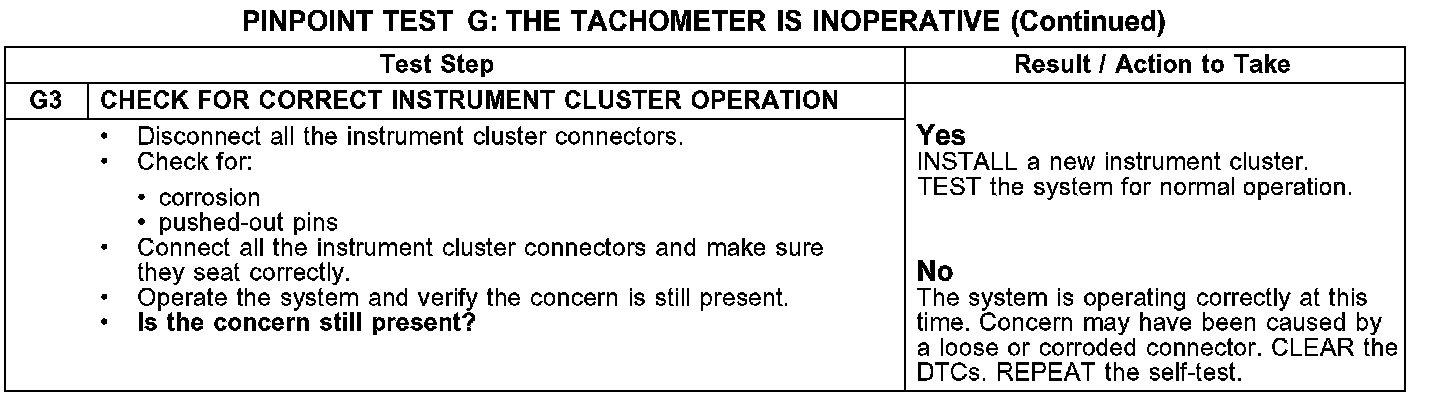

Test G3:
