Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test C
Test C
PINPOINT TEST C: THE INTEGRATED CONTROL PANEL ILLUMINATION IS INOPERATIVE
Test C1:

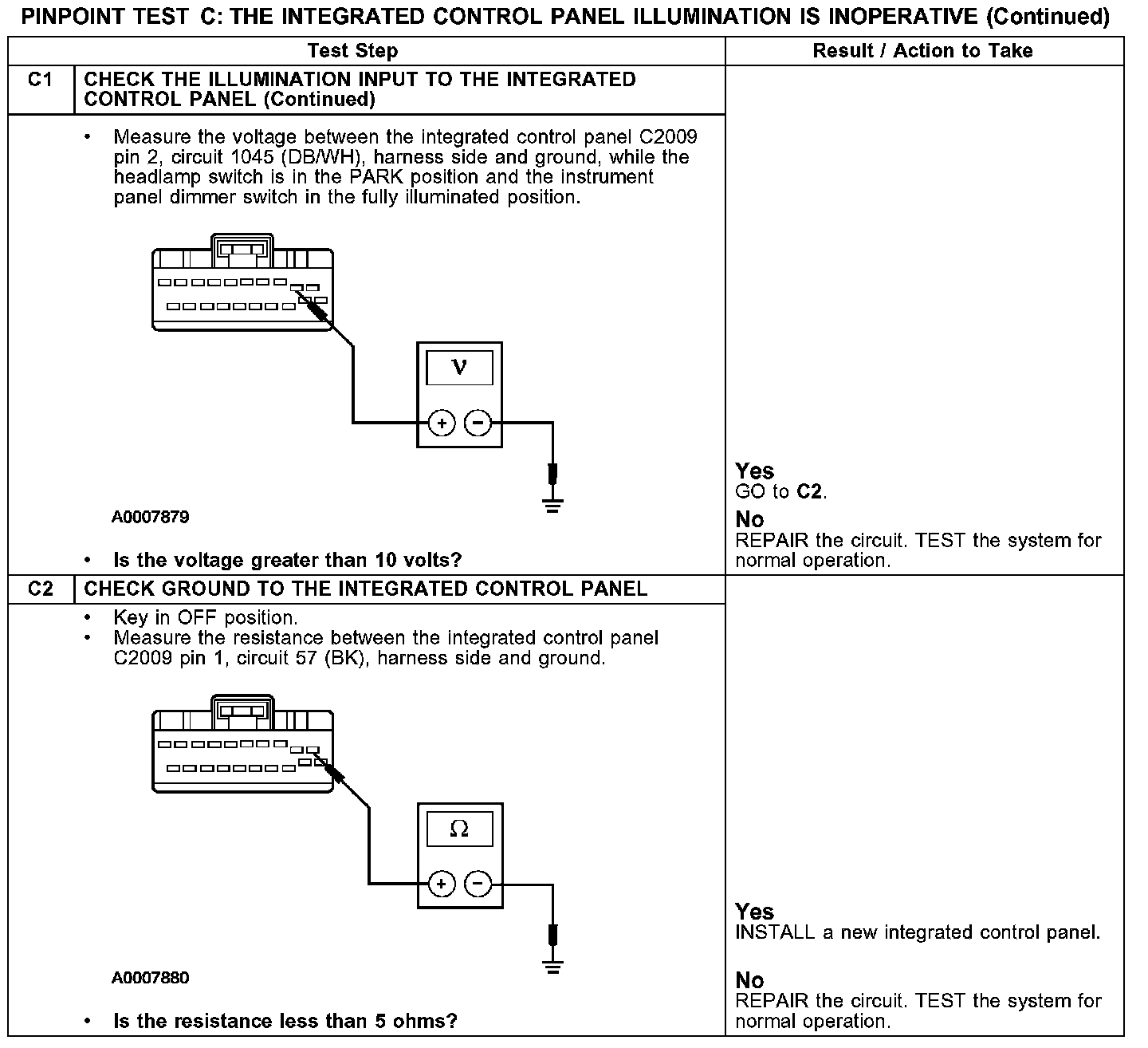

Test C1-C2:
