Test F

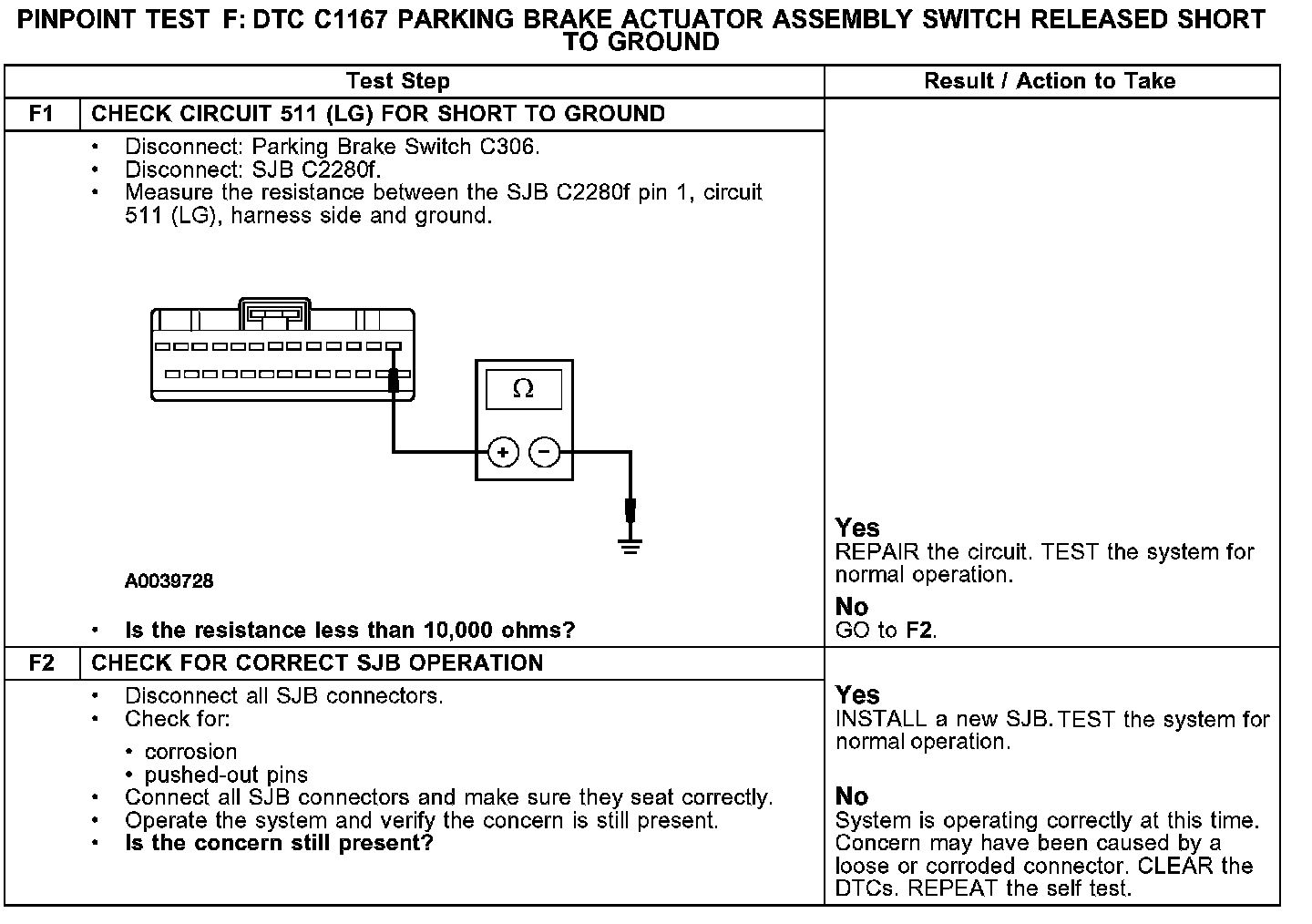

PINPOINT TEST F: DTC C1167 PARKING BRAKE ACTUATOR ASSEMBLY SWITCH RELEASED SHORT TO GROUND


Test F1-F2:
