Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Taurus V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>

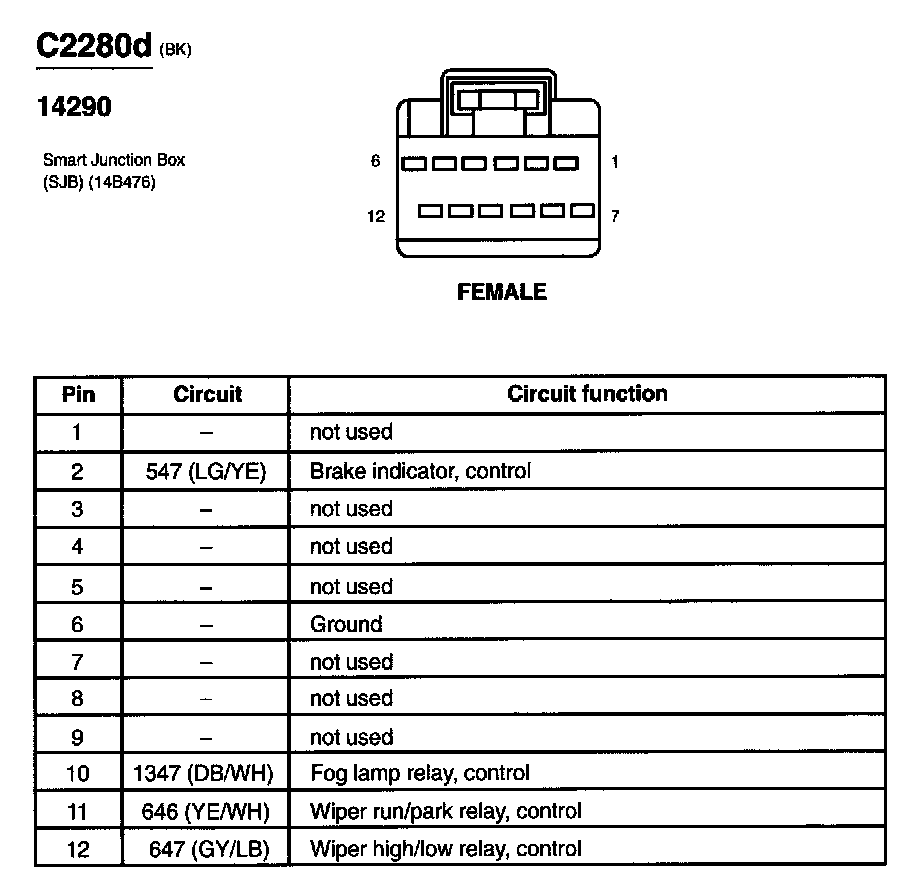

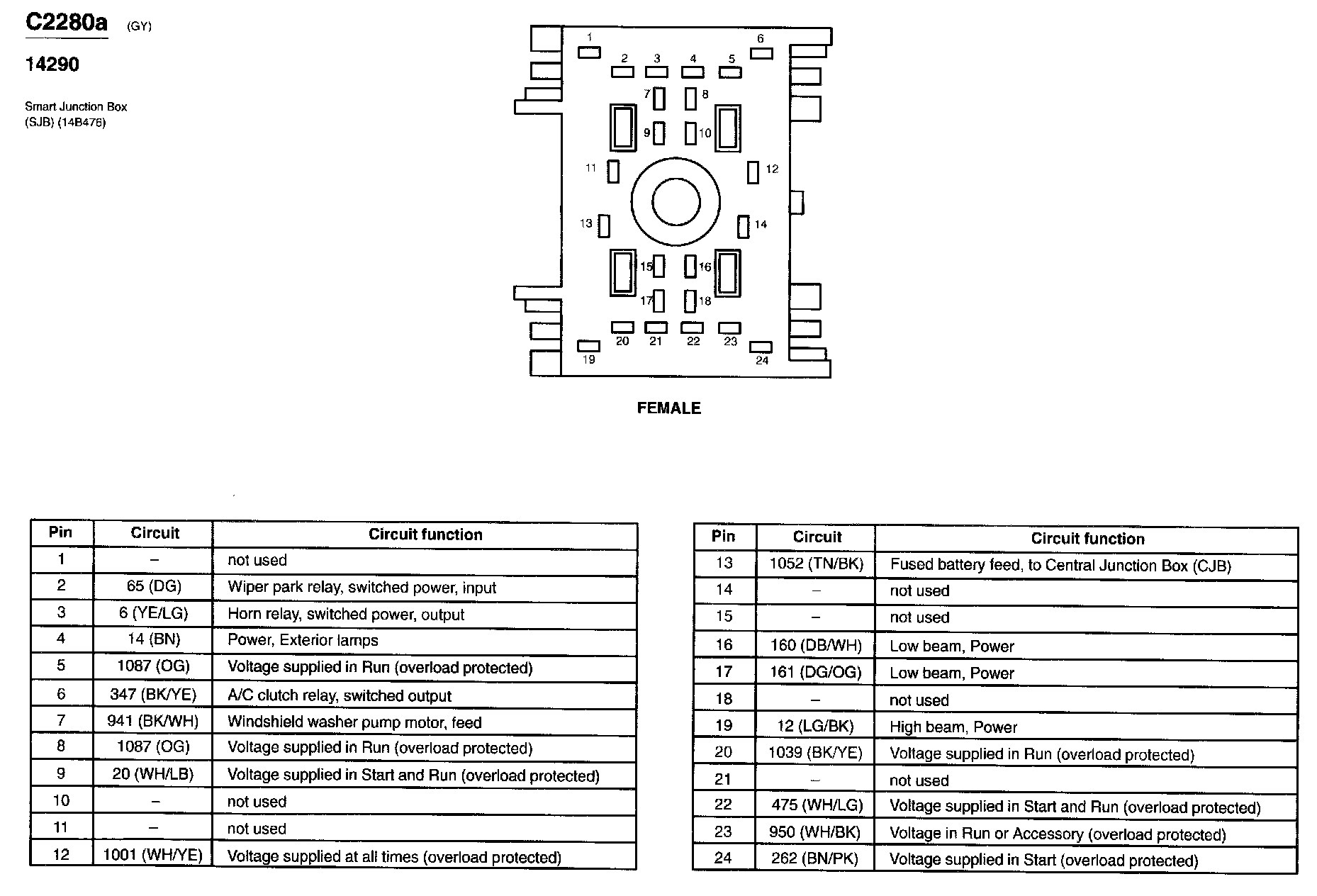

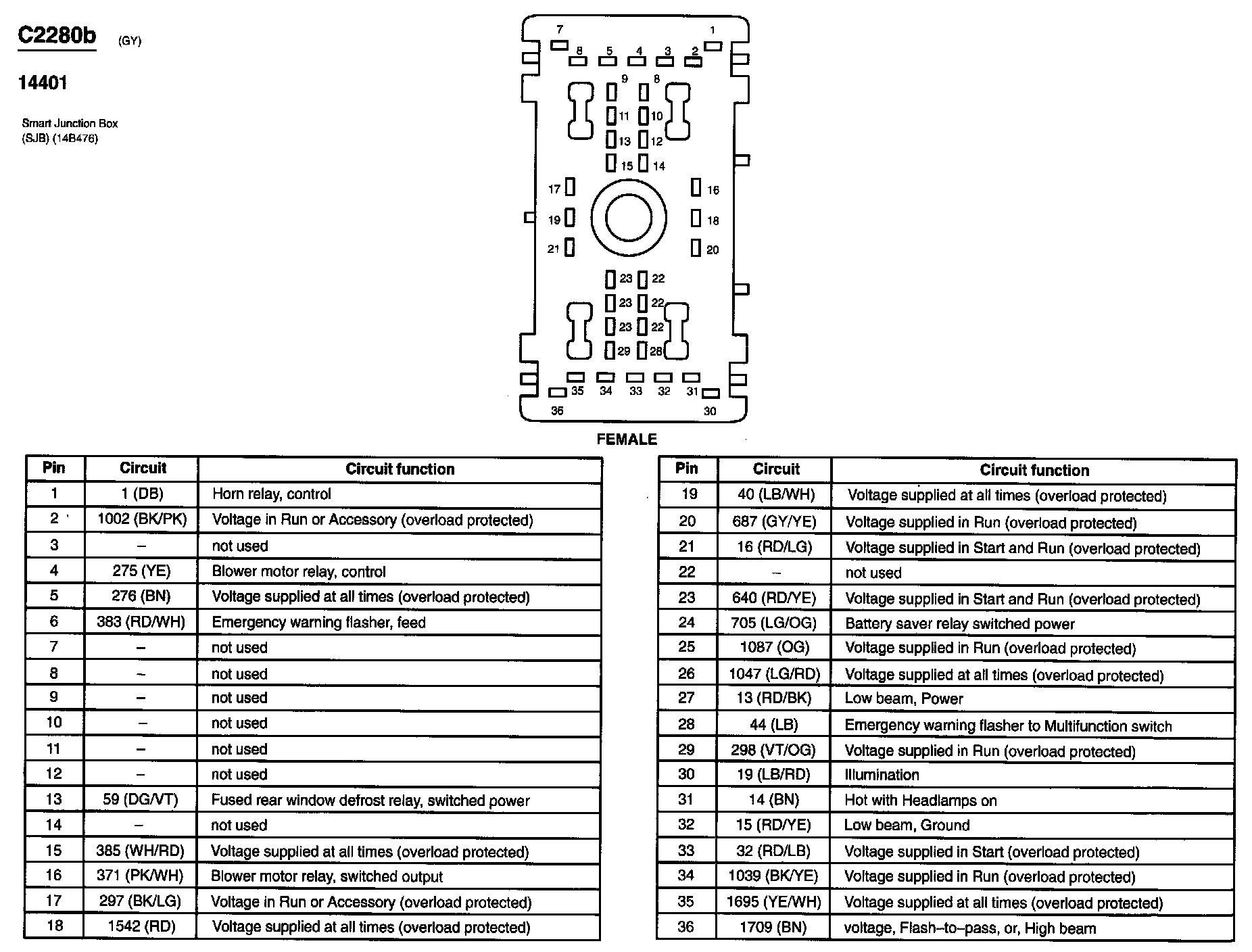

Smart Junction Box
Smart Junction Box
