Home >> Ford >> 2004 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test N

Test N

PINPOINT TEST N: THE POWER ANTENNA IS INOPERATIVE

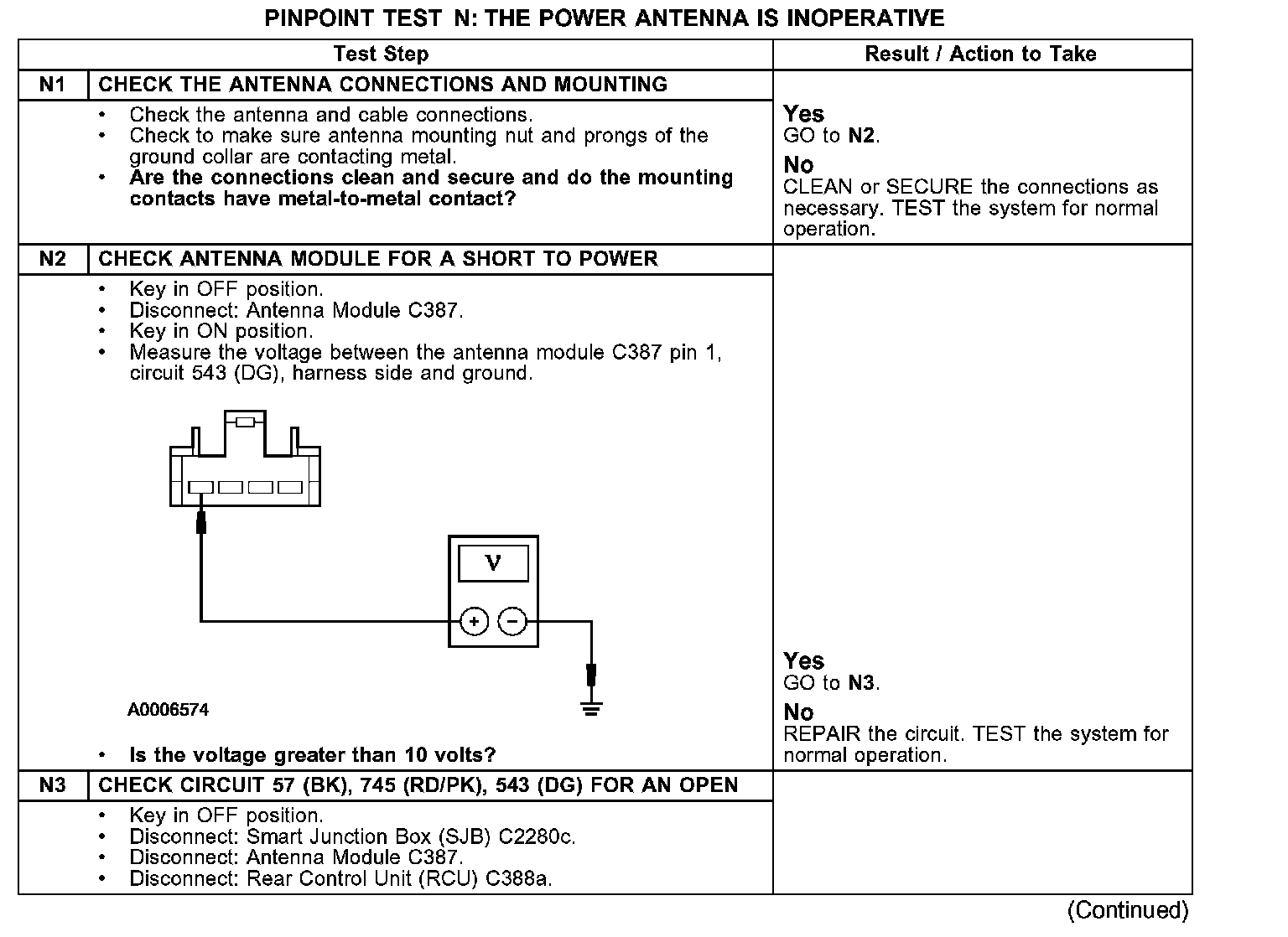

Test N1-N3:

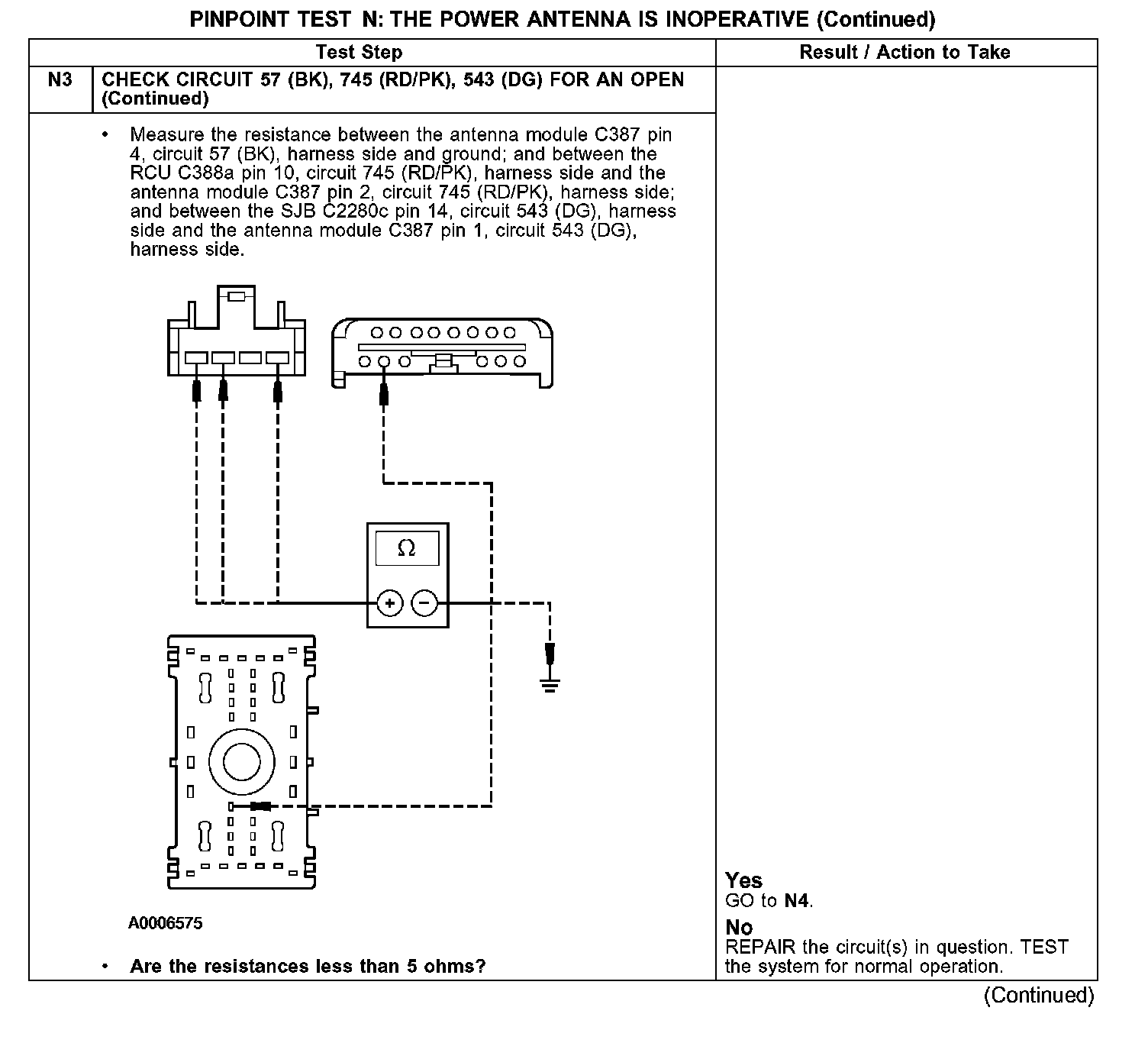

Test N3 Continued:

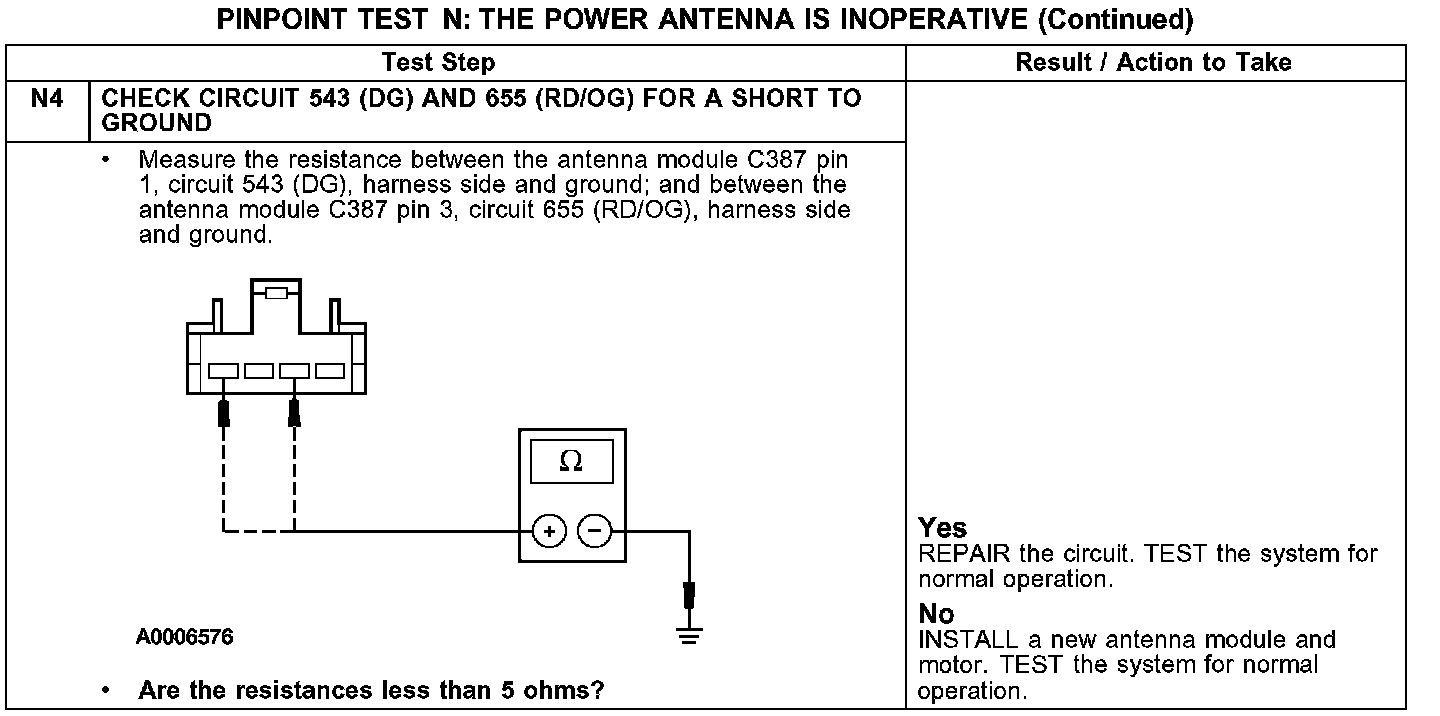

Test N4:
