Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID


REMOVAL
1. Remove the evaporative emission canister assembly.

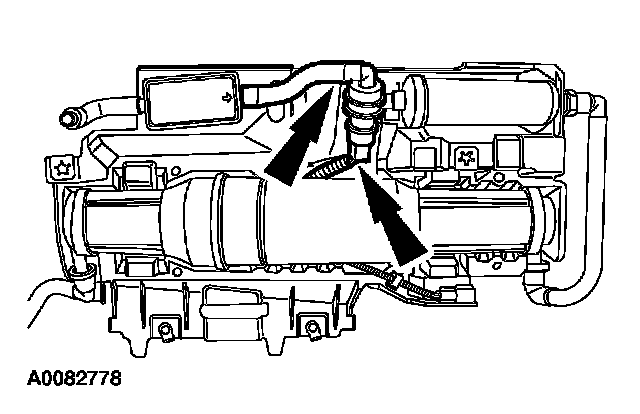

2. Disconnect the tube and electrical connector from the EVAP canister vent solenoid.

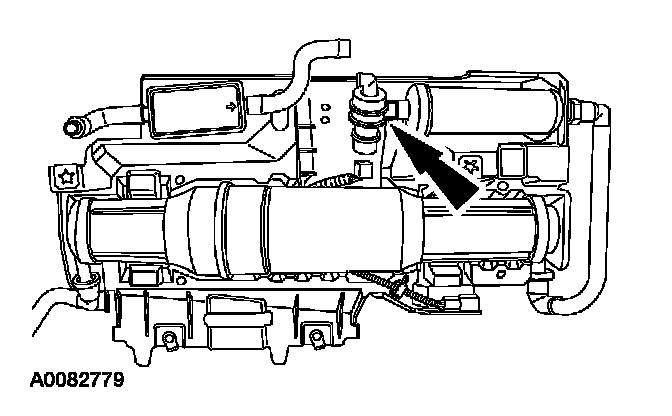

3. Remove the EVAP canister vent solenoid from EVAP canister assembly.

INSTALLATION
1. To install, reverse the removal procedure.
