Rear Door Glass Top Run
REAR DOOR GLASS TOP RUNHeavy Duty Riveter:

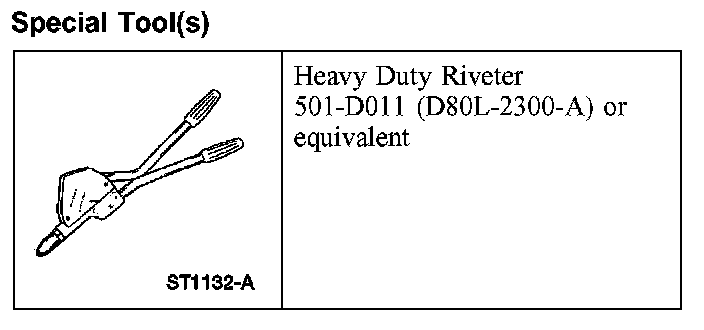

SPECIAL TOOL(S)
REMOVAL
1. CAUTION: Due to the fragile make-up of the rear door glass top run, removal is recommended only if the top run is damaged. Necessary removal may damage the light-gauge steel carrier insert within the rubber seal of the rear door glass top run.
Remove the rear door window glass.

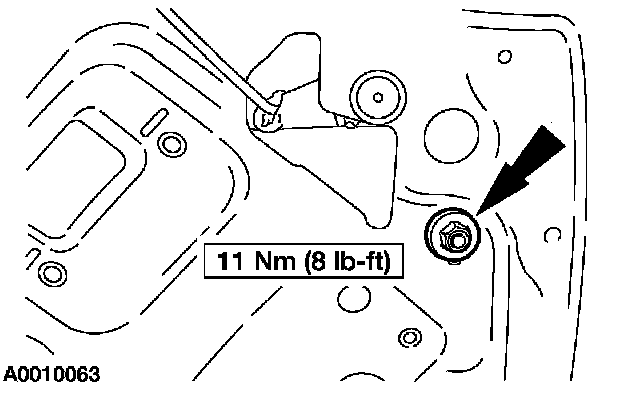

2. Remove the rear door window glass top run bolt.

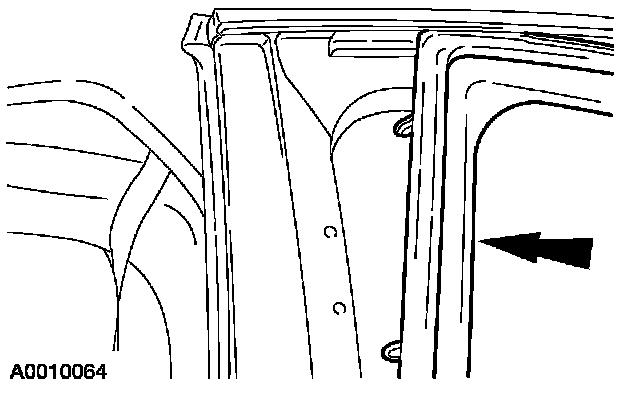

3. NOTE: When installing be sure to correctly align locator pins.
Remove the rear door glass top run.
INSTALLATION
1. To install, reverse the removal procedure.
