Quarter

REAR QUARTER WINDOW GLASS

REMOVAL

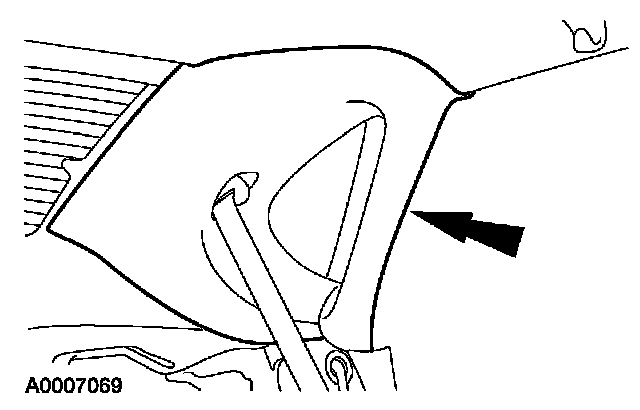

1. Remove the rear quarter trim panel.

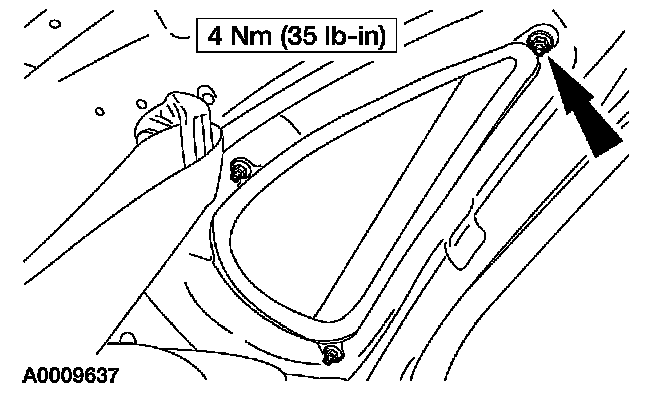

2. Remove the rear quarter window glass nuts.
3. Remove the rear quarter window glass.

INSTALLATION

1. NOTE: Reseal the rear quarter window glass with new foam core butyl.

To install, reverse the removal procedure.
