Removal and Installation

ANTENNA

REMOVAL

NOTE: The antenna is a conductive trace integral to the front windshield and can be repaired, but not installed separately. For removal and installation of the front windshield glass, refer to Windows. For repair procedures, refer to Antenna Grid Wire Repair.

1. Remove the glove compartment.
2. Remove the A-pillar trim upper panel.

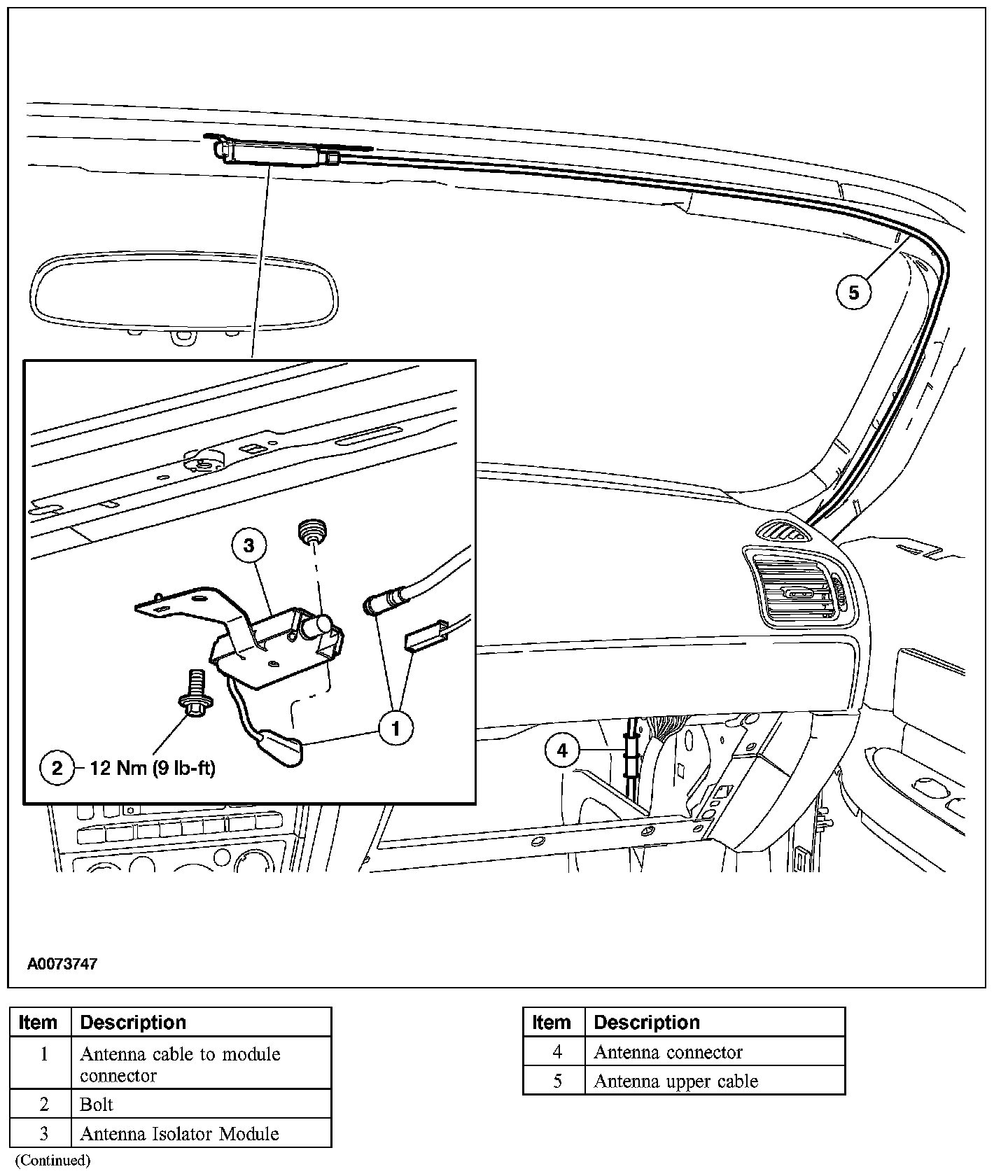

3. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
