Anti-Theft - Perimeter

INSPECTION AND VERIFICATION

1. Verify the customer concern.

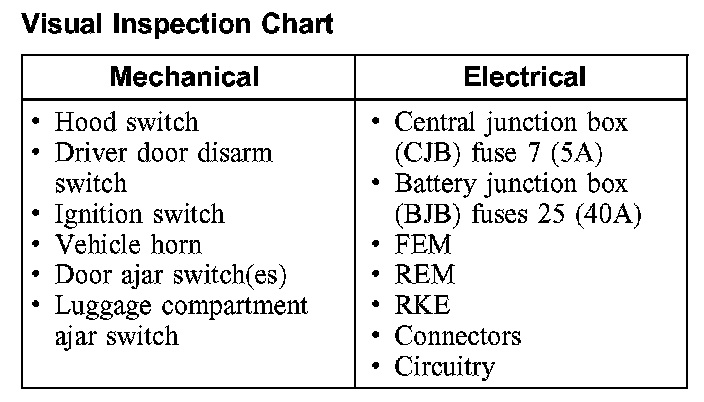

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, connect the diagnostic tool to the data link connector and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the key switch position.

5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool operating manual.
6. Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
- SCP+, SCP- or UBP circuit fault; all electronic units no response/not equipped, refer to Information Bus (Module Communications Network).
- No response/not equipped for front electronic module (FEM), refer to Information Bus (Module Communications Network).
- No response/not equipped for rear electronic module (REM), refer to Information Bus (Module Communications Network).
- No response/not equipped for remote keyless entry (RKE) module, refer to Information Bus (Module Communications Network).
- System passed, select FEM, REM and RKE from the main menu, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self-test diagnostics for the FEM, REM or RKE.

7. If the DTCs retrieved are related to the concern, go to FEM Diagnostic Trouble Code (DTC) Index, REM Diagnostic Trouble Code (DTC) Index or RKE Diagnostic Trouble Code (DTC) Index to continue diagnostics. FEM Diagnostic Trouble Code (DTC) Index REM Diagnostic Trouble Code (DTC) Index RKE Diagnostic Trouble Code (DTC) Index
8. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Symptom Related Diagnostic Procedures
