Audio Unit Amplifier - Center Imaging

AUDIO UNIT AMPLIFIER - CENTER IMAGING

REMOVAL
1. Remove the driver side floor duct.

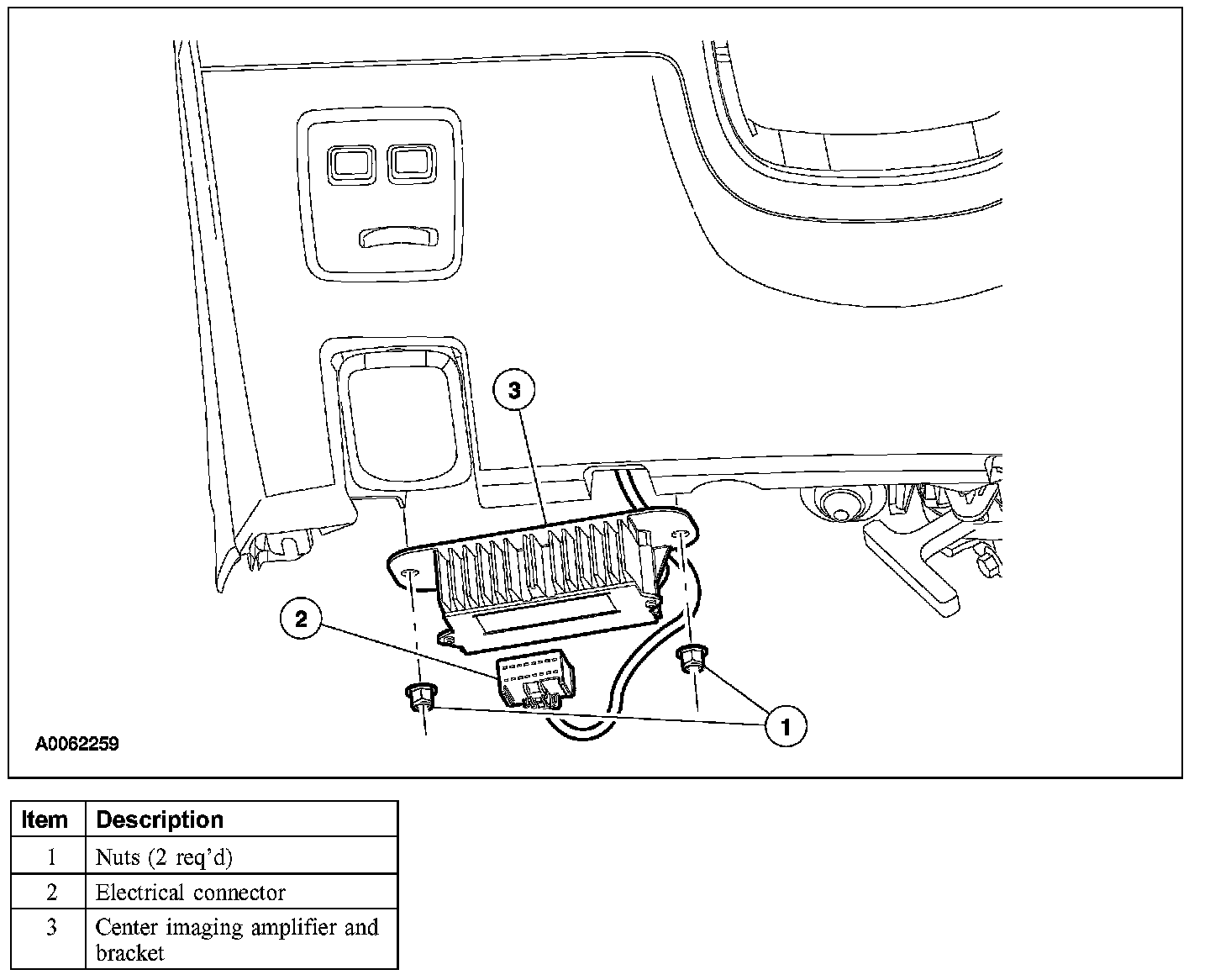

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
