Audio Unit

AUDIO UNIT

REMOVAL
1. Disconnect the battery ground cable.

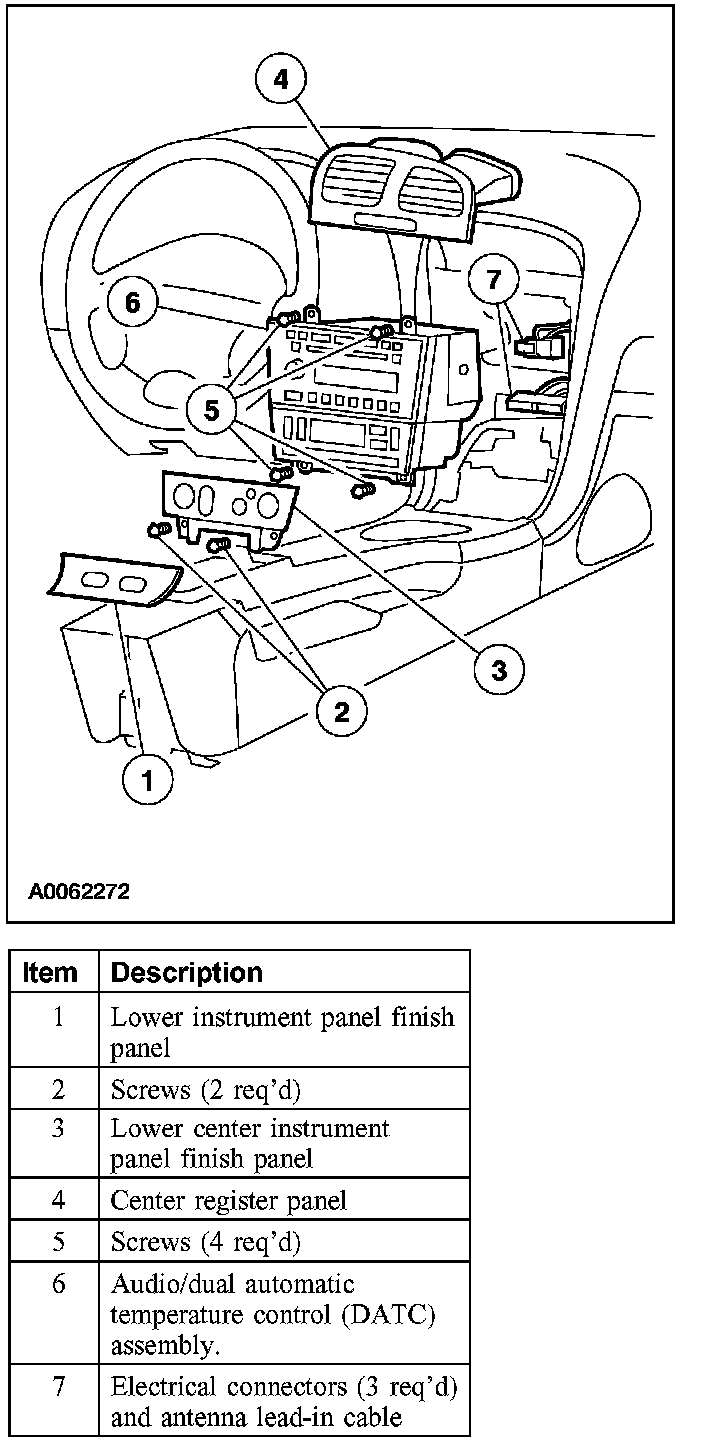

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
