Speaker Enclosure - Subwoofer
SPEAKER ENCLOSURE - SUBWOOFERREMOVAL
NOTE: The right side quarter trim panel and the rear speaker grilles are removed for clarity.

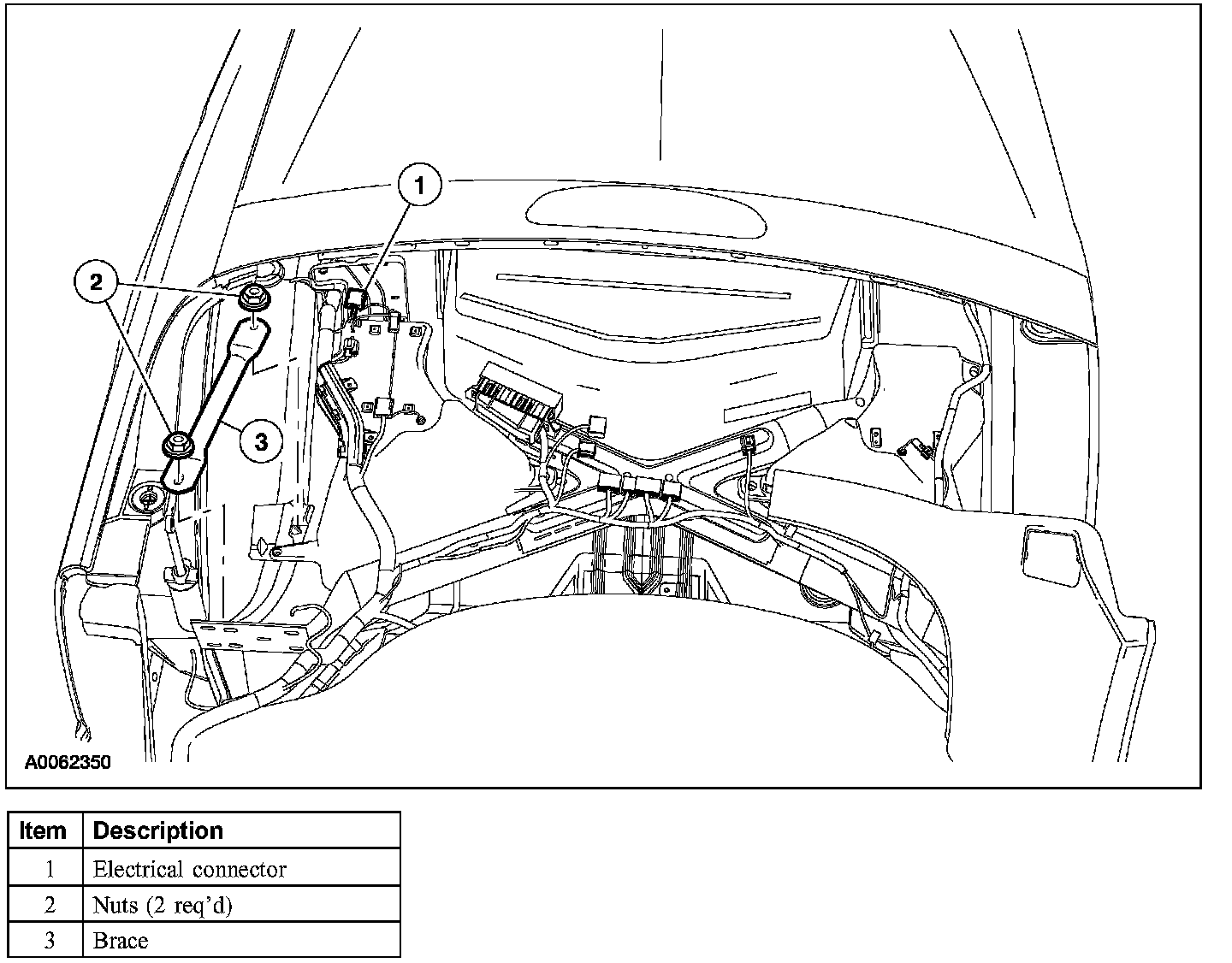

1. Remove the subwoofer amplifier.

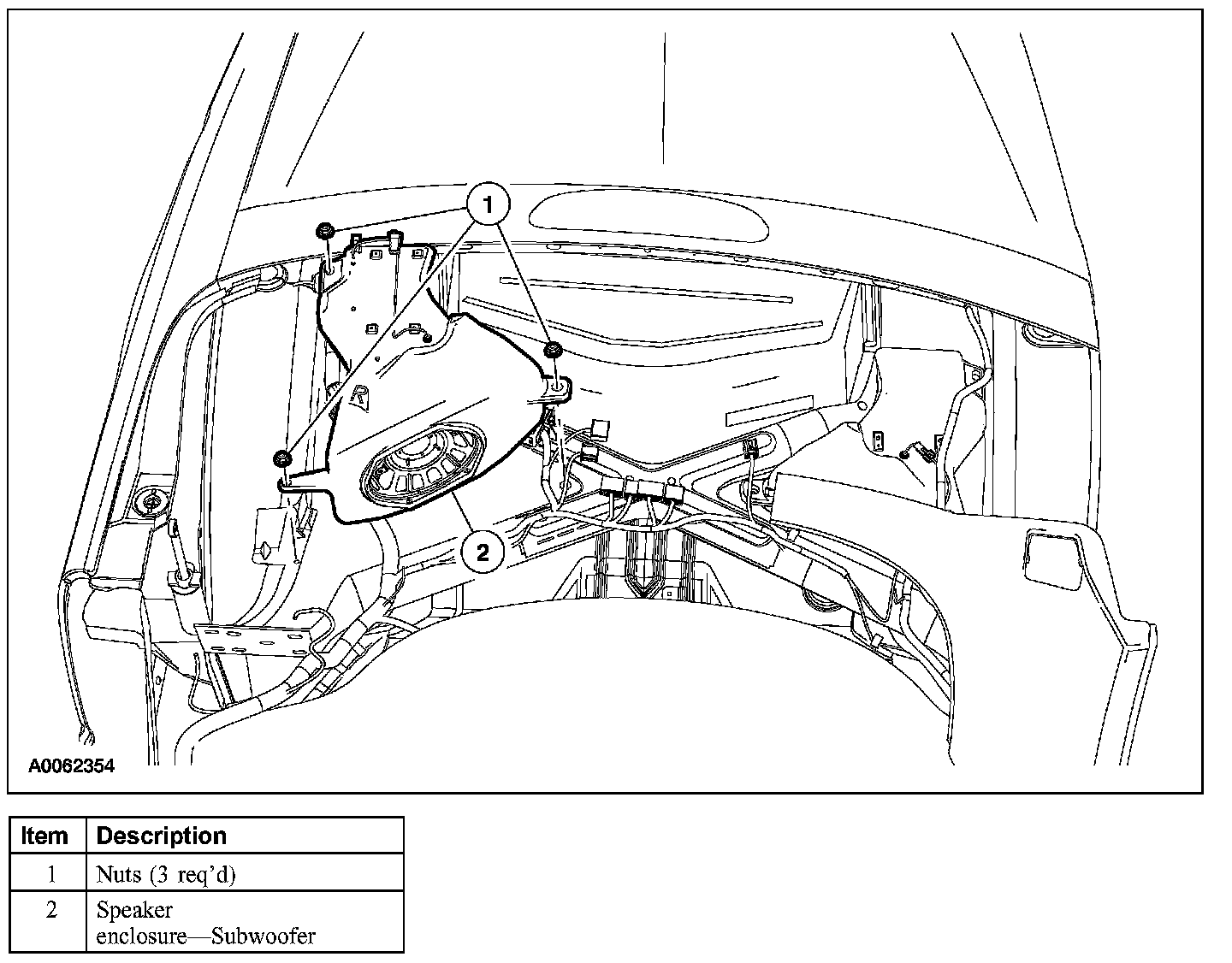

2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
