Center Imaging Amplifier C225

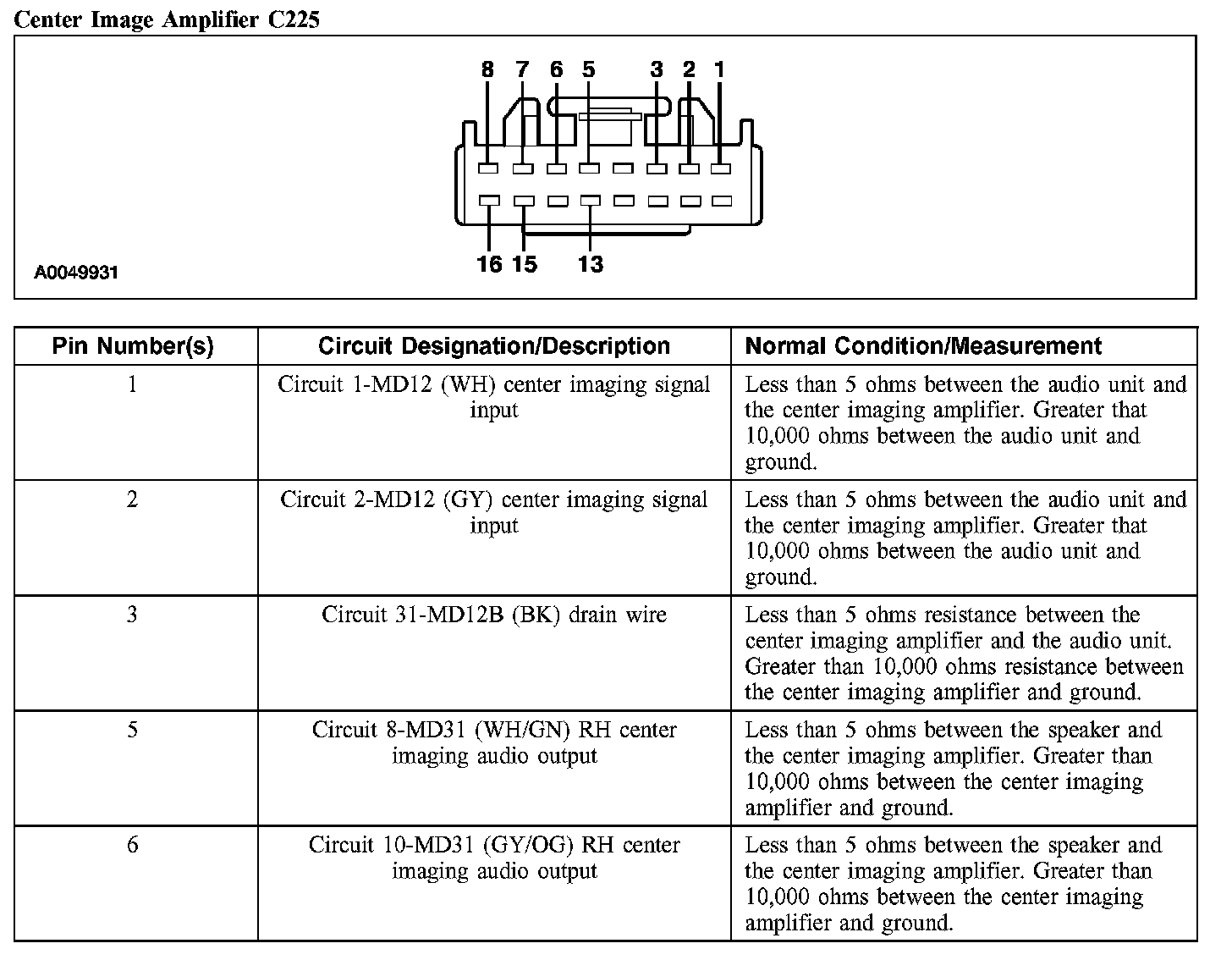

Center Image Amplifier C225, Part 1:

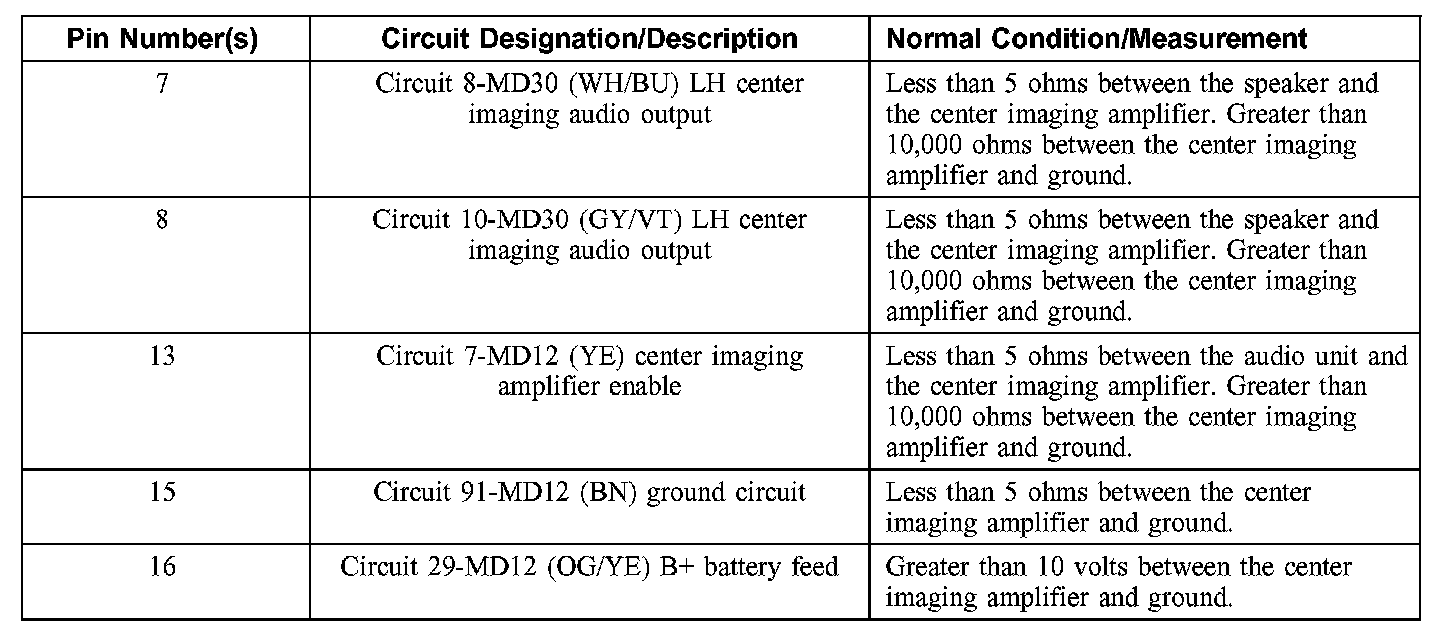

Center Image Amplifier C225, Part 2:
