Hood Latch: Service and Repair

HOOD LATCH

REMOVAL
1. Remove the upper radiator sight shield.

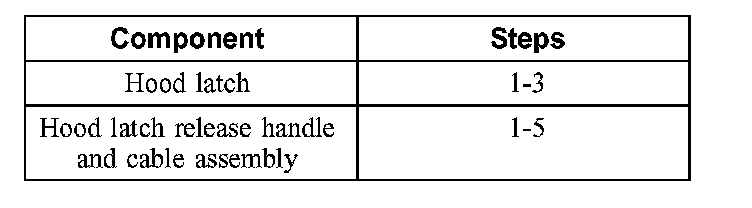

2. To remove the individual components only carry out the listed steps.

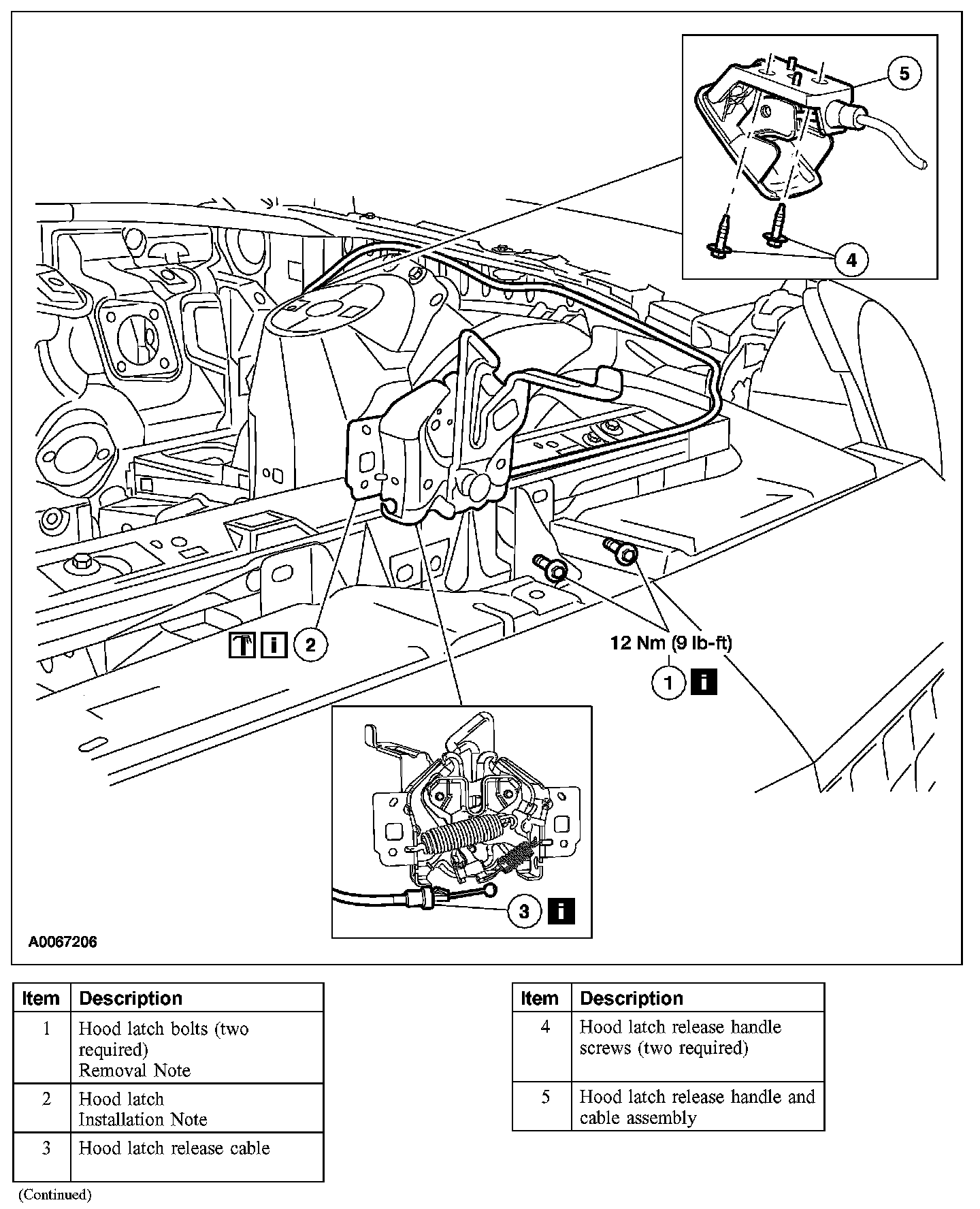

3. Remove the components in the order indicated in the illustration and table.

Item 1:Hood Latch Bolts Removal Note
1. Mark the hood latch prior to removal of the bolts.

Item 3: Hood Latch Release Cable Removal Note
1. Release the cable locators.
1 Remove the degas bottle.

INSTALLATION
1. To install, reverse the removal procedure.

Item 2: Hood Latch Installation Note
1. When a new hood latch is installed, latch adjustment must be checked to make sure the latch was installed correctly.
