Trunk / Liftgate Latch: Service and Repair

LUGGAGE COMPARTMENT LID LATCH

REMOVAL
1. Remove the LH luggage compartment trim panel.

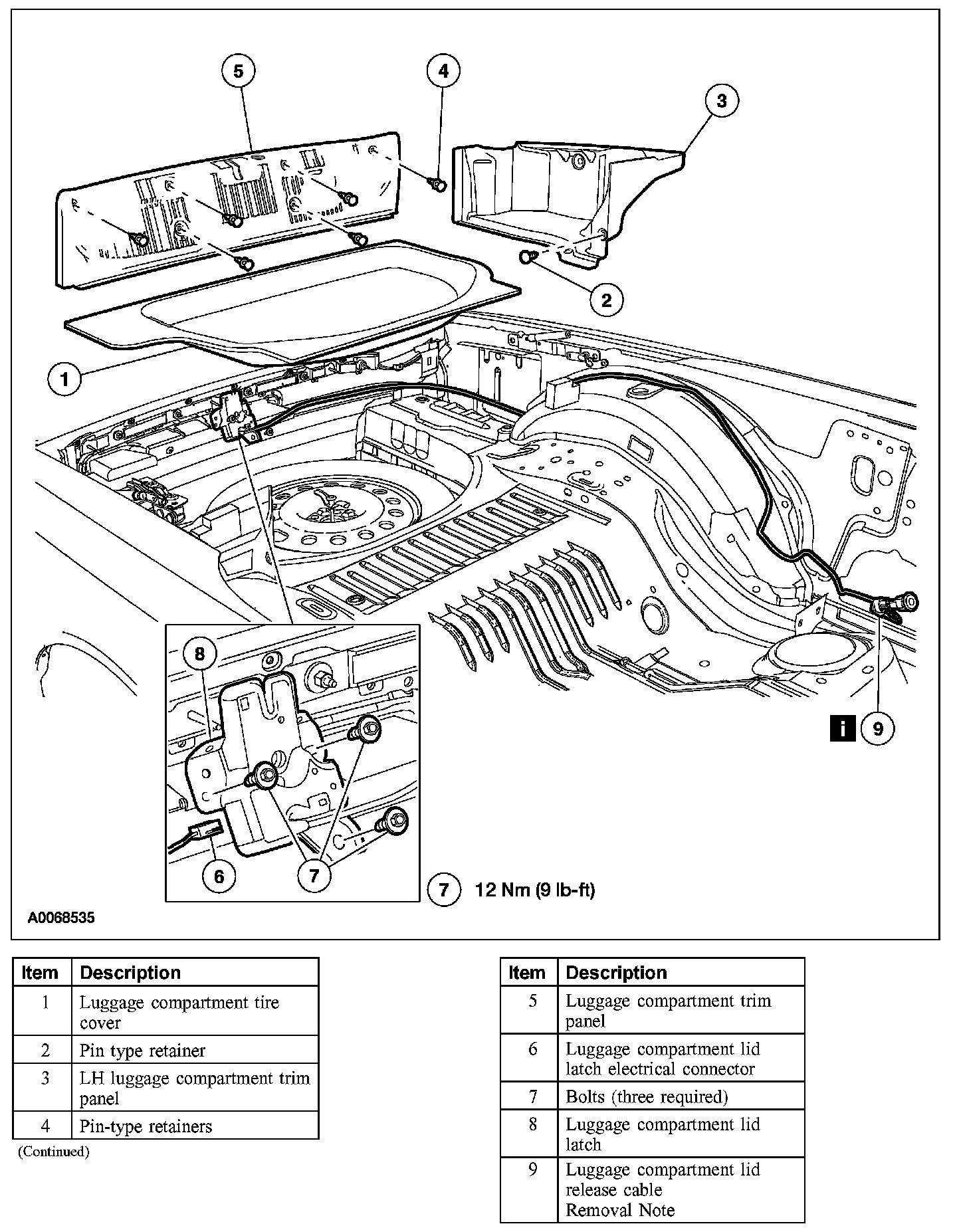

2. Remove the components in the order indicated in the illustration and table.

Item 9: Luggage Compartment Lid Release Cable Removal Note







1. Release the release cable locking tabs.

INSTALLATION
1. To install, reverse the removal procedure.
