Trim Panel: Service and Repair
INTERIOR TRIM PANELSTorx Bit, Safety Belt Bolt:

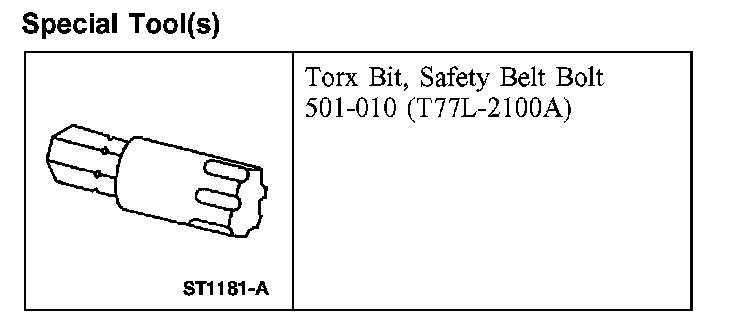

SPECIAL TOOL(S)
REMOVAL

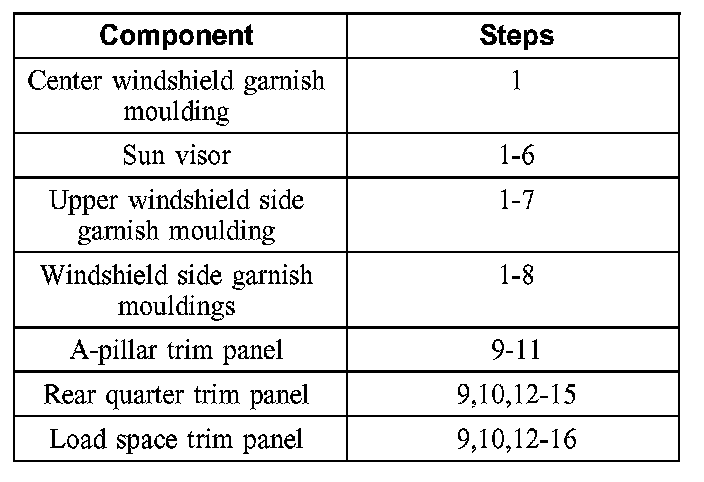

1. To remove individual components, only carry out the listed steps.
Part 1:
Part 2:

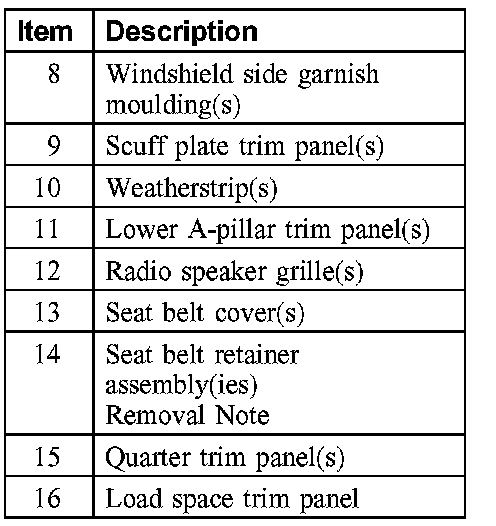

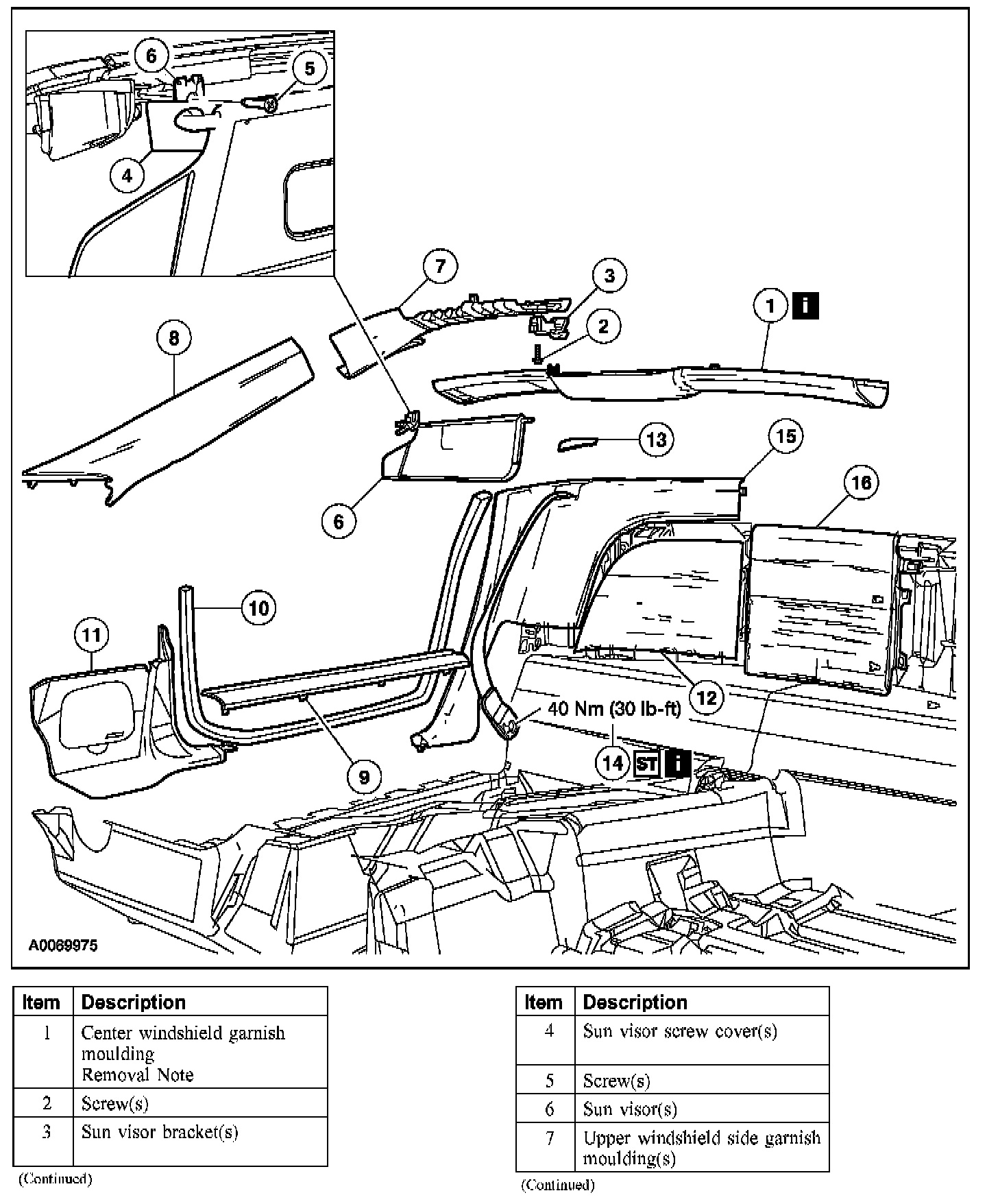

2. Remove the components in the order indicated in the illustration and table.
Item 1: Center Windshield Garnish Moulding Removal Note
1. Disconnect the electrical connector.

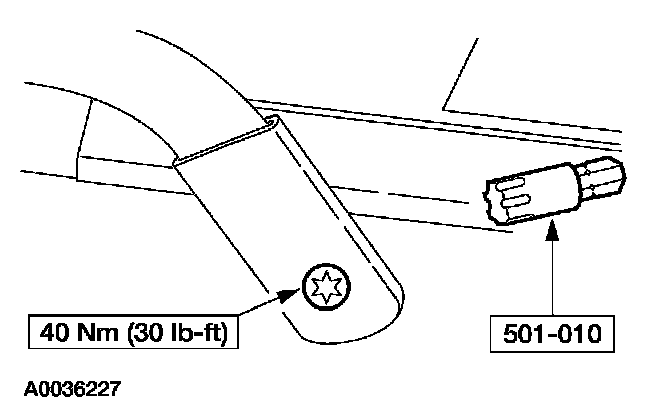

Item 14: Seat Belt Retainer Assembly(ies) Removal Note
1. Use the special tool to remove the seat belt retainer(s).
INSTALLATION
1. To install, reverse the removal procedure.
