Door Lock Cylinder: Service and Repair

DOOR LOCK CYLINDER

REMOVAL

NOTE:
- When a new lock cylinder is installed, the luggage compartment lid lock cylinder and ignition lock cylinder should be installed as a set. This eliminates carrying an extra key which will fit only one lock. If a new key is used, the new key code number is stamped on a metal tag attached to the key.
- Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

1. Remove the exterior door handle.

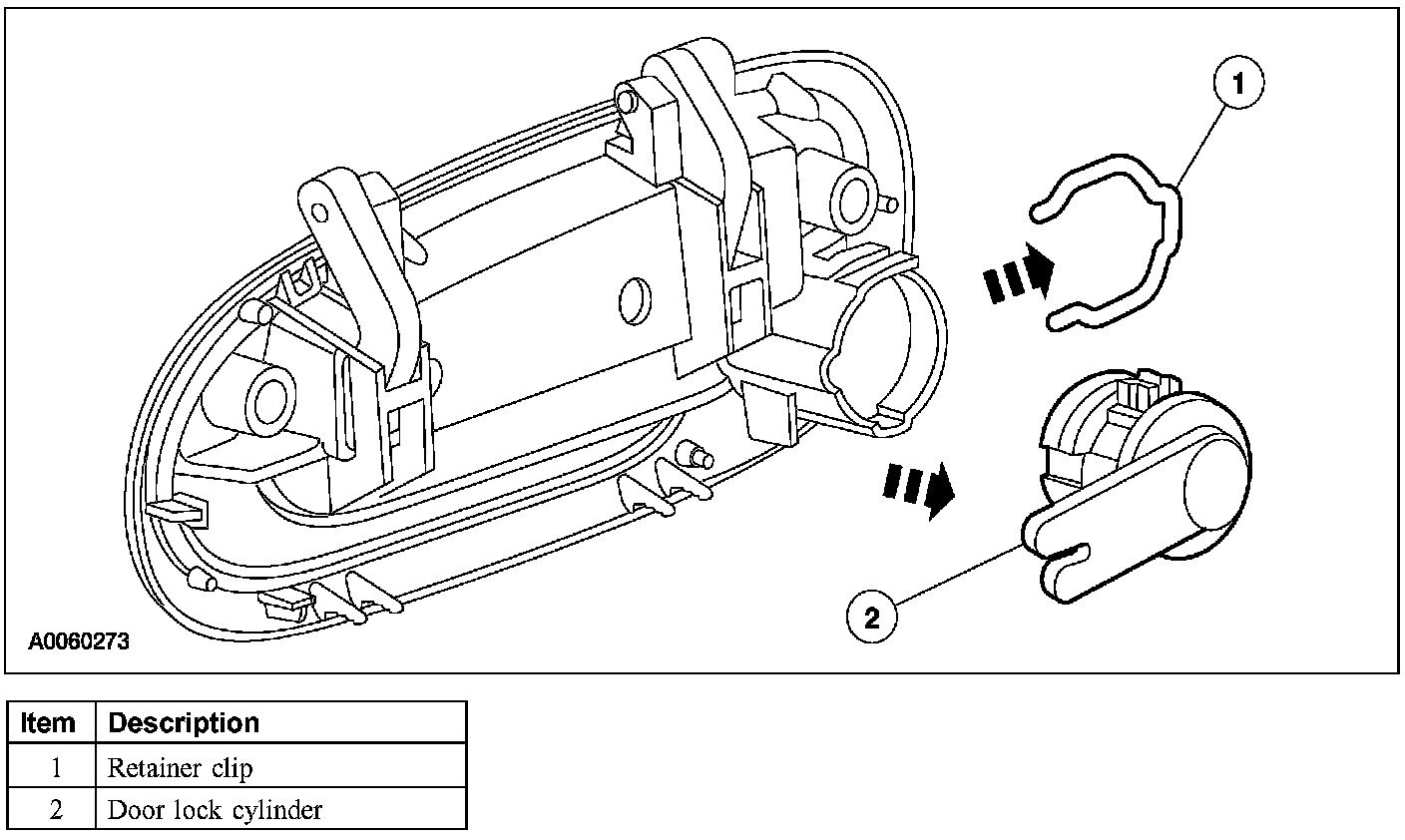

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure
