Connector Circuit Reference
>>

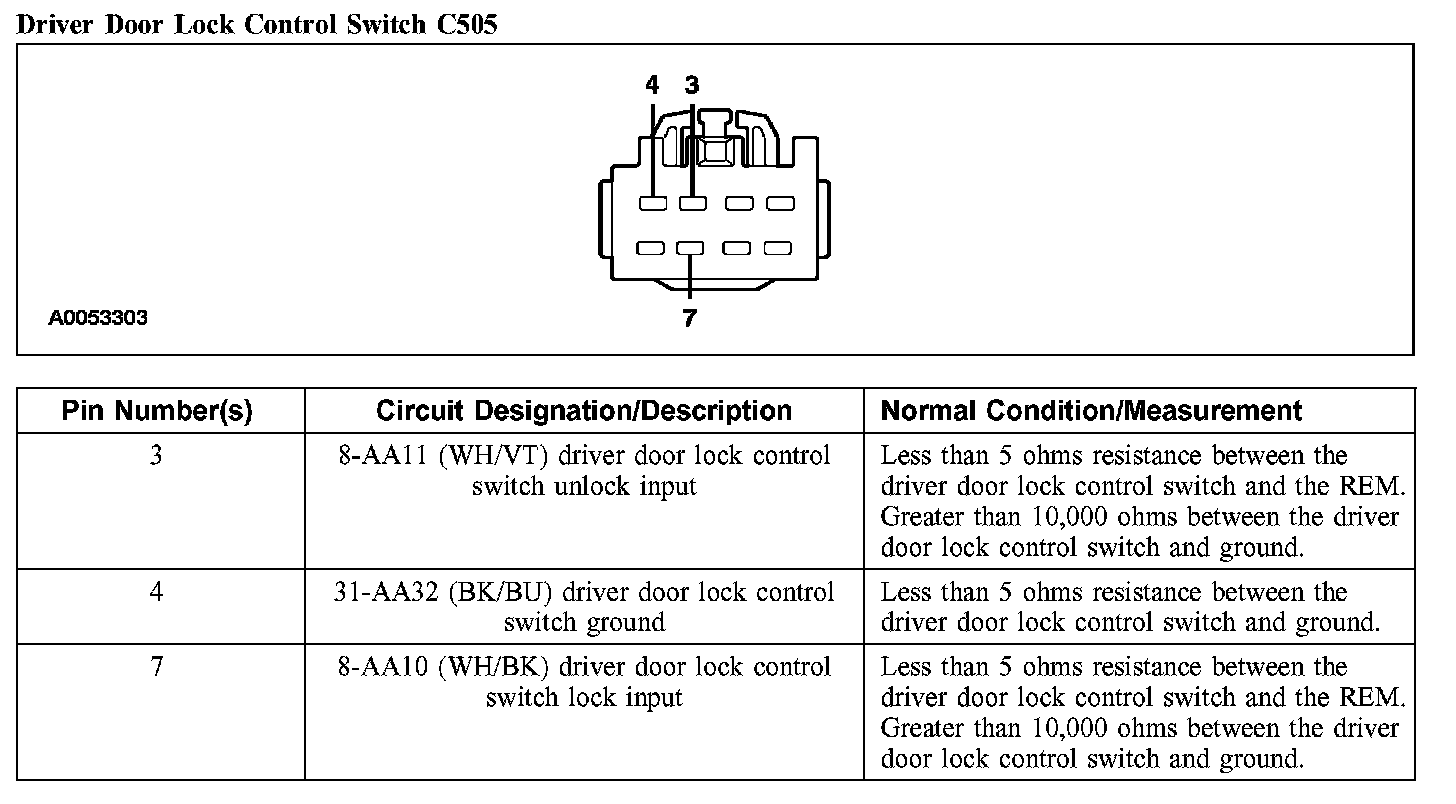

Driver Door Lock Control Switch C505
Driver Door Lock Control Switch C505
Driver Door Lock Control Switch C505:
