Connector Circuit Reference
>>

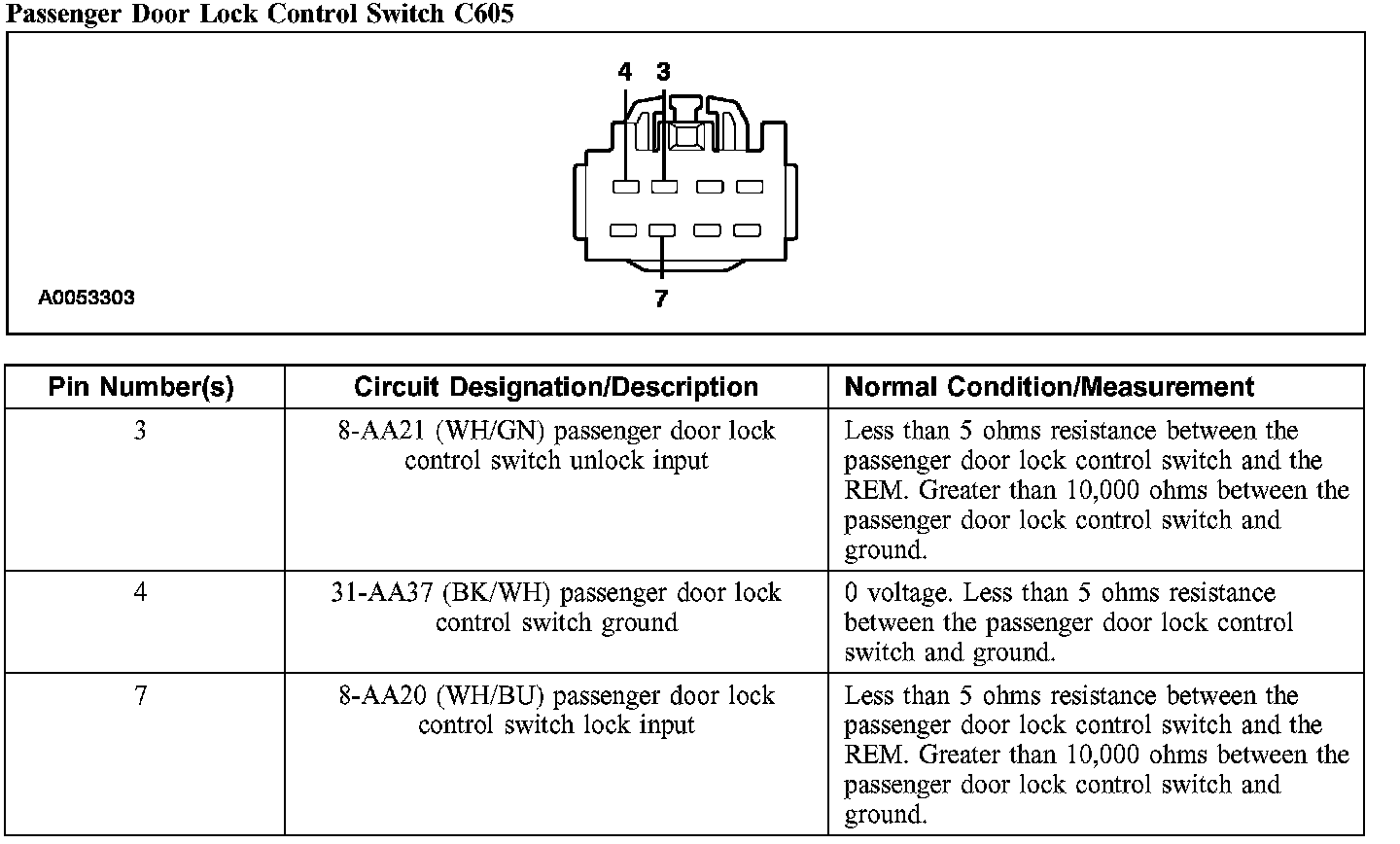

Passenger Door Lock Control Switch C605
Passenger Door Lock Control Switch C605
Passenger Door Lock Control Switch C605:
