Connector Circuit Reference
>>
Rear Electronic Module (Rem) C420B
Rear Electronic Module (Rem) C420B

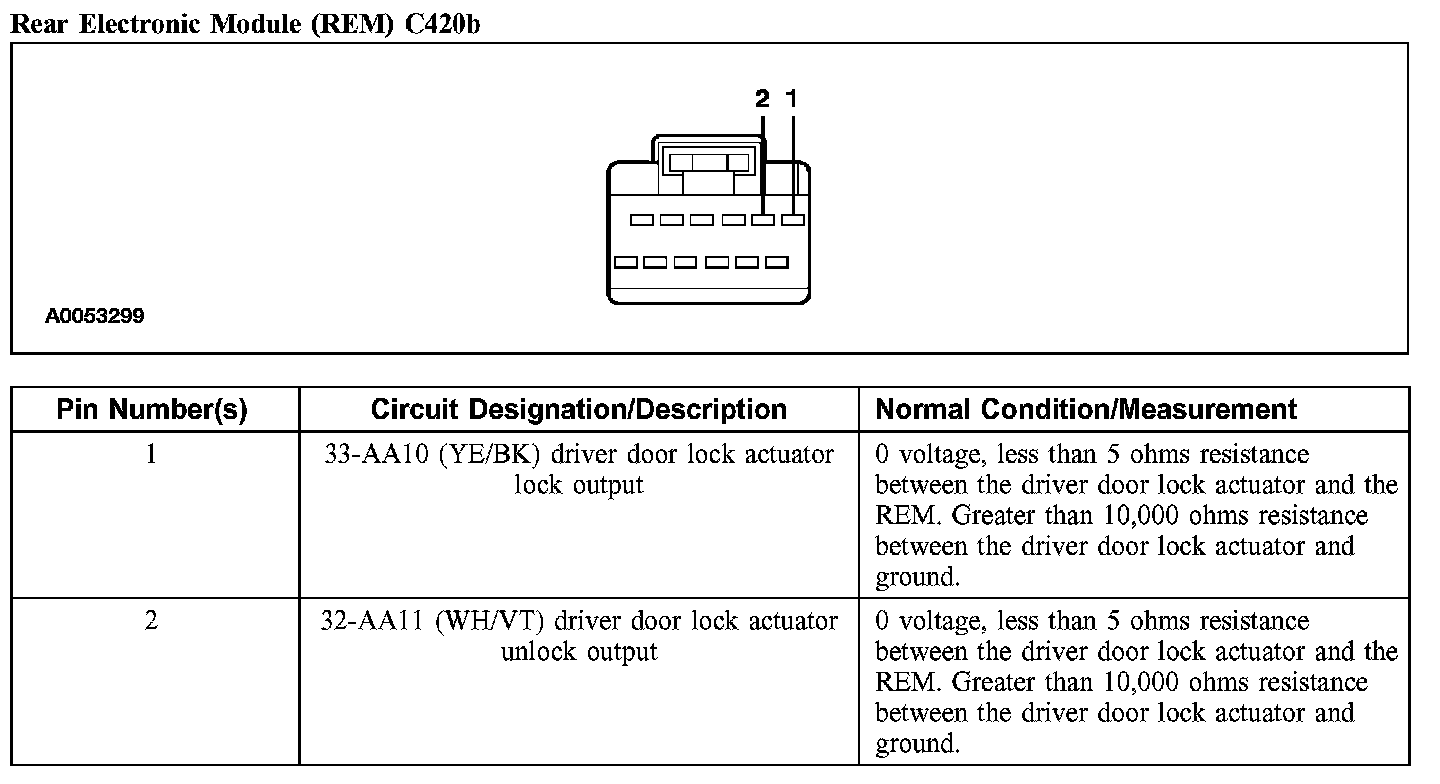

Rear Electronic Module (REM) C420b:
