Test K

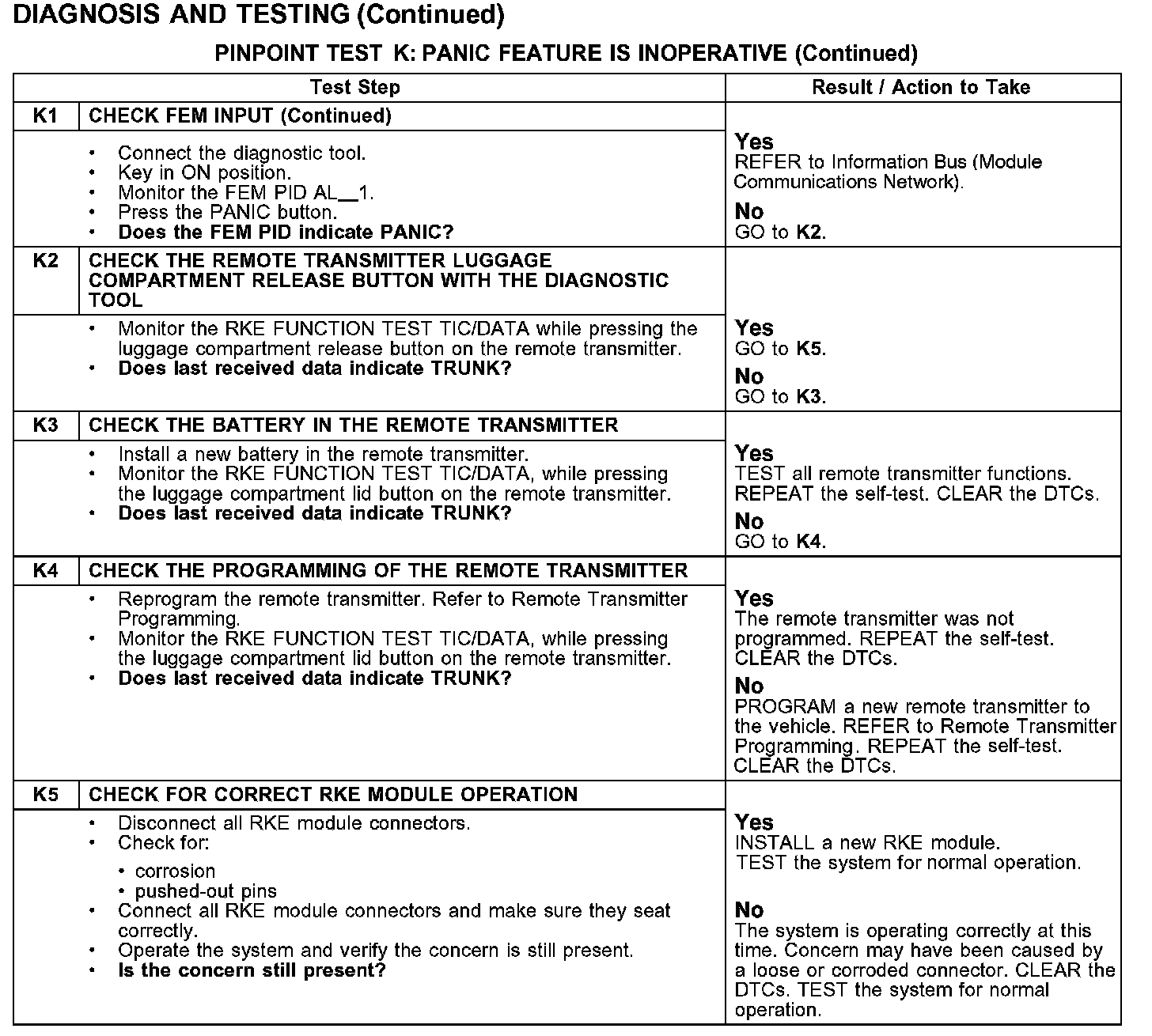

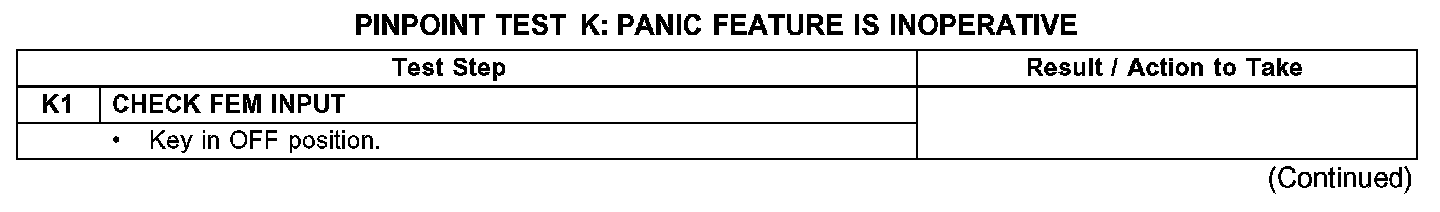

PINPOINT TEST K: PANIC FEATURE IS INOPERATIVE

Test K1:

Test K1-K5:

Normal Operation
When the panic button on the remote transmitter is pressed the remote keyless entry (RKE) module receives the signal from the remote transmitter then sends the information via the communication network to the front electronic module (FEM) which supplies power to activate the horn.

Possible Causes
- remote transmitter battery
- remote transmitter
- remote transmitter programming
- FEM
- RKE module
