Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Convertible Top Lower Relay C4064

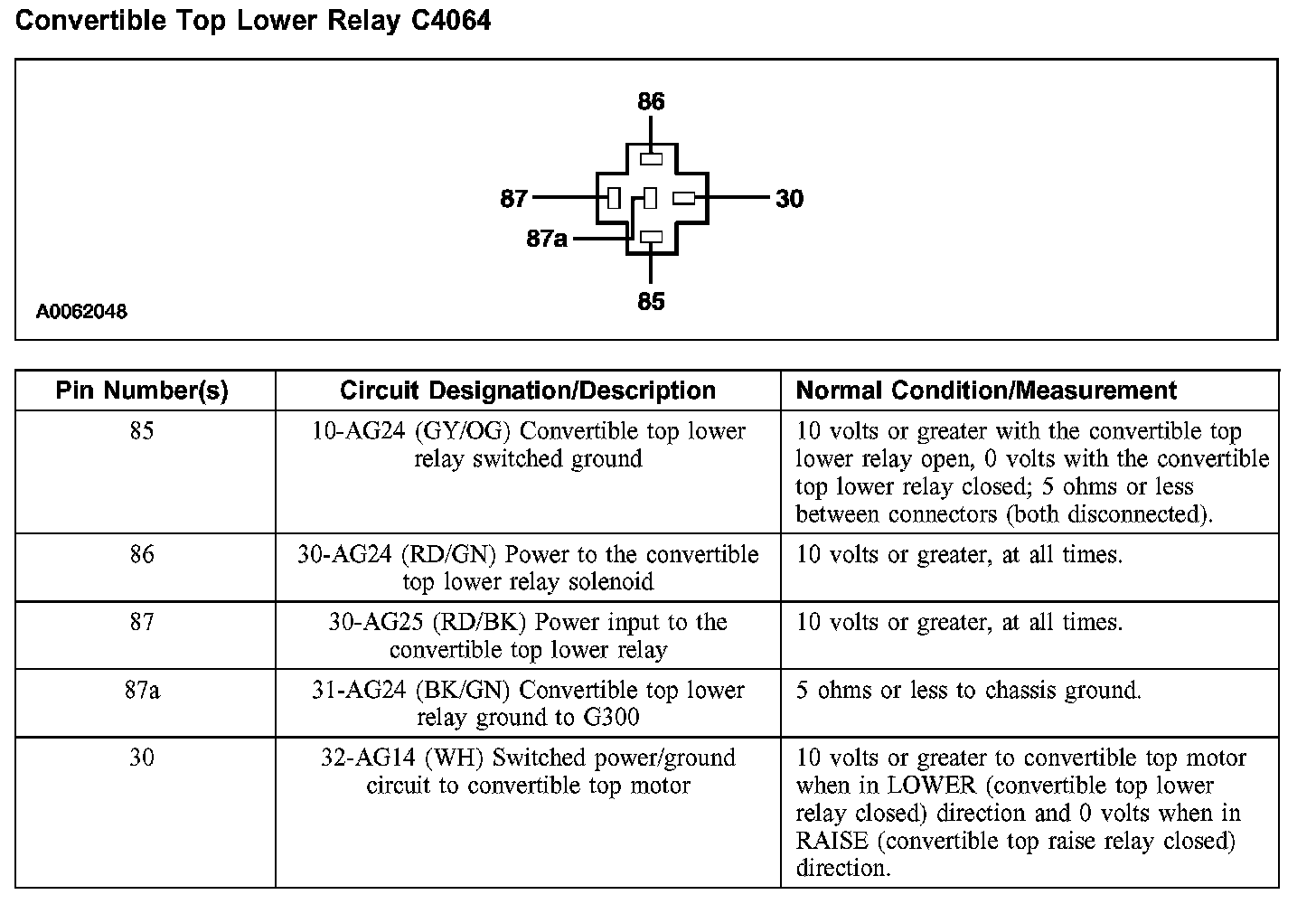

Convertible Top Lower Relay C4064

Convertible Top Lower Relay C4064:
