Diesel Data: Automotive Repair
Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Convertible Top Motor C4062

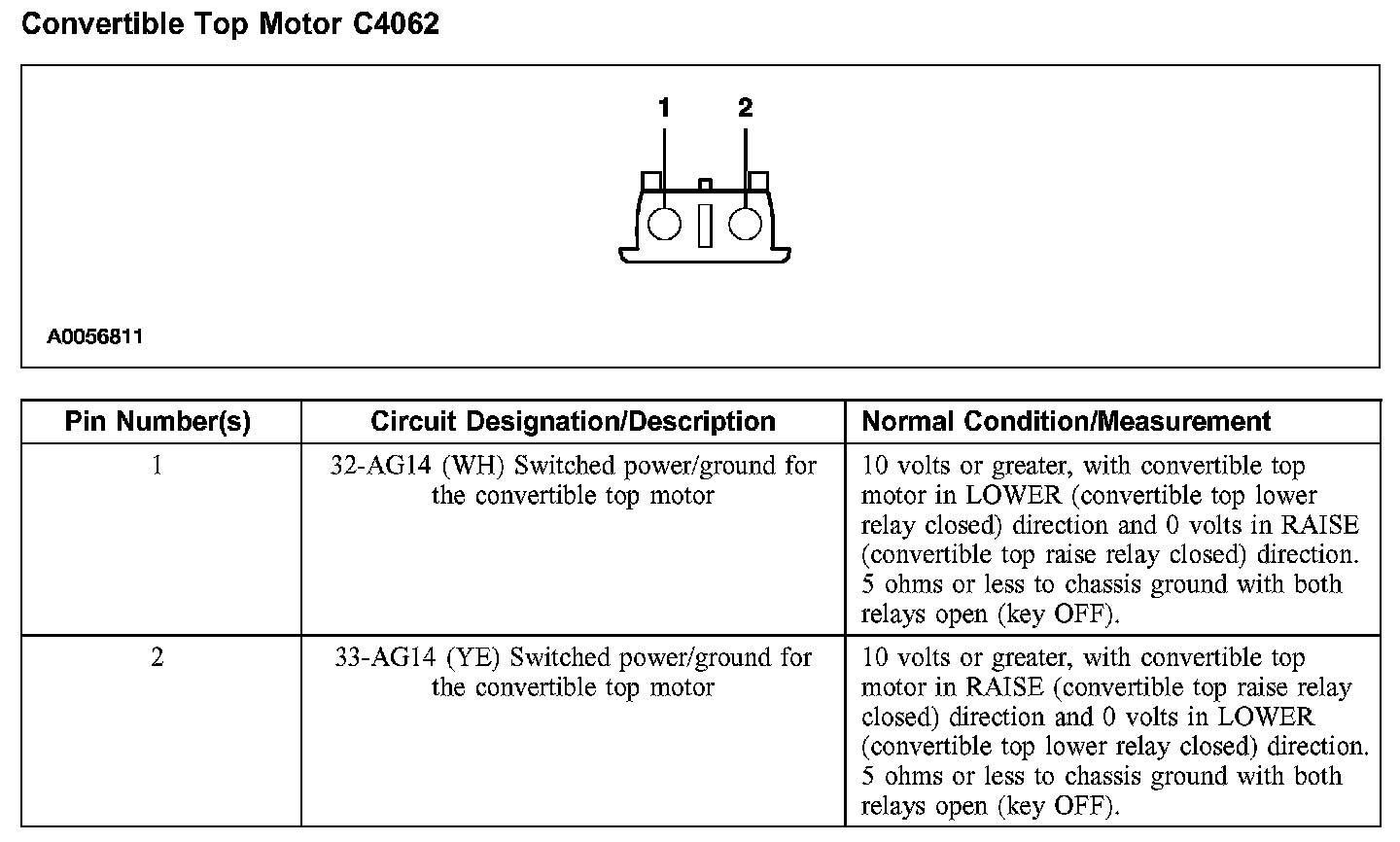

Convertible Top Motor C4062

Convertible Top Motor C4062:
