Seat Cushion: Service and Repair

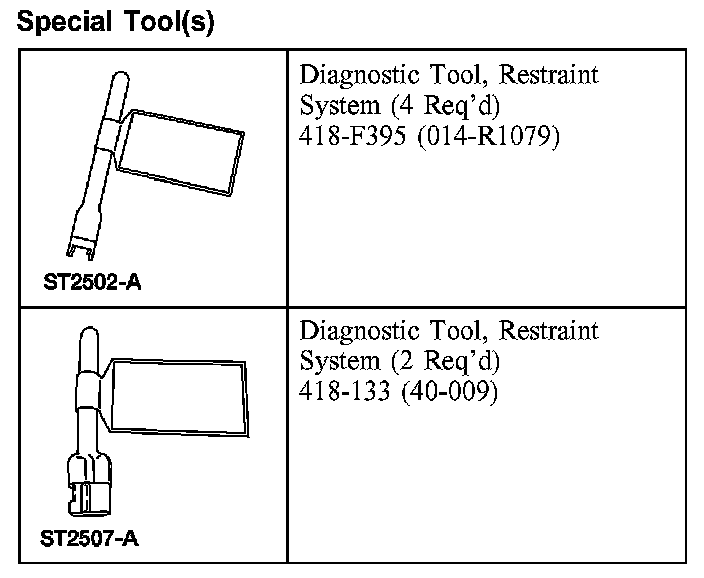

FRONT SEAT CUSHIONSpecial Tool(s):
SPECIAL TOOL(S)
DISASSEMBLY
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
NOTE:
- If a side air bag deployment took place, the seatback pad, trim cover and side air bag module must be replaced. The seatback frame should be replaced if necessary.
- Driver seat is shown, passenger seat is similar.
1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side impact sensors are attached to the rocker panels, near the seats.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Deactivate the supplemental restraint system (SRS).
3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
Remove the front seat.
Part 1:
Part 2:
Part 1:
Part 2:

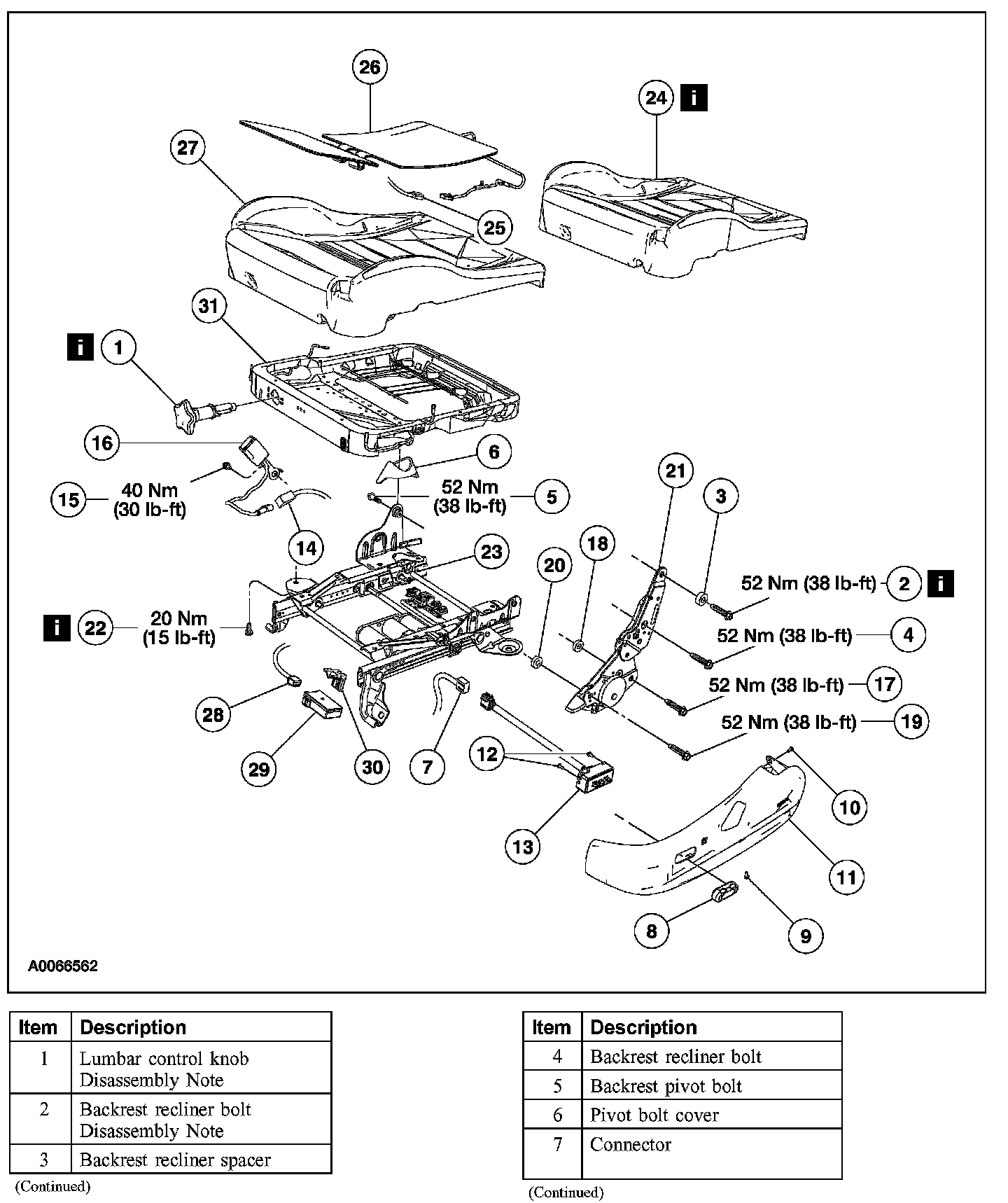

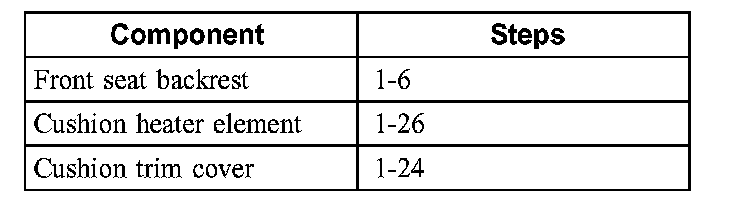

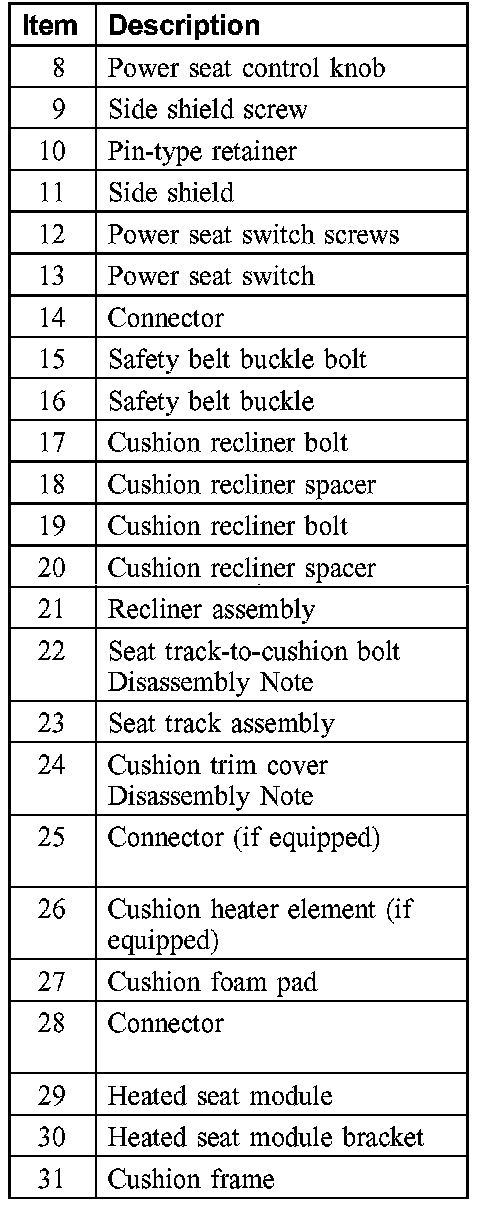

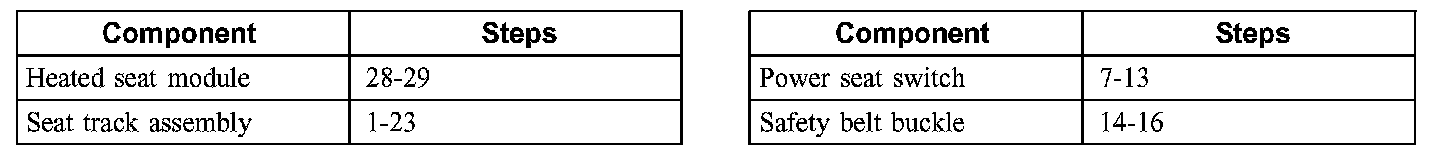

4. Disassemble the components in the order listed in the illustration and table. To remove individual components, carry out only the given steps.
Item 1: Lumbar Control Knob Disassembly Note

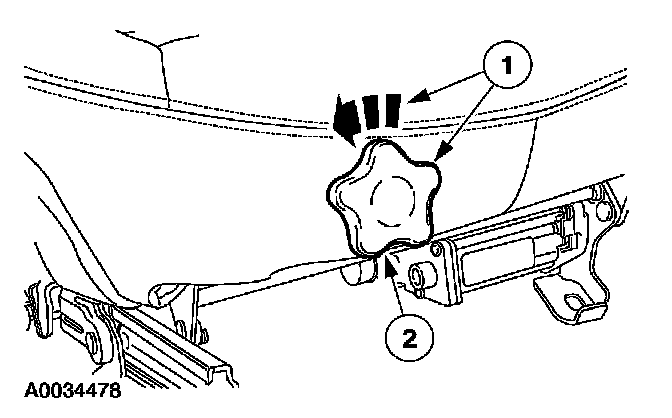

1. Remove the lumbar control knob.
1 Turn the lumbar control knob counterclockwise until it stops.
2 Remove the lumbar control knob by pulling it from the adjuster shaft.
2. NOTE:
- Access is from the inside of the seat cushion pan.
- The two locking tabs on the lumbar control body are different in size.
Rotate the lumbar control body to align the locking tabs with the correct size cutout. Remove the lumbar control.
3. NOTE: The lumbar adjuster must be turned counterclockwise to stop to perform this step.

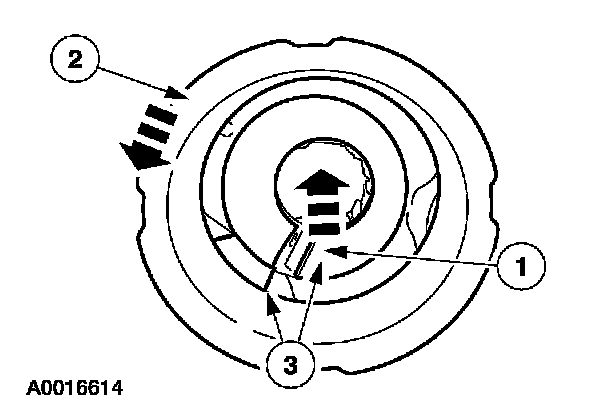

Release the manual lumbar adjustment screw.
1 From inside the lumbar adjustment mechanism, push the screw stop in toward the center.
2 While pushing the screw stop toward the center, rotate the lumbar adjustment mechanism counterclockwise.
3 The screw stop will pass clear of the internal stop, releasing the manual lumbar adjustment screw.

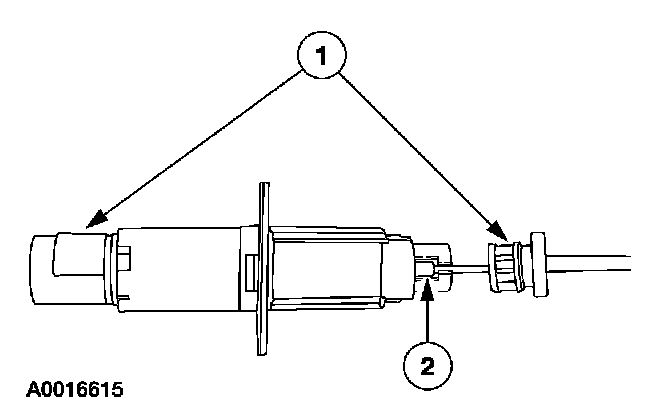

4. Remove the manual lumbar cable.
1 Continue turning the manual lumbar mechanism counterclockwise until the cable support comes out.
2 Push the screw out enough to remove the cable end.
5. NOTE: Note the lumbar cable routing before disassembly, for assembly.
Route the lumbar cable from between the seat cushion and the seat track.
- Loosen the seat track to seat cushion pan bolts, if necessary.
Item 2: Backrest Recliner Bolt Disassembly Note

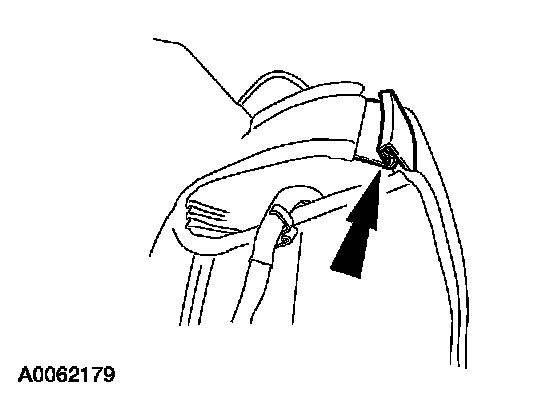

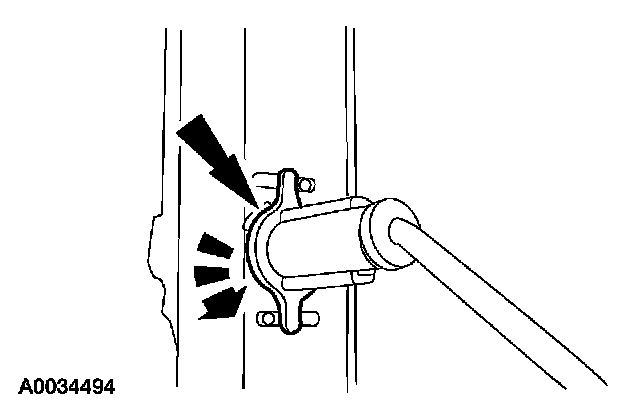

1. Release the backrest trim cover J-clip. Invert the backrest trim cover to expose the backrest bolts.
Item 22: Seat Track-to-Cushion Bolt Disassembly Note

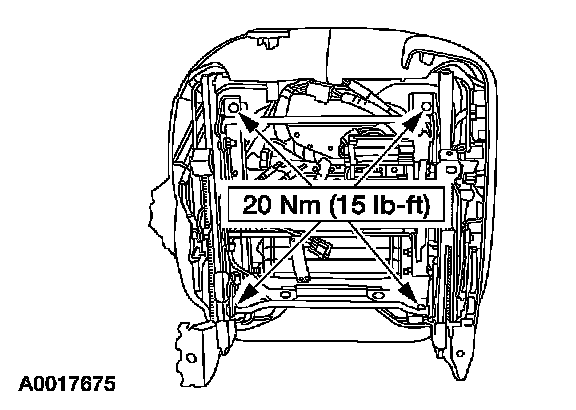

1. Remove the four seat track-to-cushion bolts.
Item 24: Cushion Trim Cover Disassembly Note

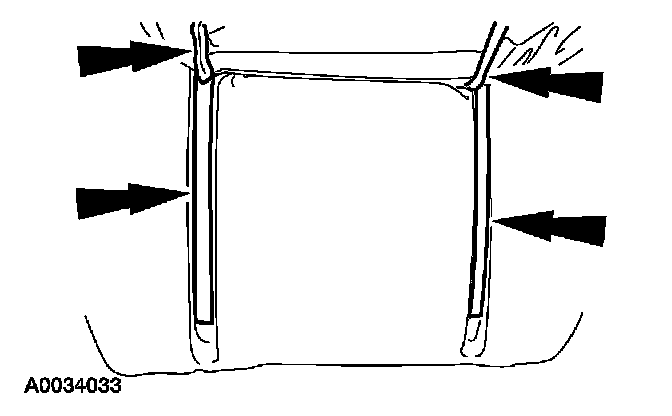

1. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.
Separate the hook and loop fasteners.
ASSEMBLY
1. NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.
To assemble, reverse the disassembly procedure.
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
Install the front seat.
3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Reactivate the supplemental restraint system (SRS).
4. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
