Passenger Heated Seat Module C329

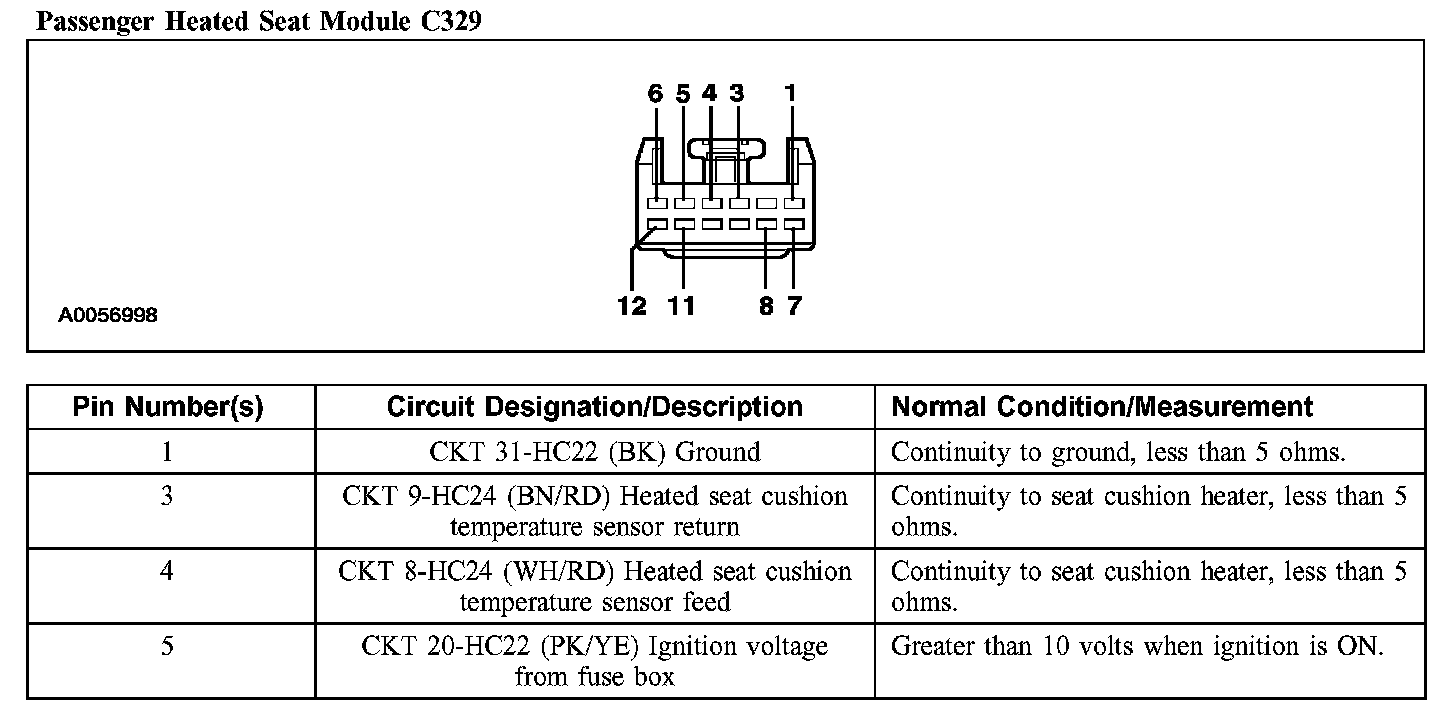

Passenger Heated Seat Module C329, Part 1:

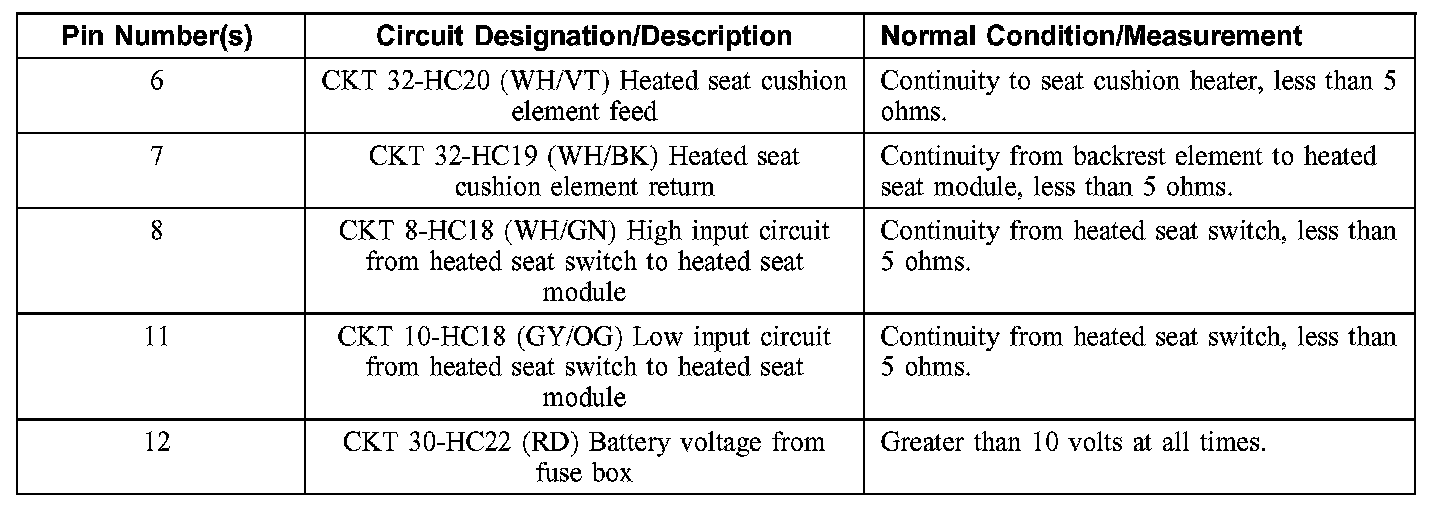

Passenger Heated Seat Module C329, Part 2:
