Test J

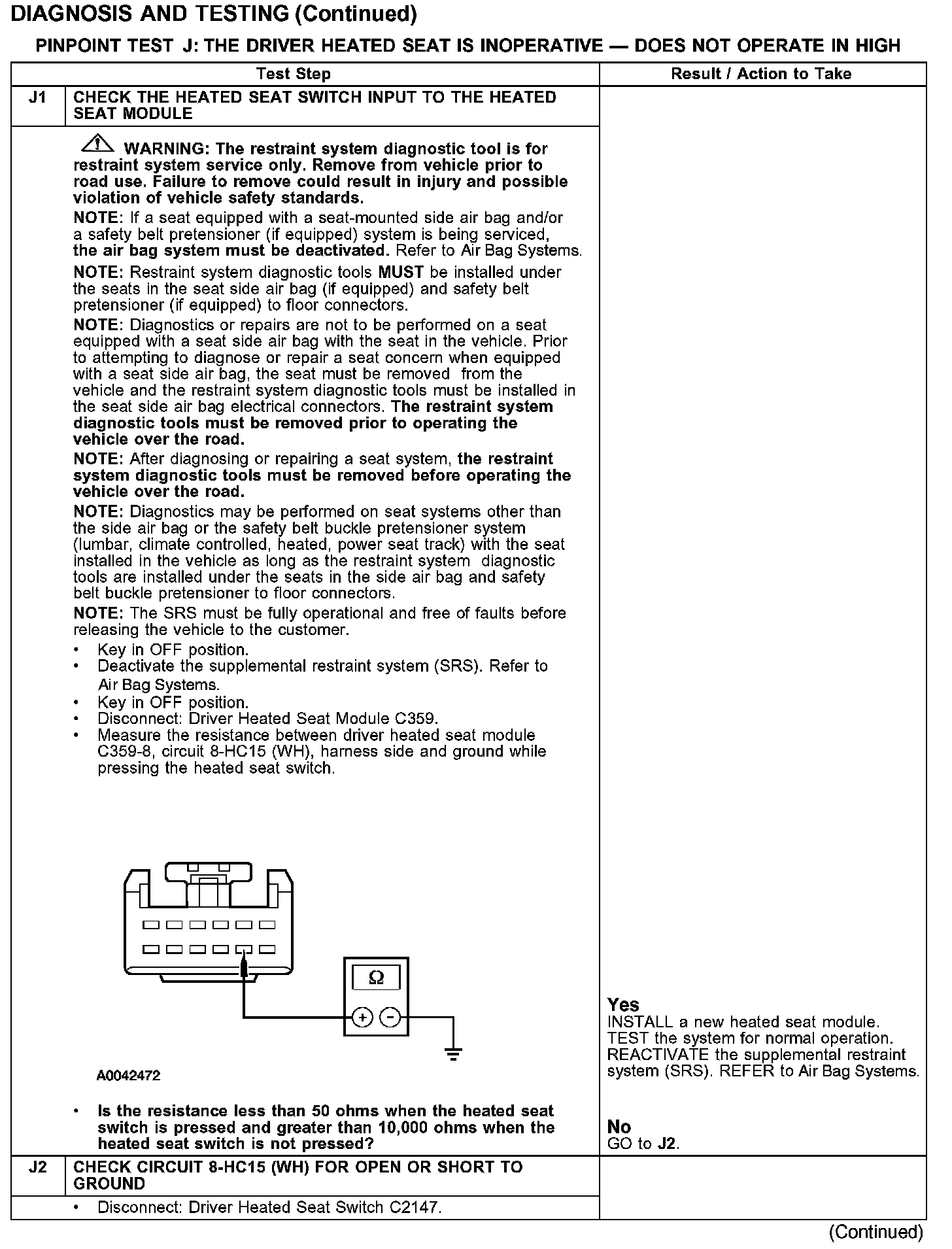

PINPOINT TEST J: THE DRIVER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN HIGHTest J1-J2:

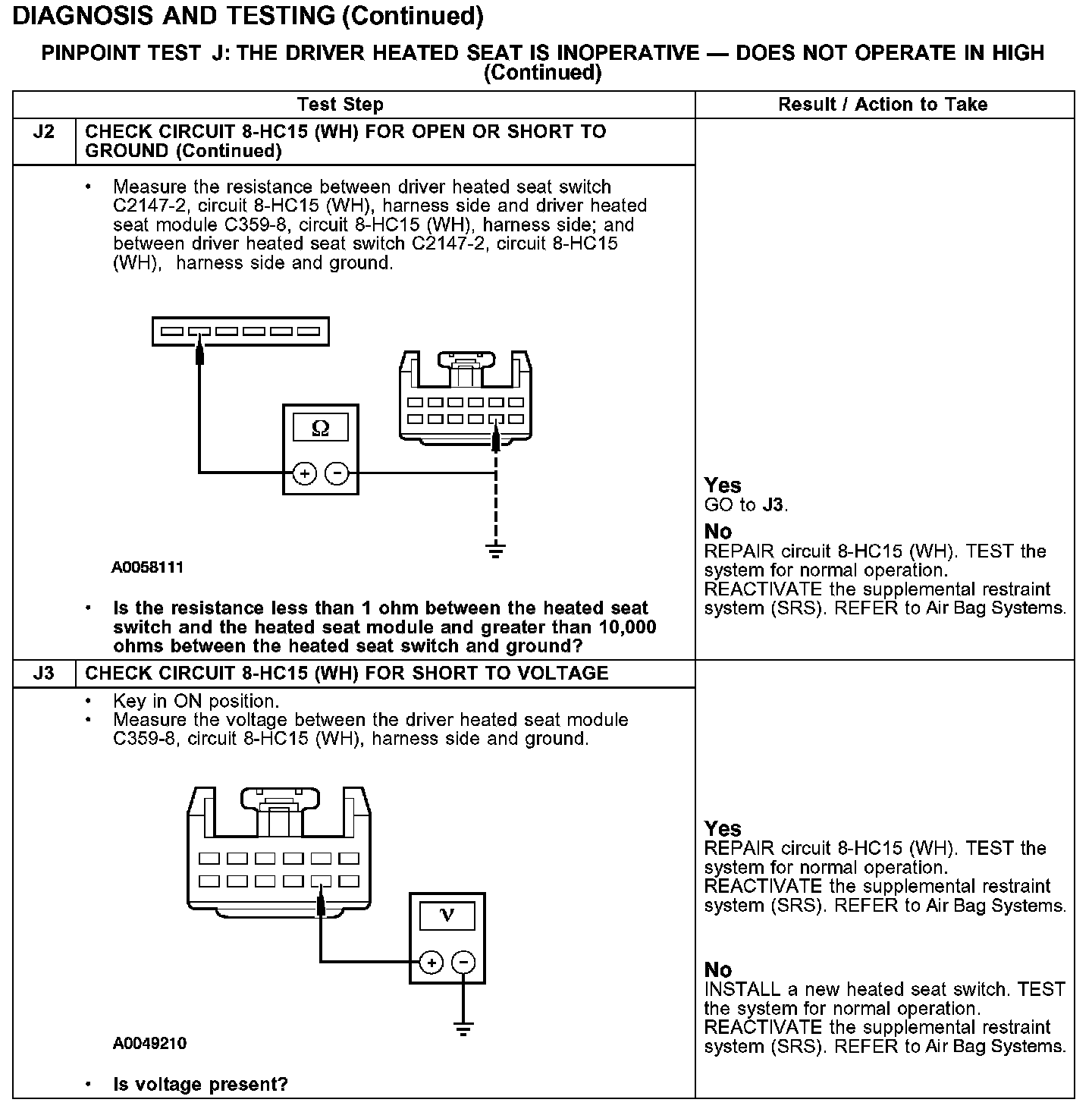

Test J2-J3:
Normal Operation
The heated seat switch uses circuit 8-HC15 (WH) for the high setting input to the heated seat module.
Possible Causes
The driver heated seat inoperative and does not operate in high can be caused by:
- wiring, terminals, or connectors.
- a faulty heated seat switch.
- a faulty heated seat module.
