Test K

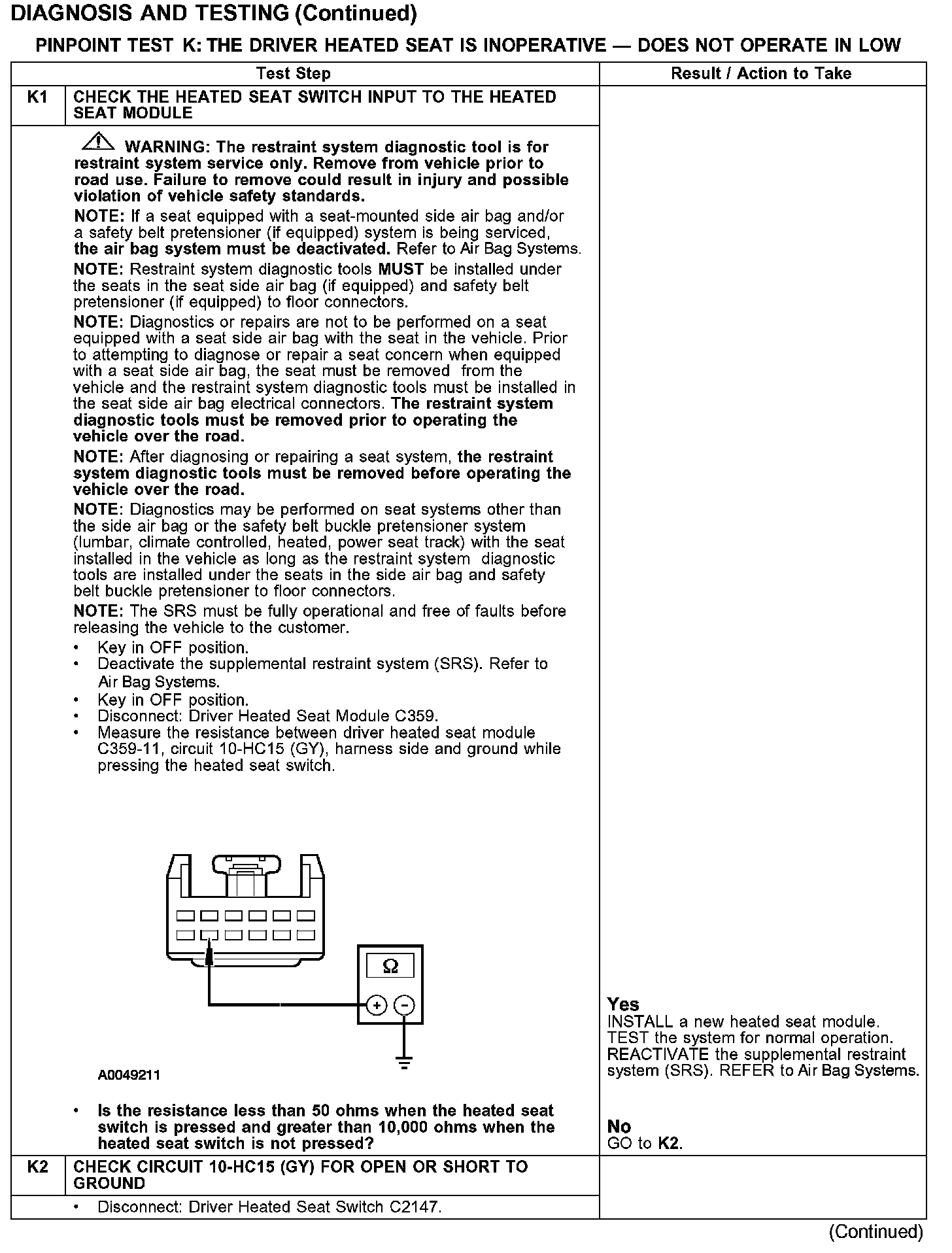

PINPOINT TEST K: THE DRIVER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN LOW

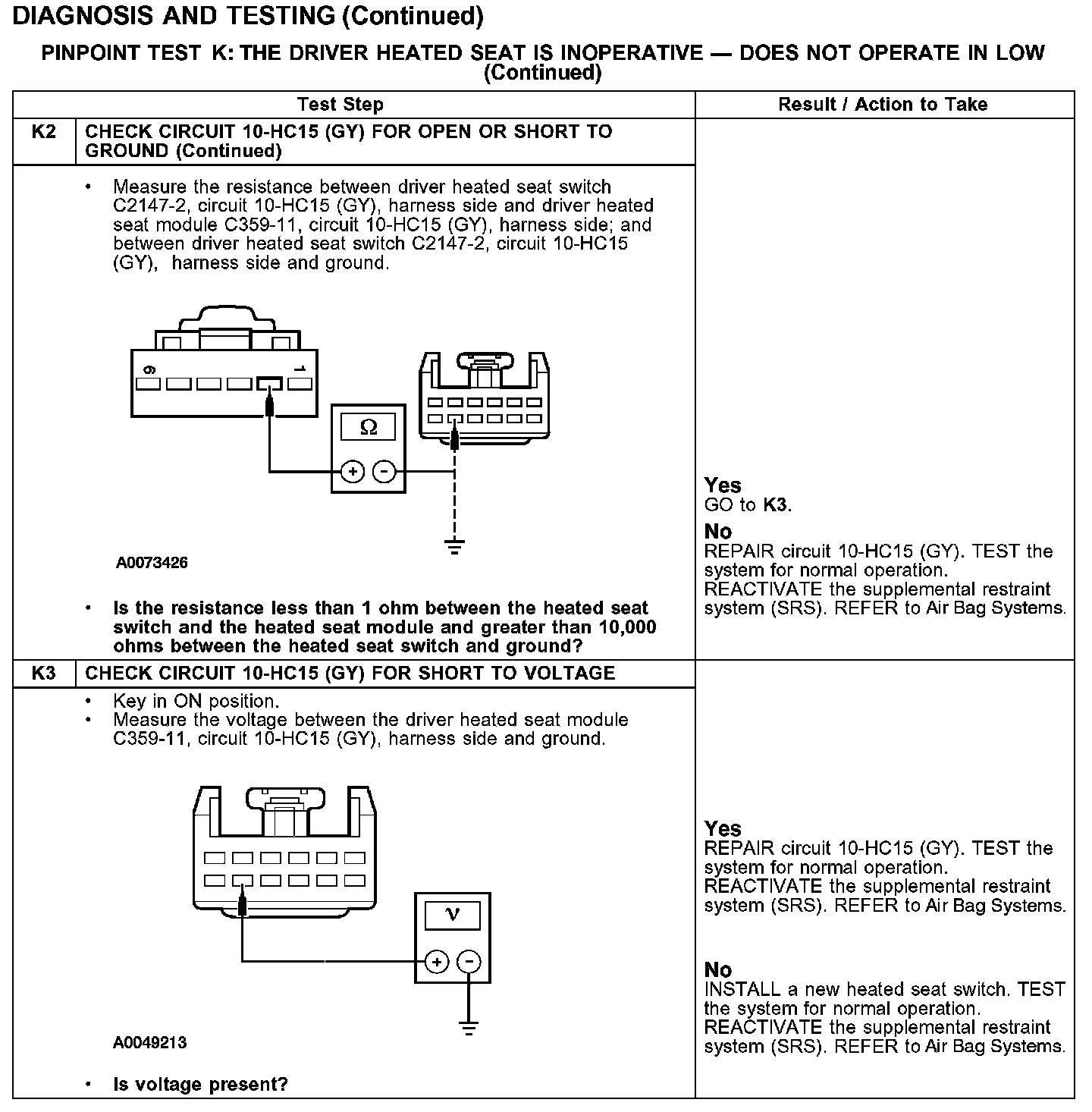

Test K1-K2:






Test K2-K3:






Normal Operation
The heated seat switch uses circuit 10-HC15 (GY) for the low setting input to the heated seat module.

Possible Causes
A driver heated seat inoperative and does not operate in low can be caused by:
- wiring, terminals, or connectors.
- a faulty heated seat switch.
- a faulty heated seat module.
