Electronic Brake Control Module: Service and Repair
Anti-Lock Brake System (ABS) Module1. Disconnect the battery.

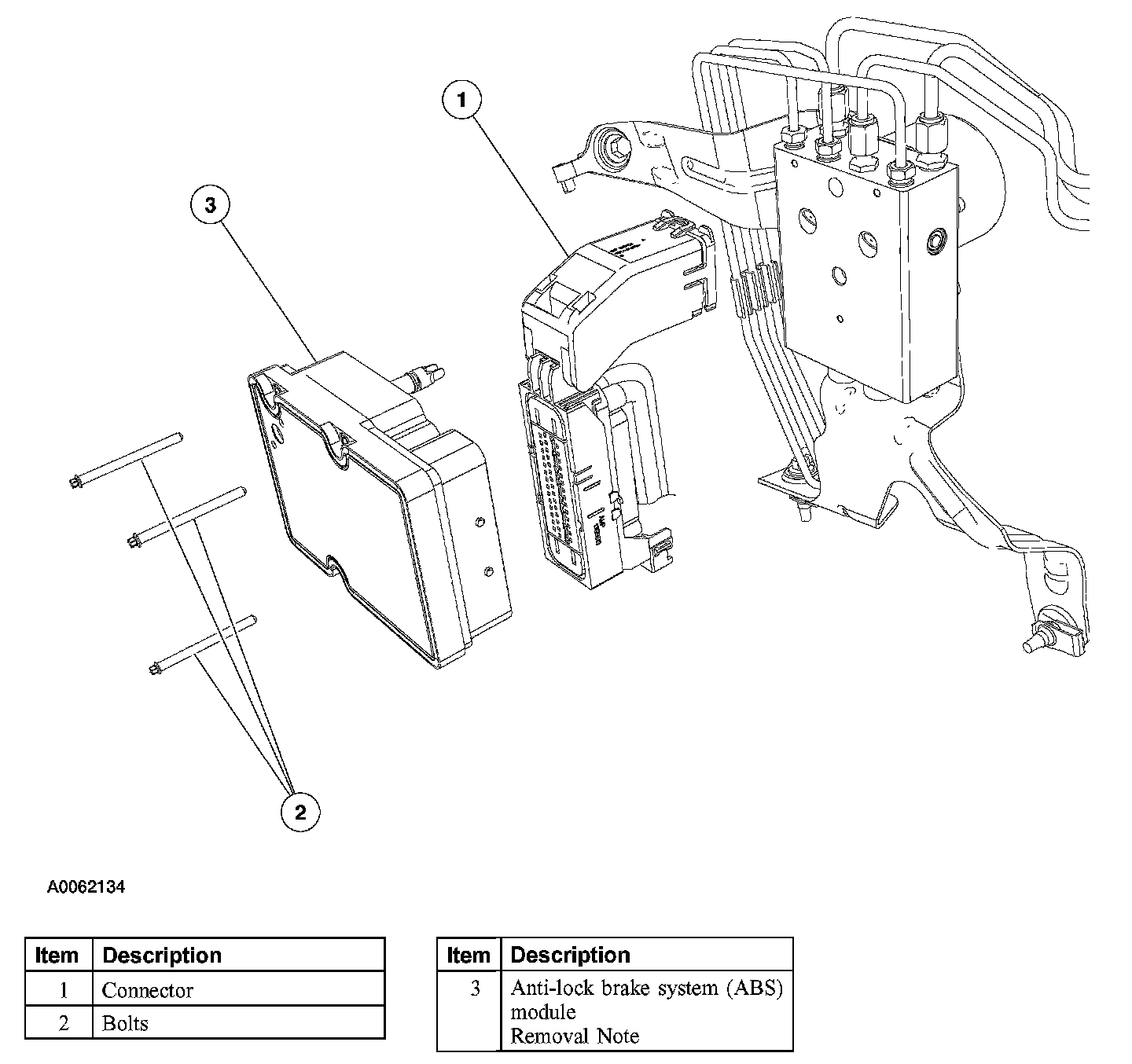

Part 1 Of 2:
Part 2 Of 2:
2. Remove the parts in the order indicated in the above illustration and table.
3. To install, reverse the removal procedure.
Item 3: Anti-Lock Brake System (ABS) Module
Removal Note

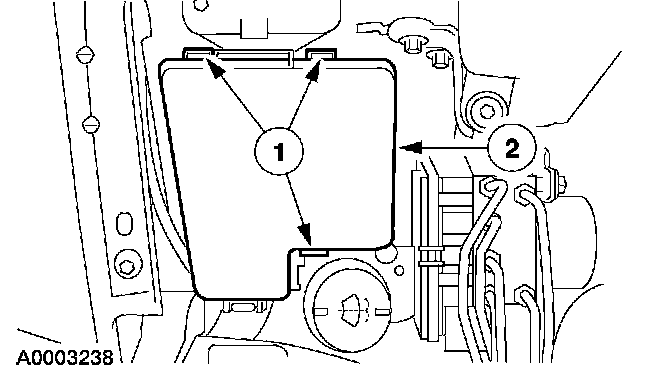

1. Position the battery junction box (BJB) aside.
1. Release the clips.
2. Position the BJB aside.

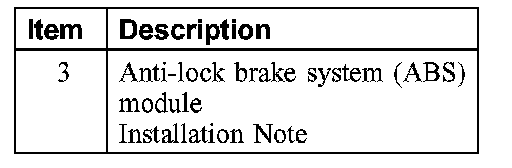

Item 3: Anti-Lock Brake System (ABS) Module Installation Note
1. Use the diagnostic tool to reconfigure the ABS module.
