Brake Pedal Assy: Service and Repair

Brake Pedal
1. Remove the steering column.

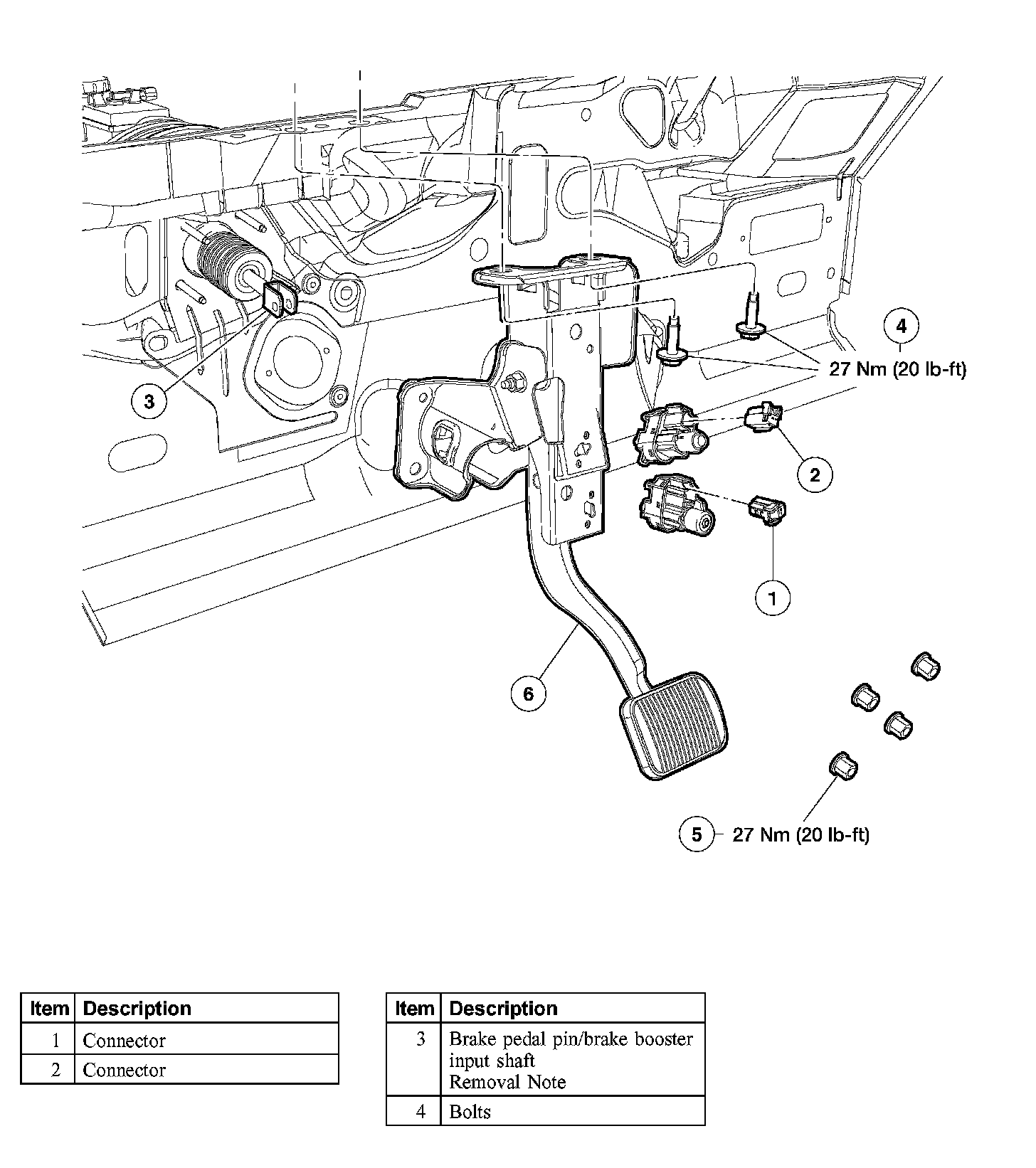

Part 1 Of 2:

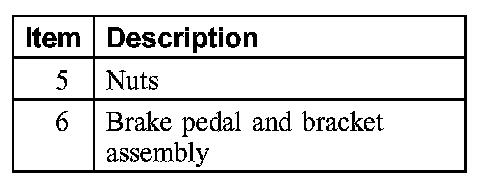

Part 2 Of 2:





2. Remove the components in the order indicated in the above illustration and table.
3. To install, reverse the removal procedure.

Item 3: Brake Pedal Pin/Brake Booster Input Shaft Removal Note
1. Disconnect the brake pedal pin from the brake booster input shaft.
1. Remove the brake pedal pin clip.
2. Disconnect the booster input shaft from the brake pedal pin.
