Sensor and Sensor Ring, Rear

Rear Wheel Speed Sensor and Sensor Ring

NOTE: Clean off all dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.

1. With the vehicle in NEUTRAL, position on a hoist.

Part 1 Of 2:

Part 2 Of 2:

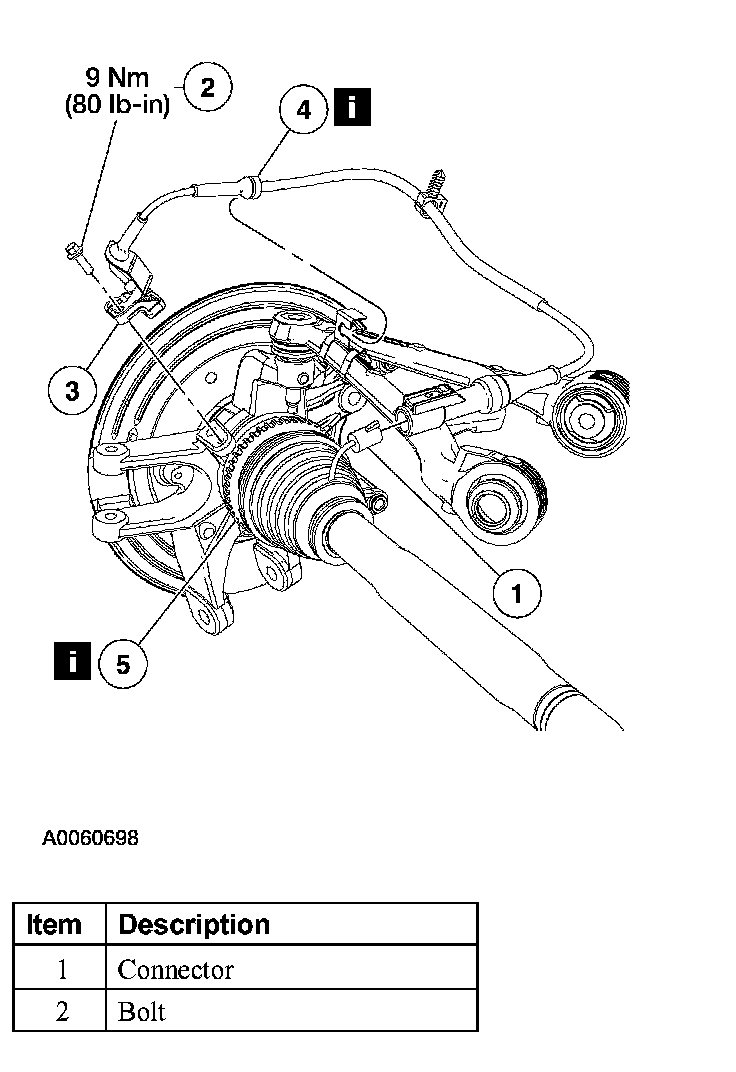

2. Remove the parts in the order indicated in the above illustration and table.

3. To install, reverse the removal procedure.

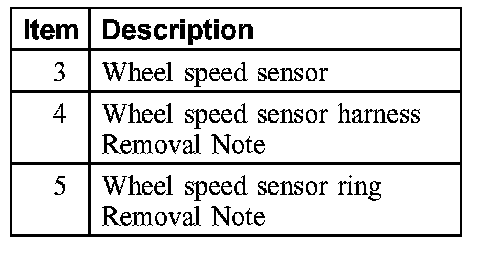

Item 4: Wheel Speed Sensor Harness Removal Note

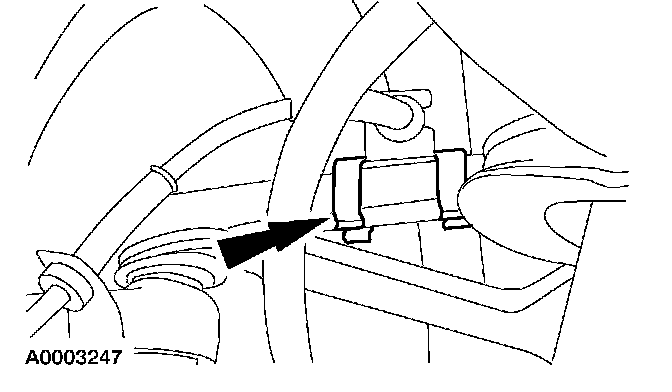

1. Remove the rear anti-lock brake sensor harness from the upper control arm clip.

Item 5: Wheel Speed Sensor Ring Removal Note
1. The wheel speed sensor ring is not serviceable and must be replaced as part of the rear halfshaft assembly.
