Home
>>
Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
>>

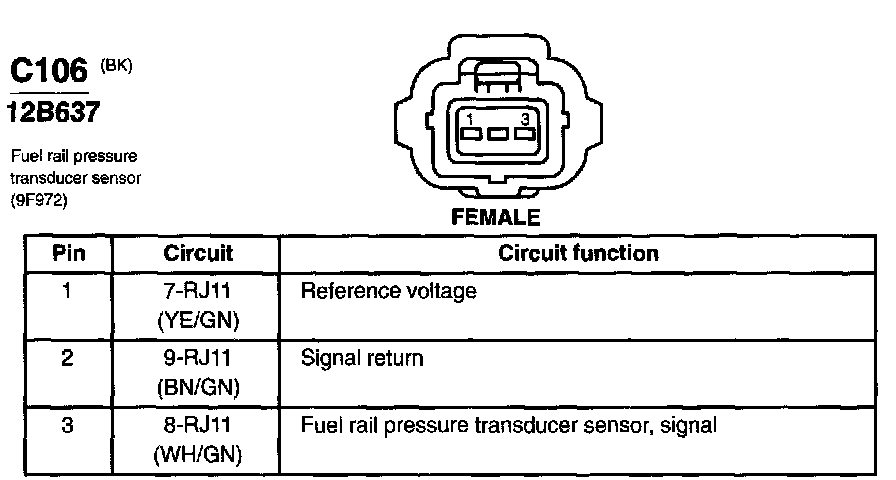

Fuel Rail Pressure Transducer Sensor
Fuel Rail Pressure Transducer Sensor
