Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 13 >> 13-1 to 13-4

13-1 to 13-4

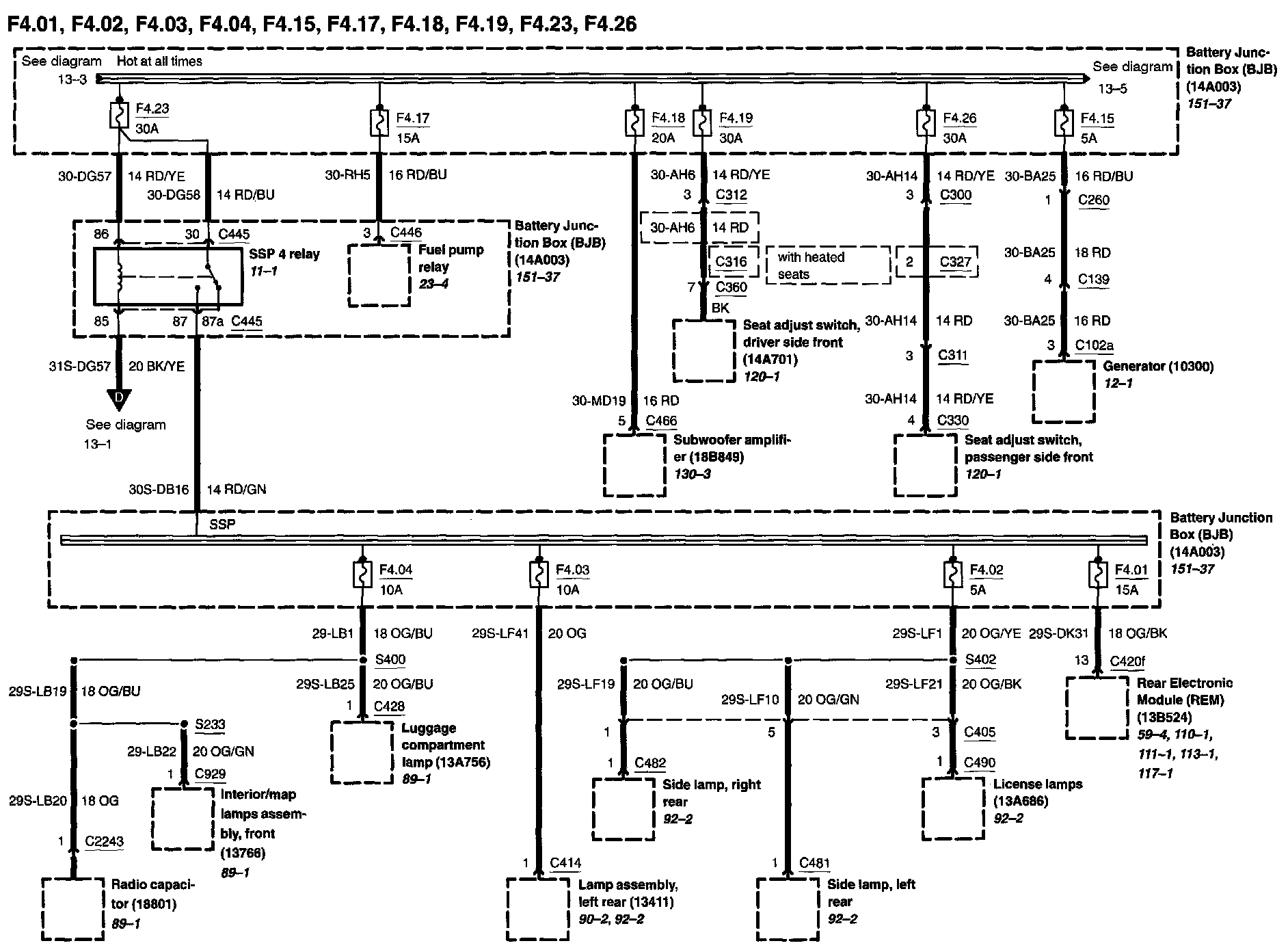

13-1:

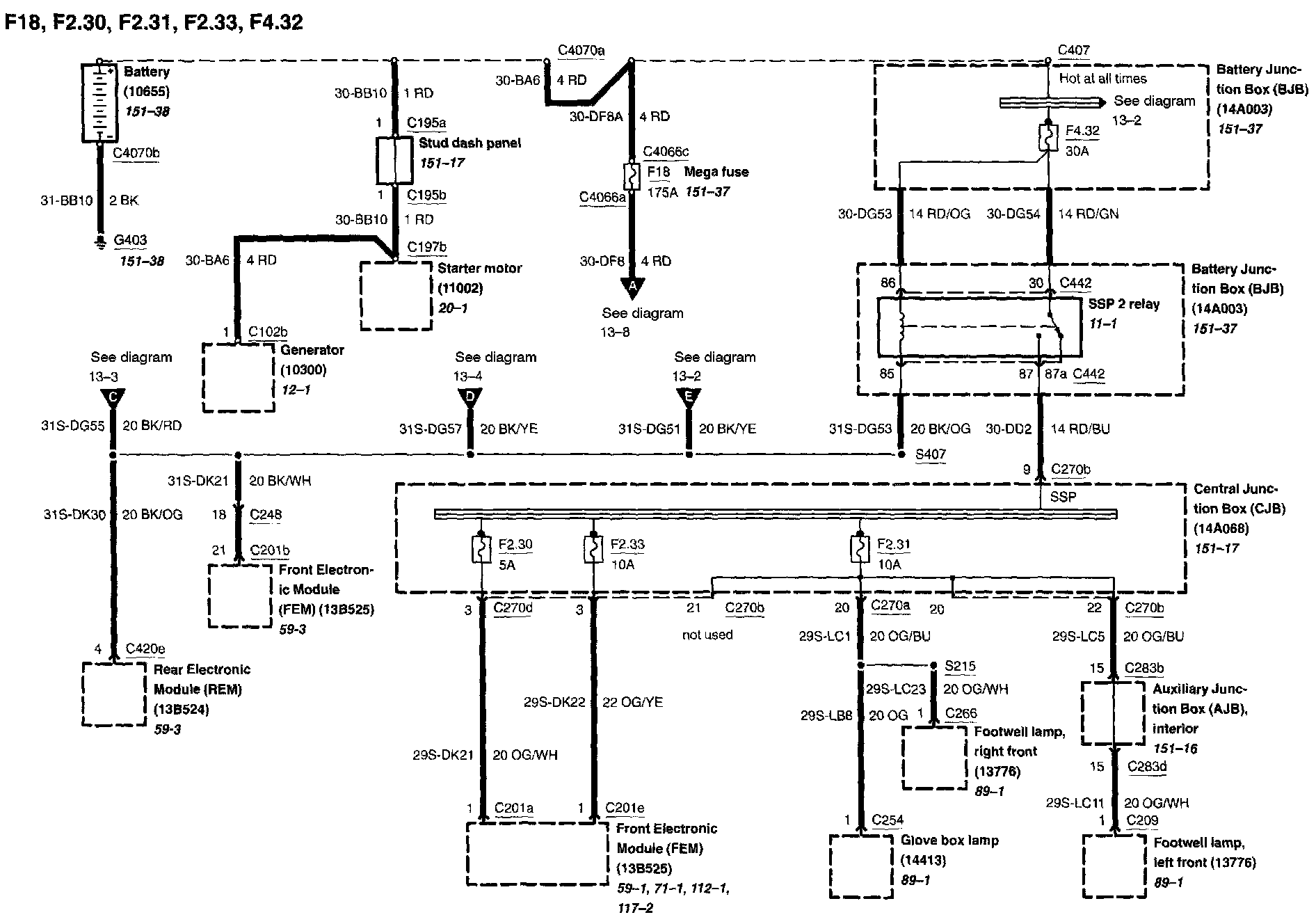

13-2:

13-3:

13-4:
