Automatic Transmission/Transaxle

Disassembled Views

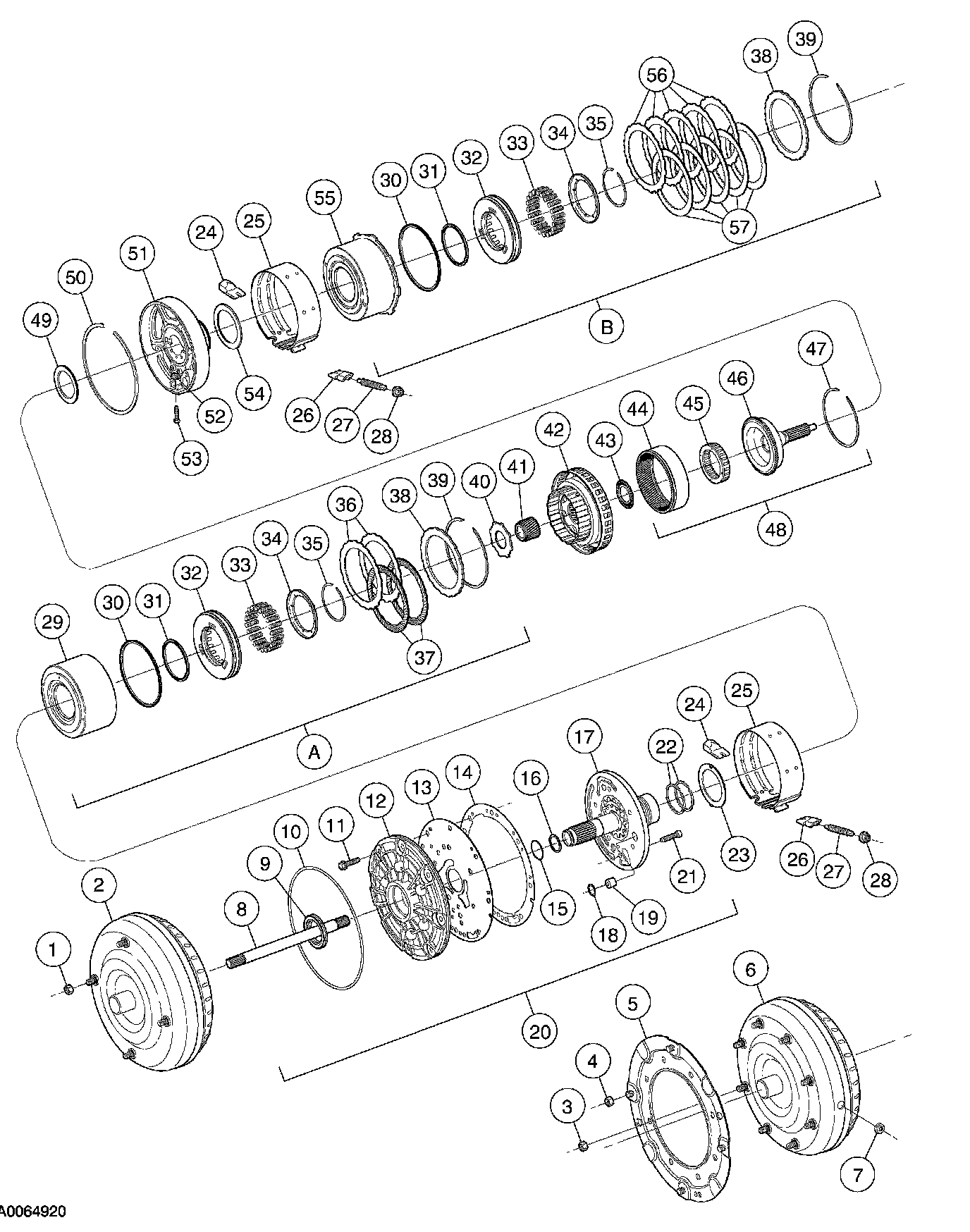

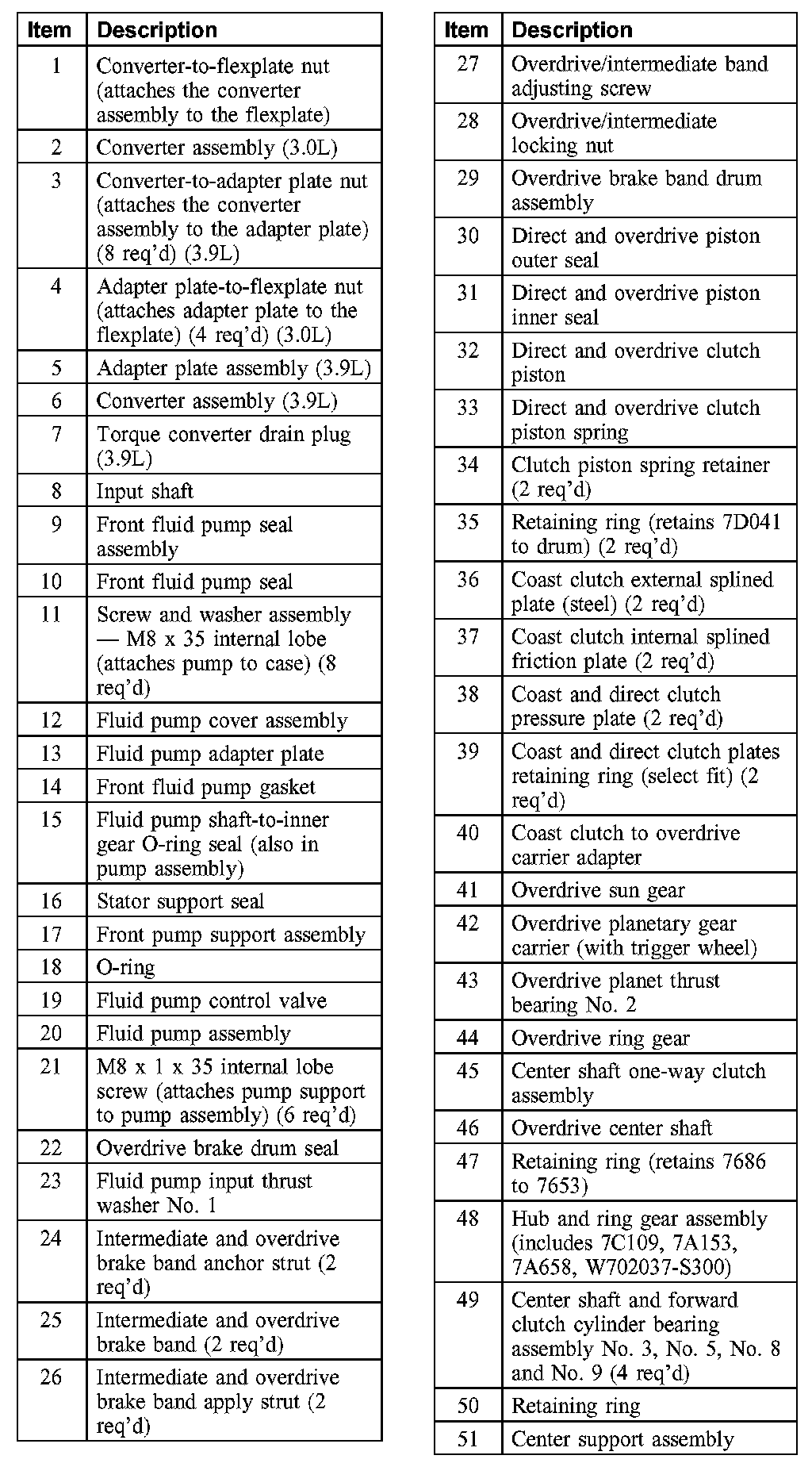

Part 1 Of 6:

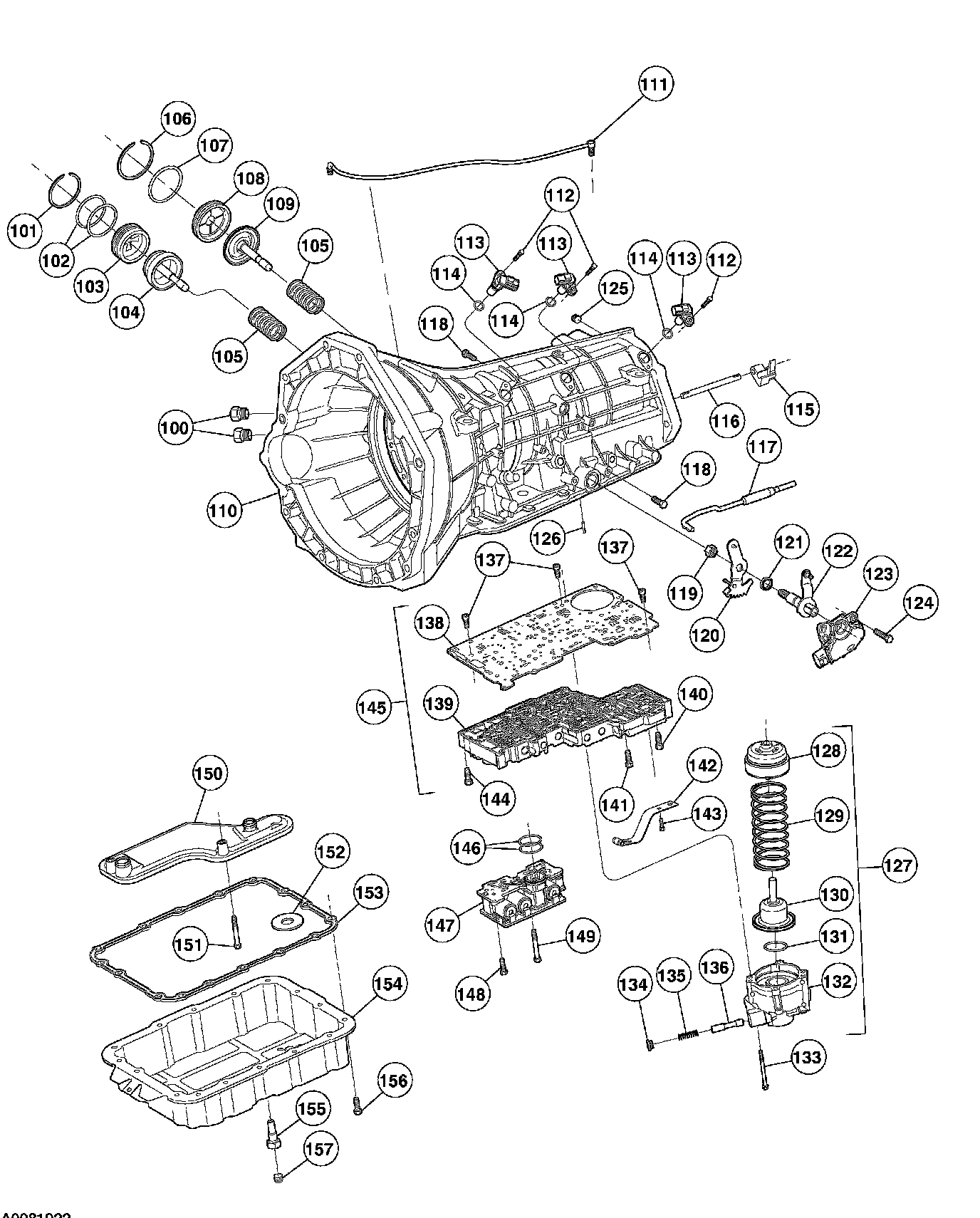

Part 2 Of 6:




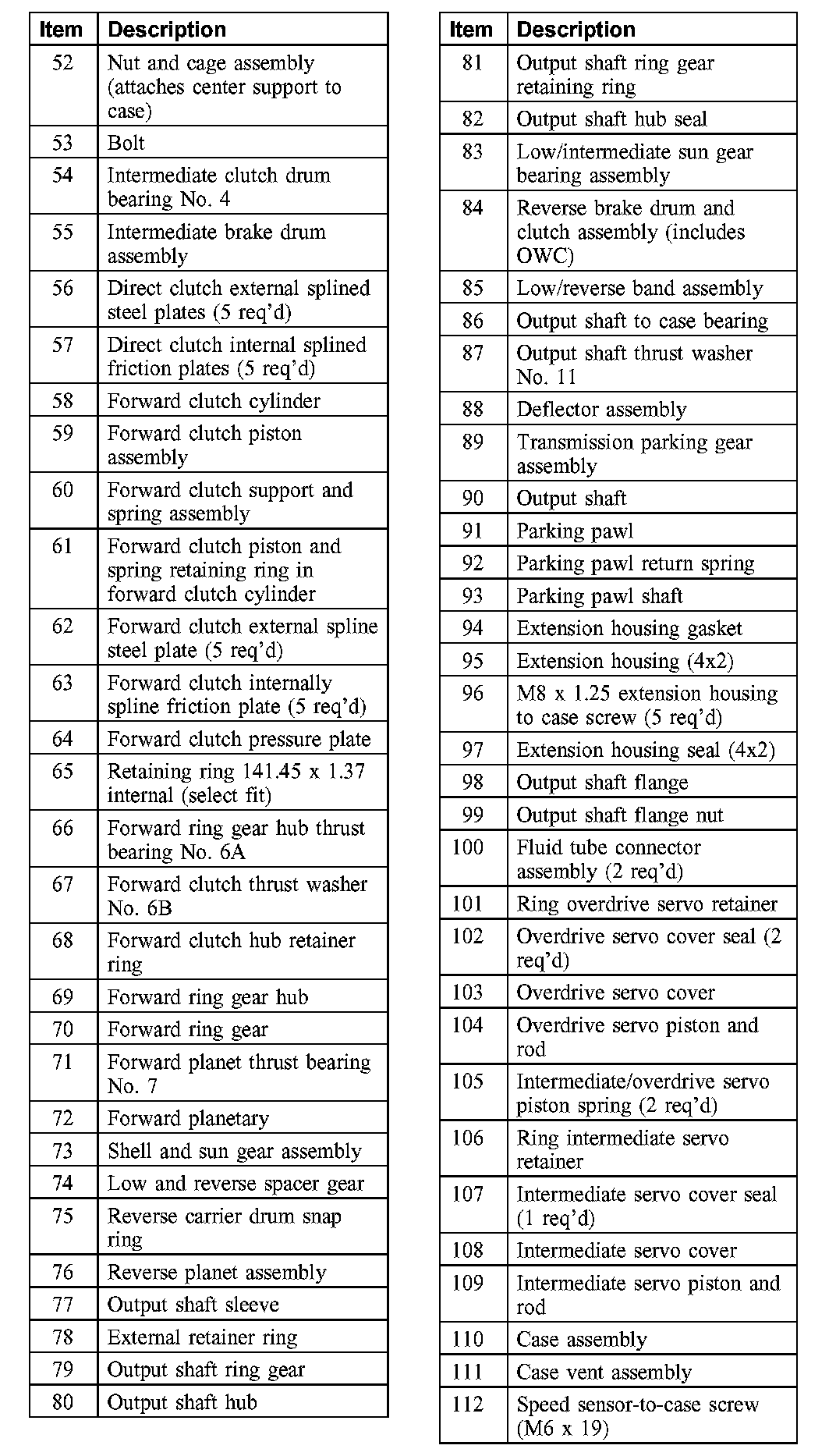

Part 3 Of 6:




Part 4 Of 6:




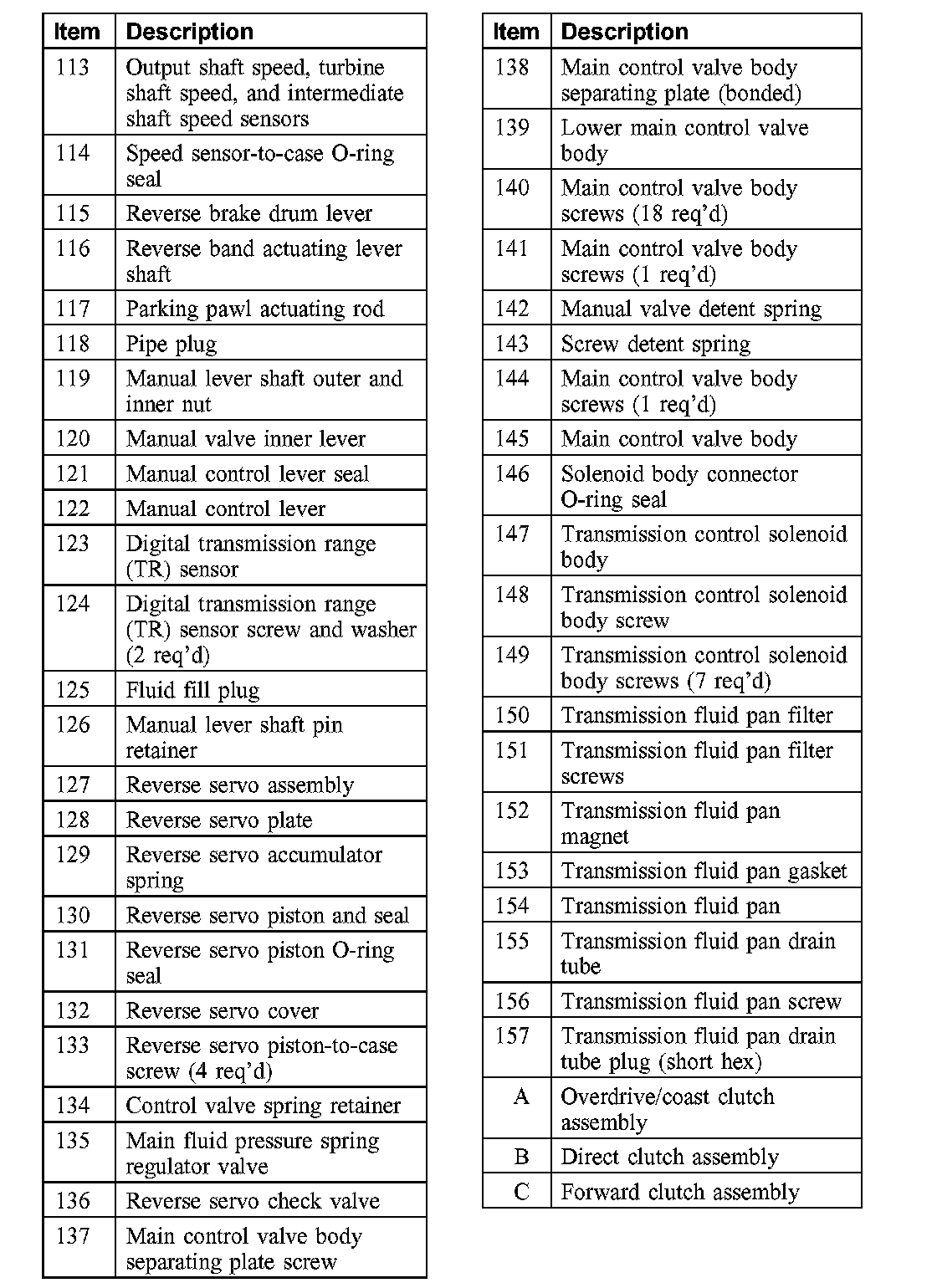

Part 5 Of 6:

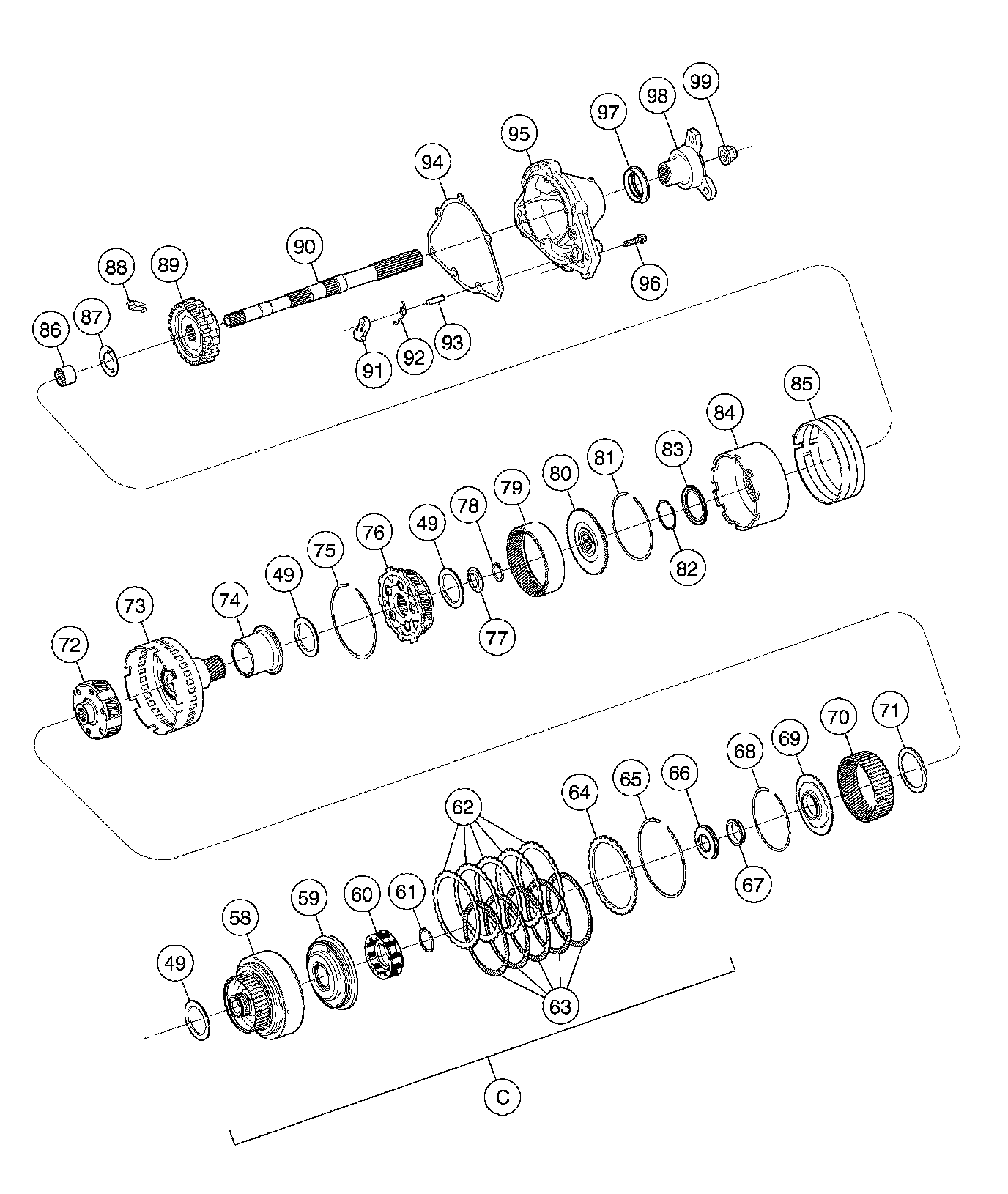

Part 6 Of 6:
