Coolant Outlet: Service and Repair

Coolant Outlet Pipe

1. Drain the cooling system.
2. Remove the thermostat housing.

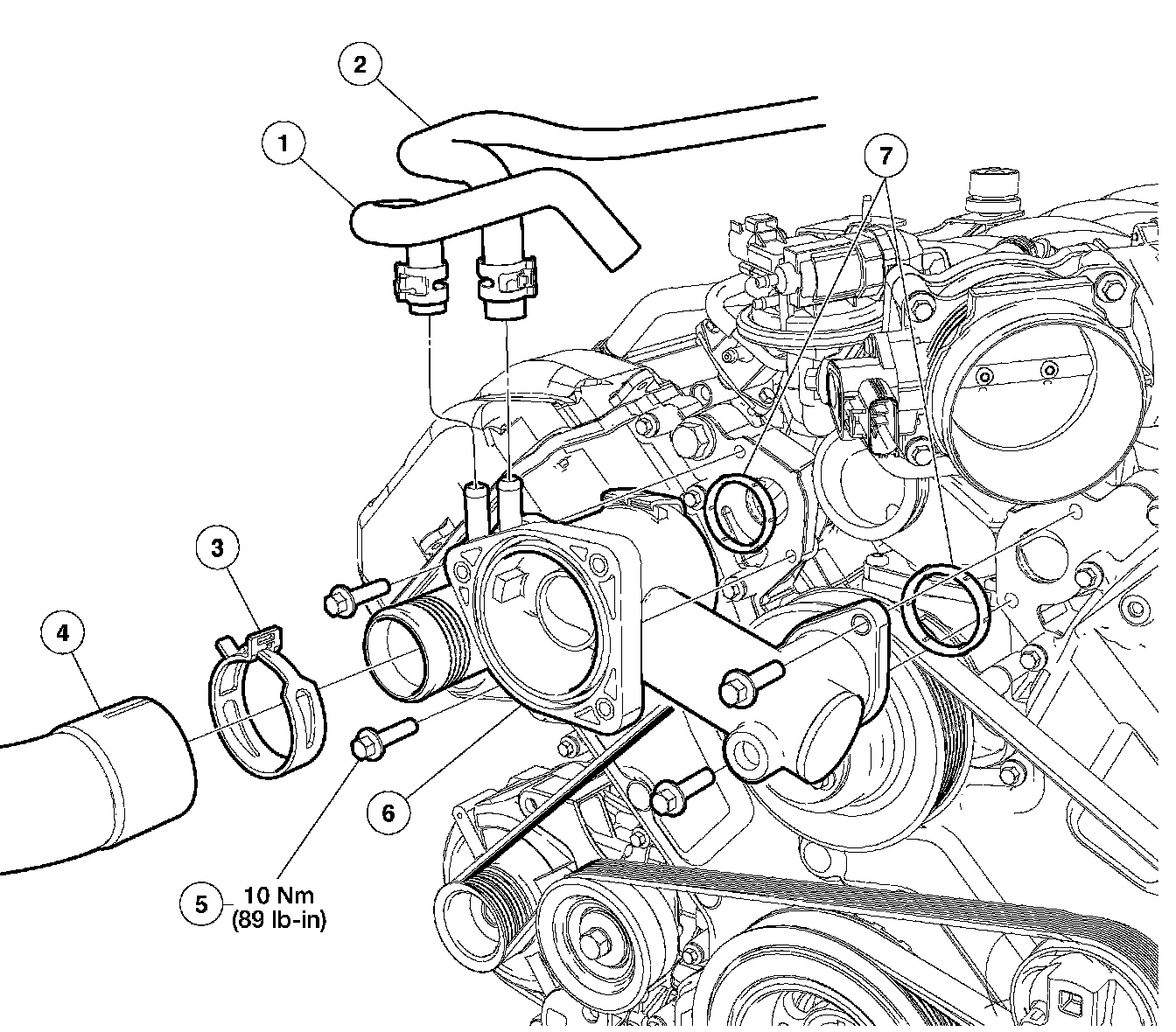

3. Remove the components in the order indicated in the illustration and table.

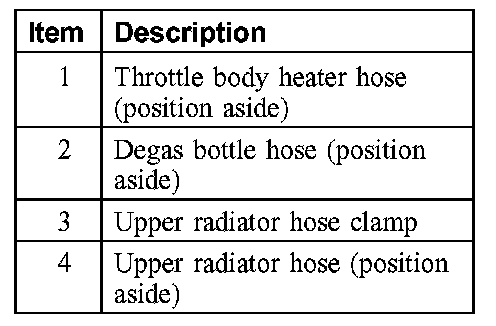

Step 1-4:

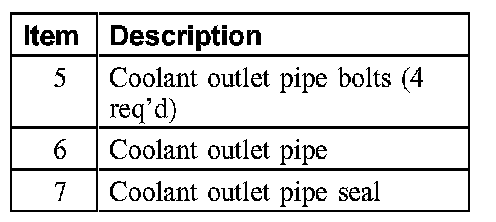

Step 5-7:

4. To install, reverse the removal procedure.
5. Fill and bleed the cooling system.
