Coolant Reservoir: Service and Repair

Degas Bottle

1. Drain the cooling system.
2. Remove the cowl vent screen.

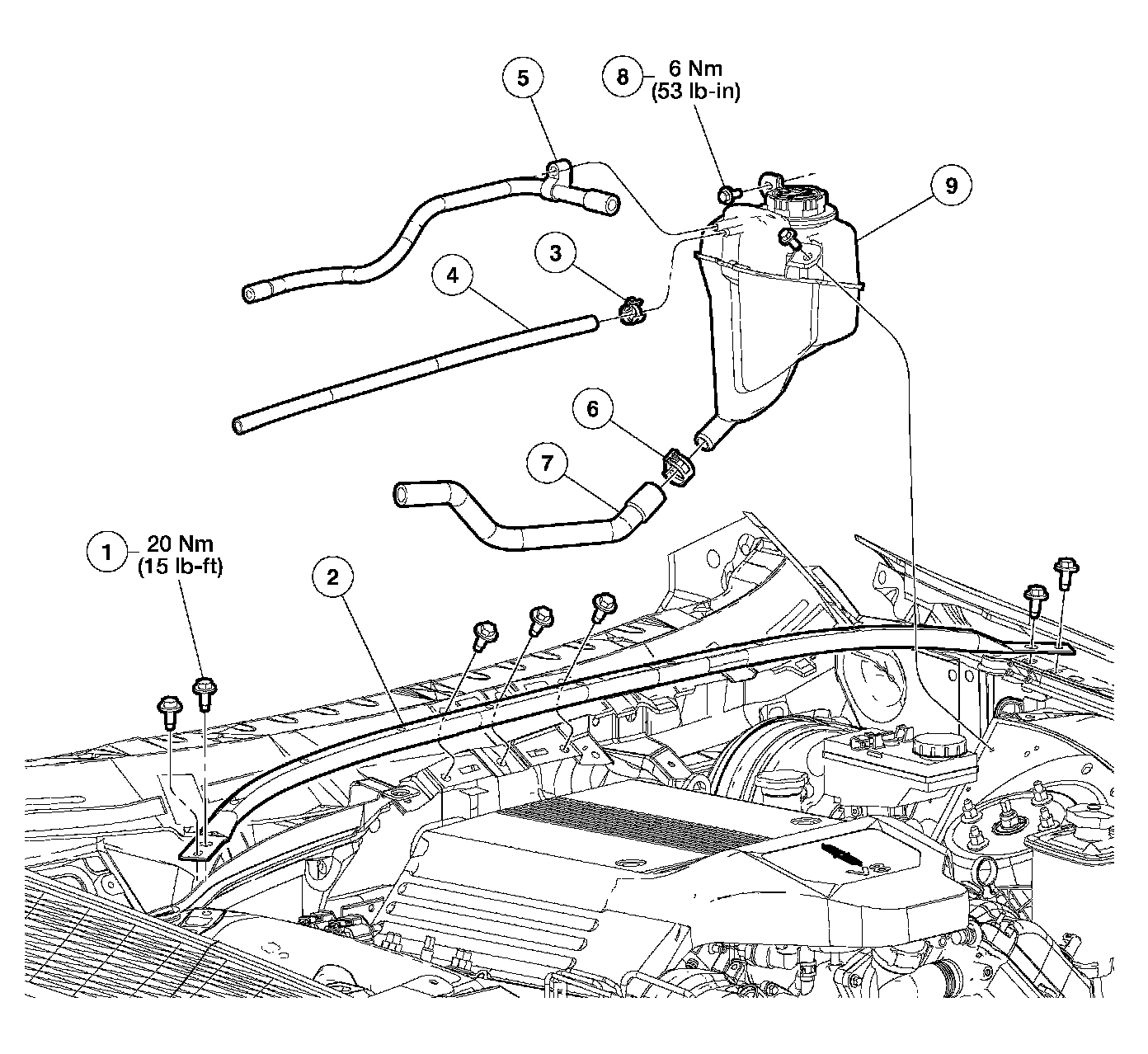

3. Remove the components in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.

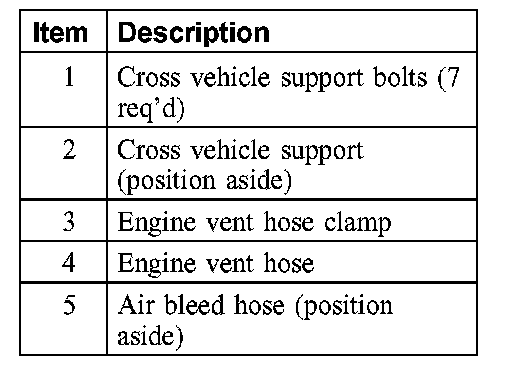

Step 1-5:

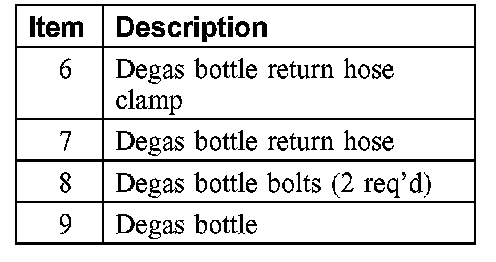

Step 6-9:

5. Fill and bleed the cooling system.
