Water Pump: Service and Repair
Water Pump1. Drain the cooling system.
2. Remove the thermostat housing.
3. Remove the accessory drive belt.

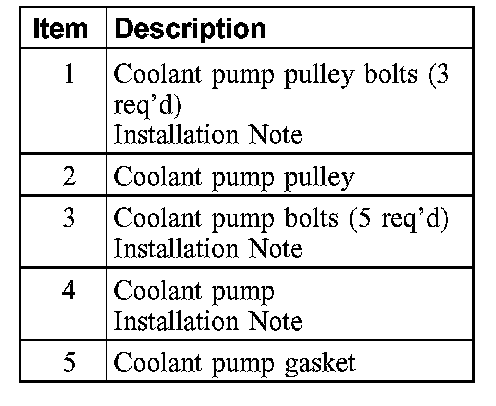

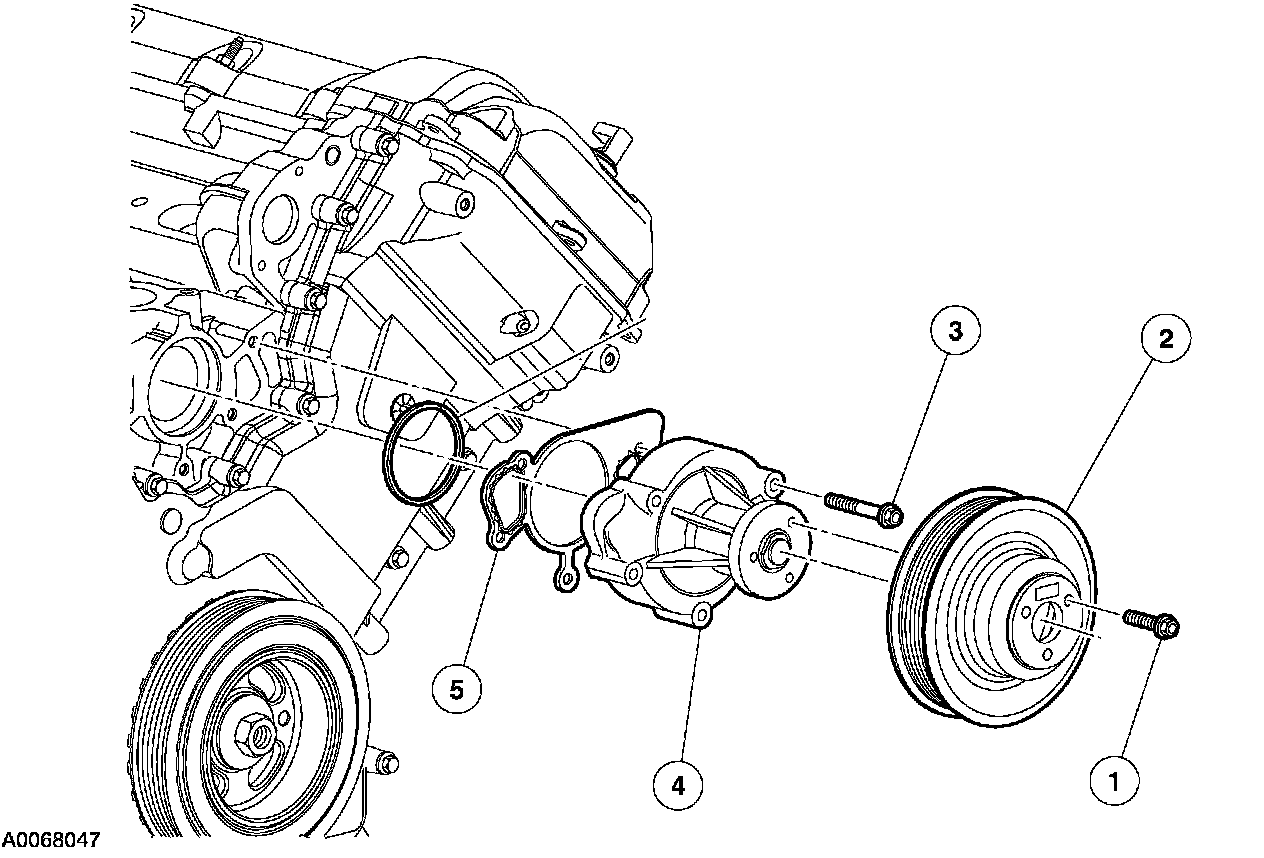

4. Remove the components in the order indicated in the illustration and table.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
Item 4: Coolant Pump Installation Note
1. Install a new gasket and inspect and lubricate the O-ring seal with clean engine coolant before installing the pump.
Item 3: Coolant Pump Bolts Installation Note
1. Tighten the bolts to 8 Nm (71 inch lbs.), then rotate an additional 90°.
Item 1: Coolant Pump Pulley Bolts Installation Note
1. Tighten the bolts to 10 Nm (89 inch lbs.), then rotate an additional 45°.
