Part 1 of 2

Cylinder Heads

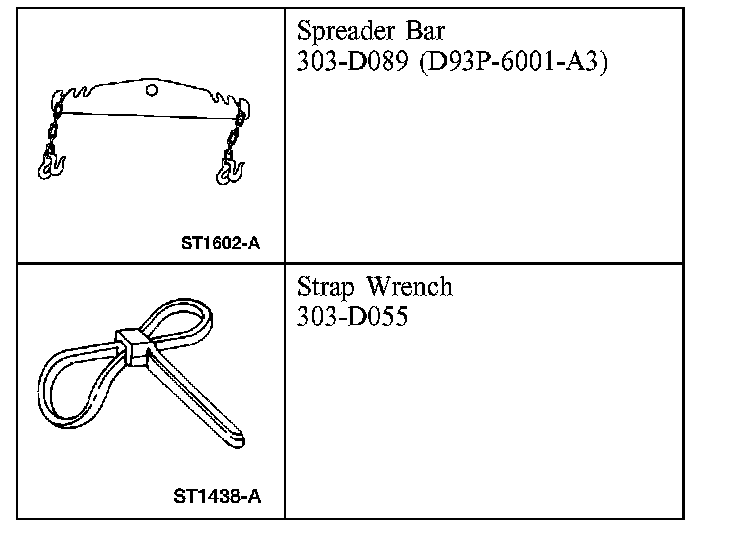

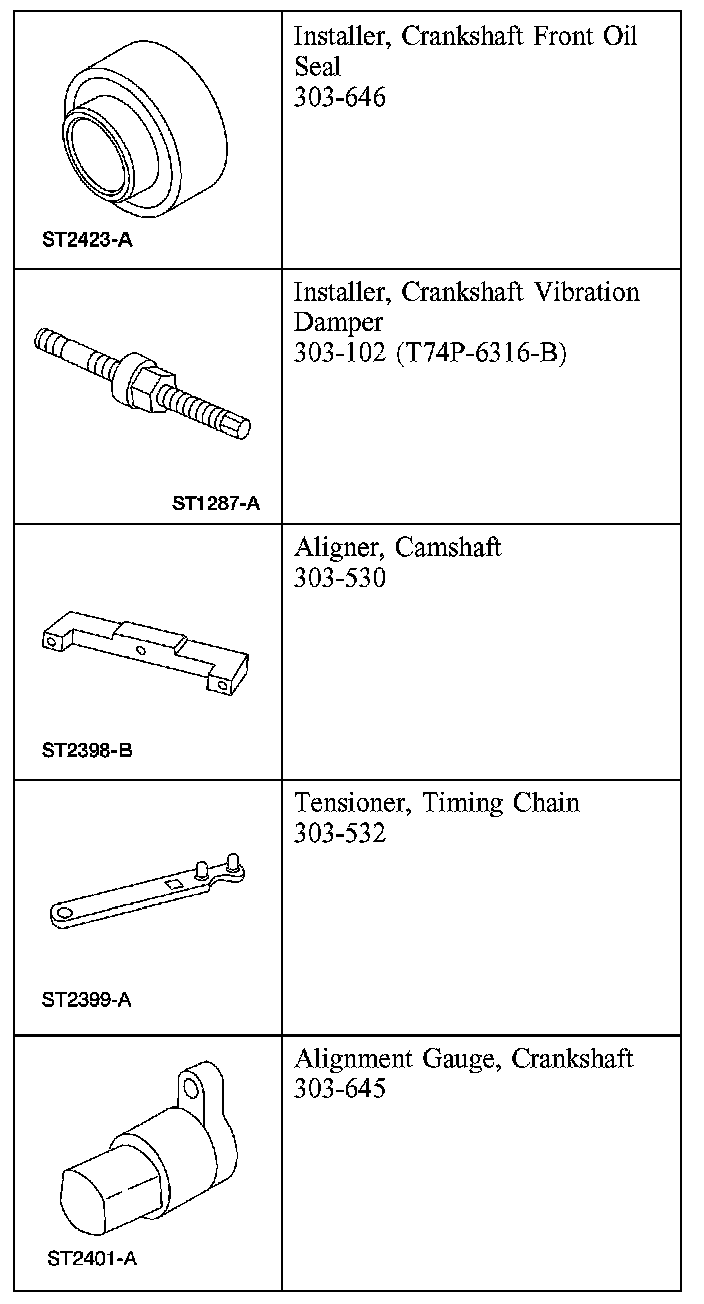

Special Tool(s)

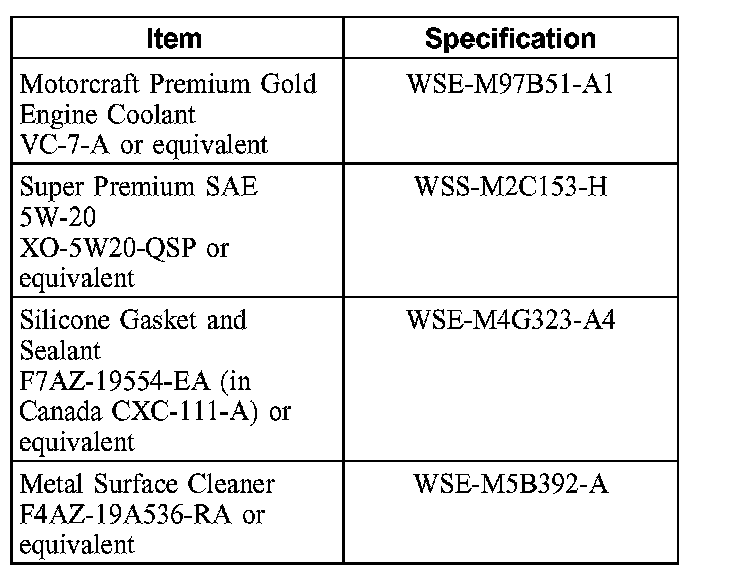

Material





1. CAUTION: The gasket sealing surfaces on the cylinder head and cylinder block must be clean and dry.

CAUTION: The use of sealing aids (aviation cement, copper spray and glue) is not permitted. The gasket must be installed dry.

CAUTION: The new gasket has a film coating which is crucial to the gasket's ability to seal correctly. Do not scratch the gasket.

CAUTION: Cylinder head machining or milling is not authorized by the Ford Motor Company. Cylinder head flatness must be within 0.0254 mm (0.001 inch) across a 38.1 mm (1.5 inch) square area.

CAUTION: Do not allow the dowels to scratch the sealing surface of the cylinder head during cylinder head installation.

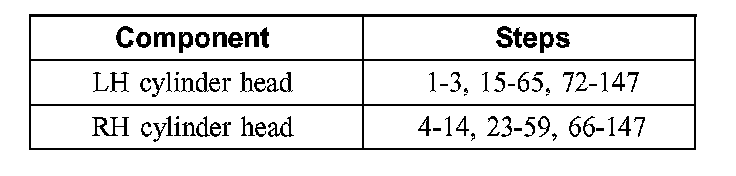

To install individual components, carry out only the listed steps.

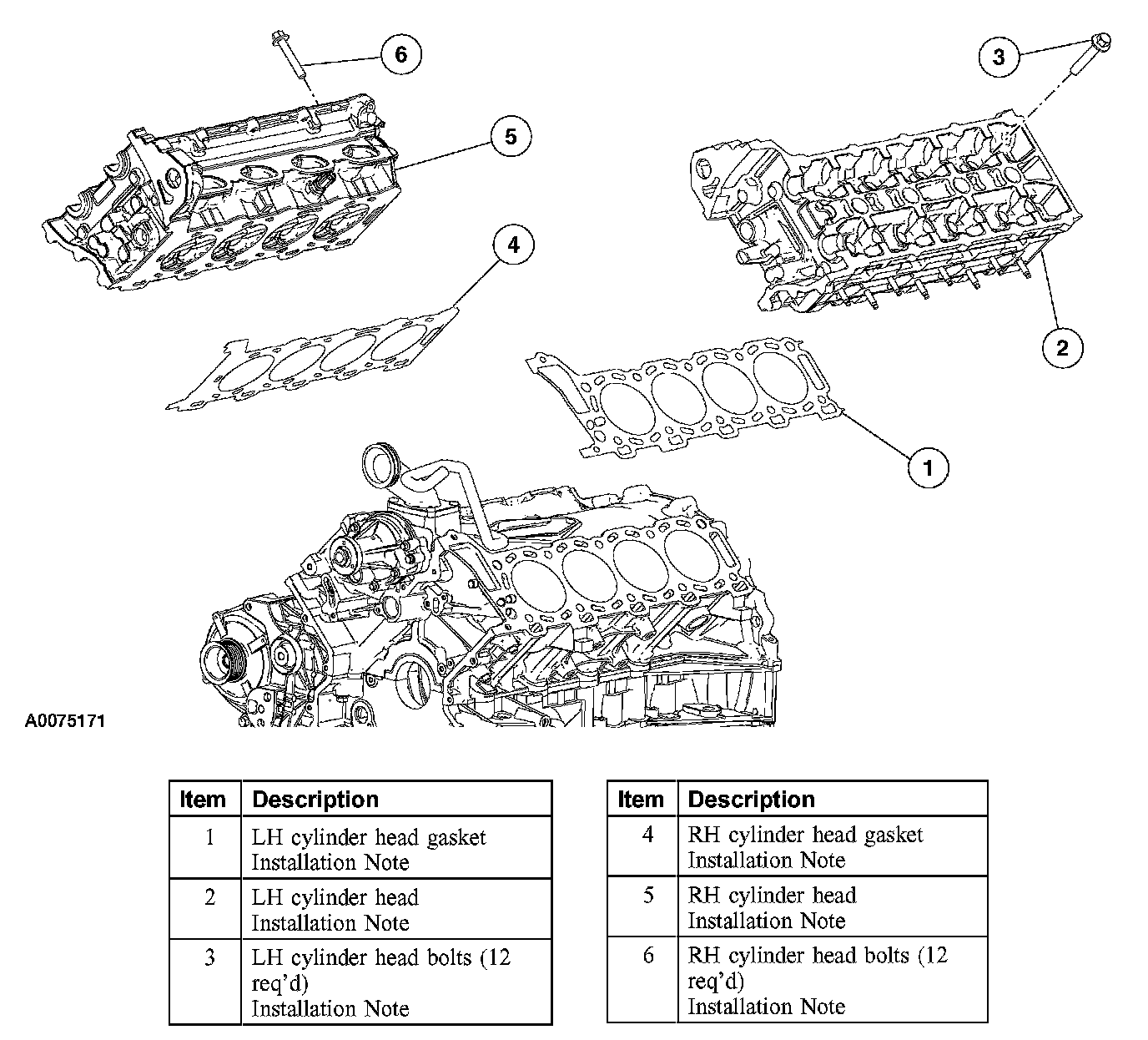

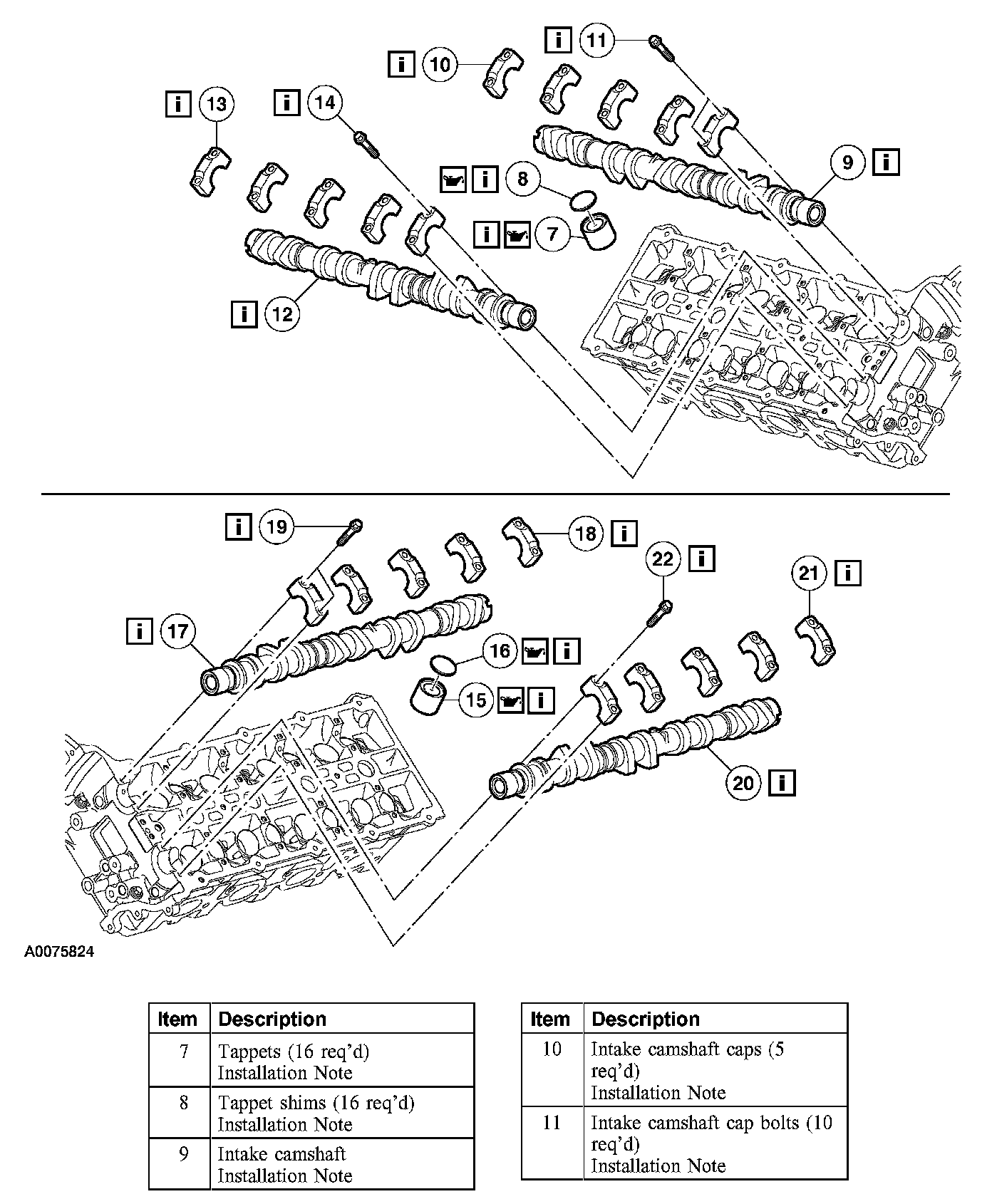

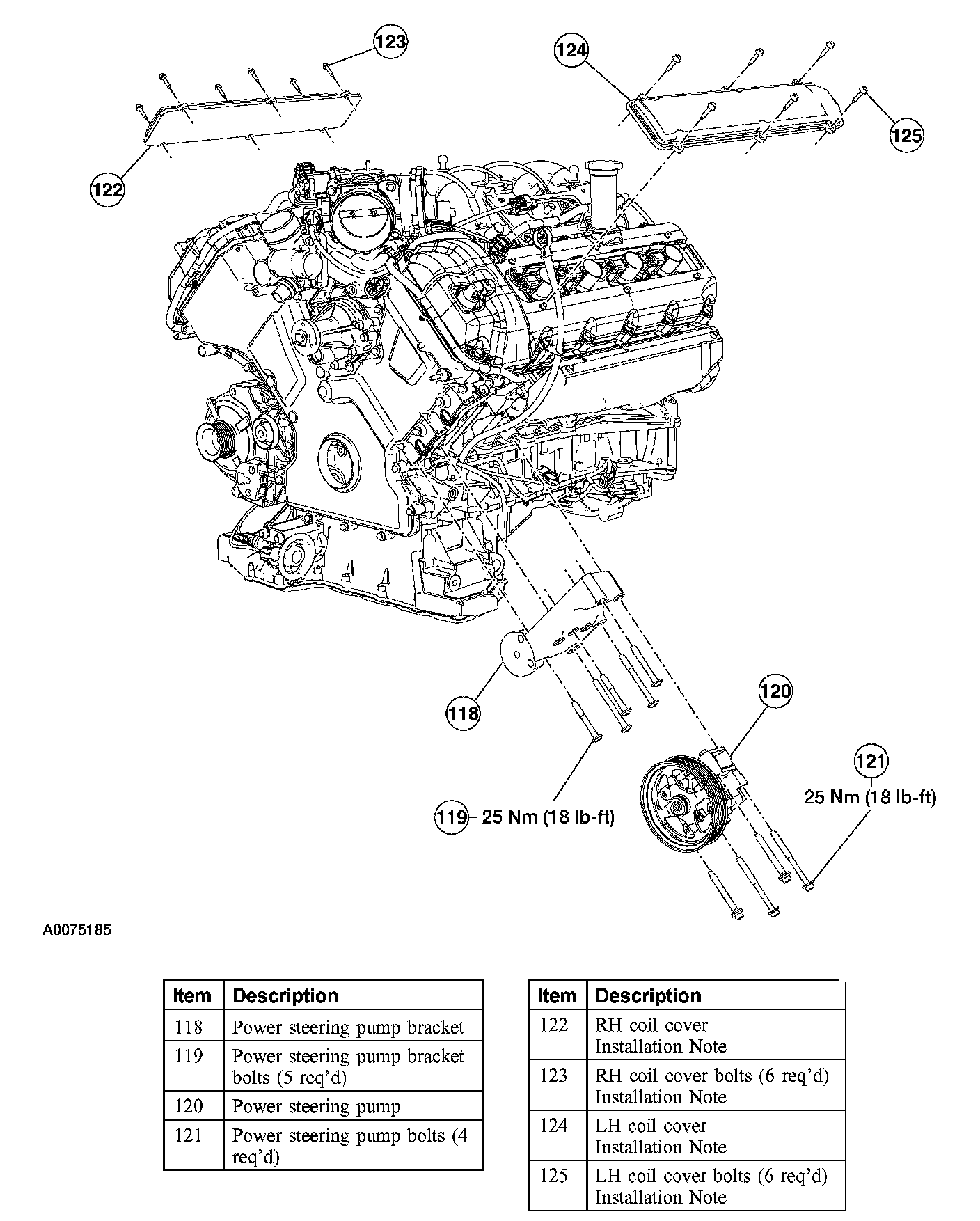

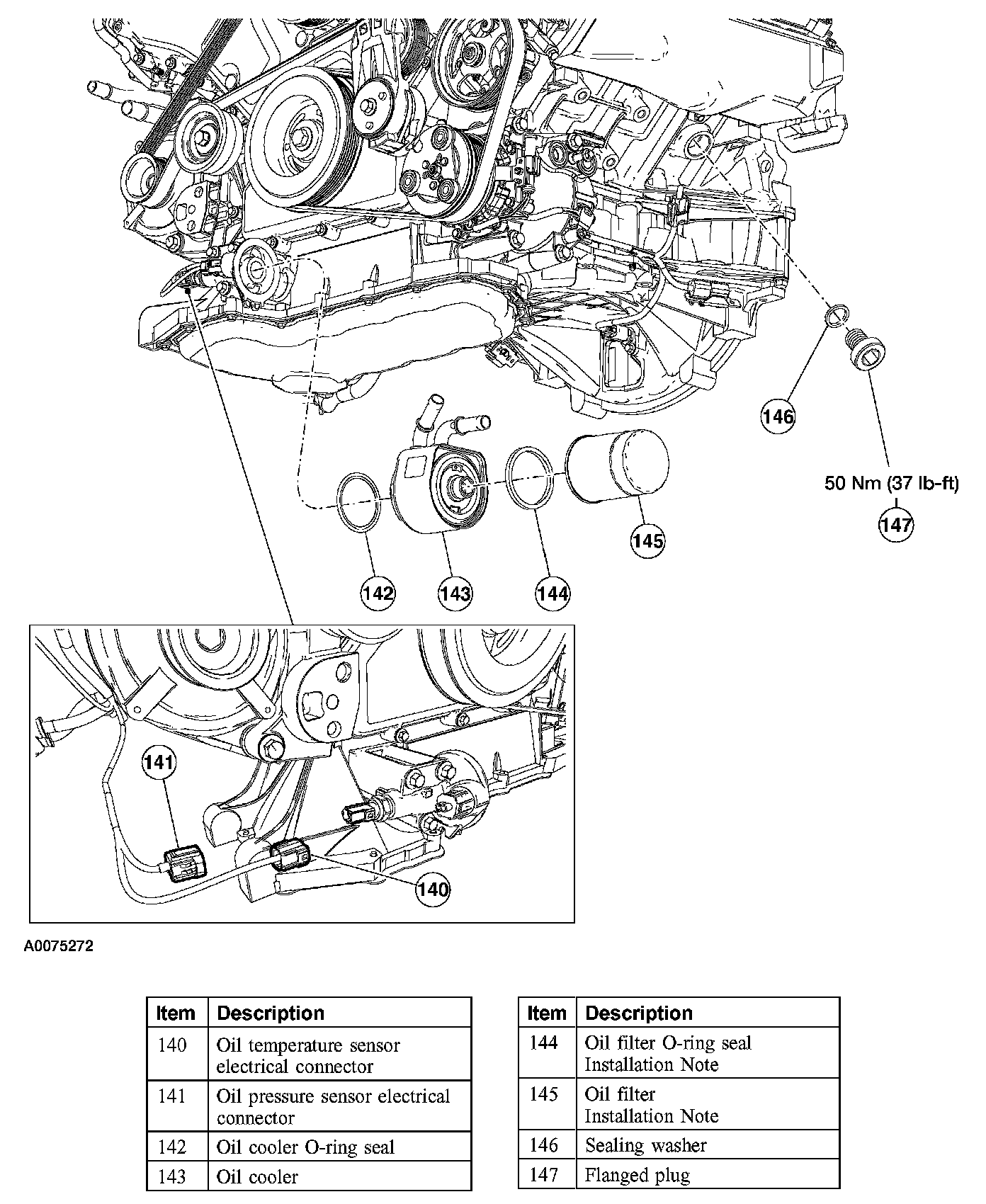

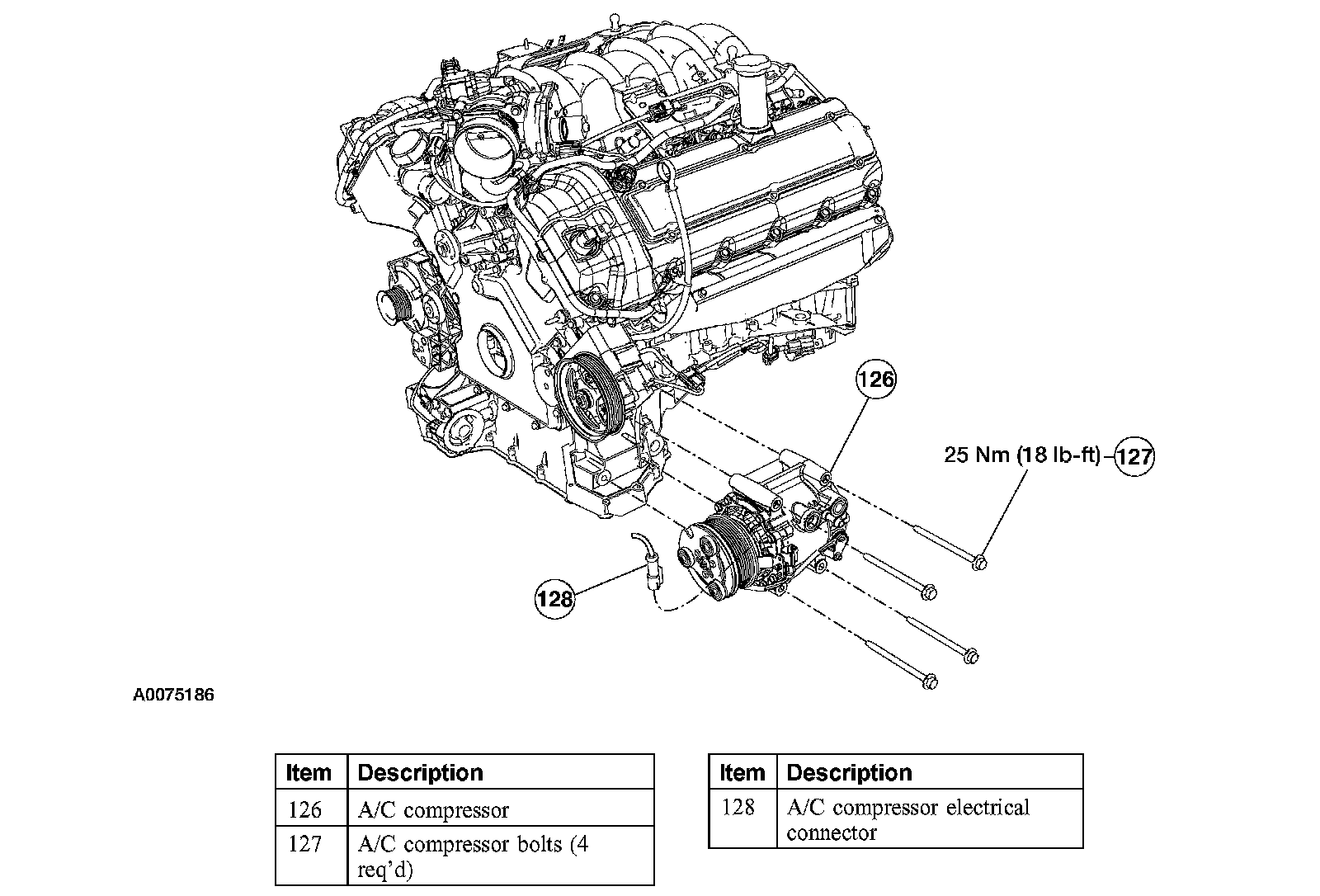

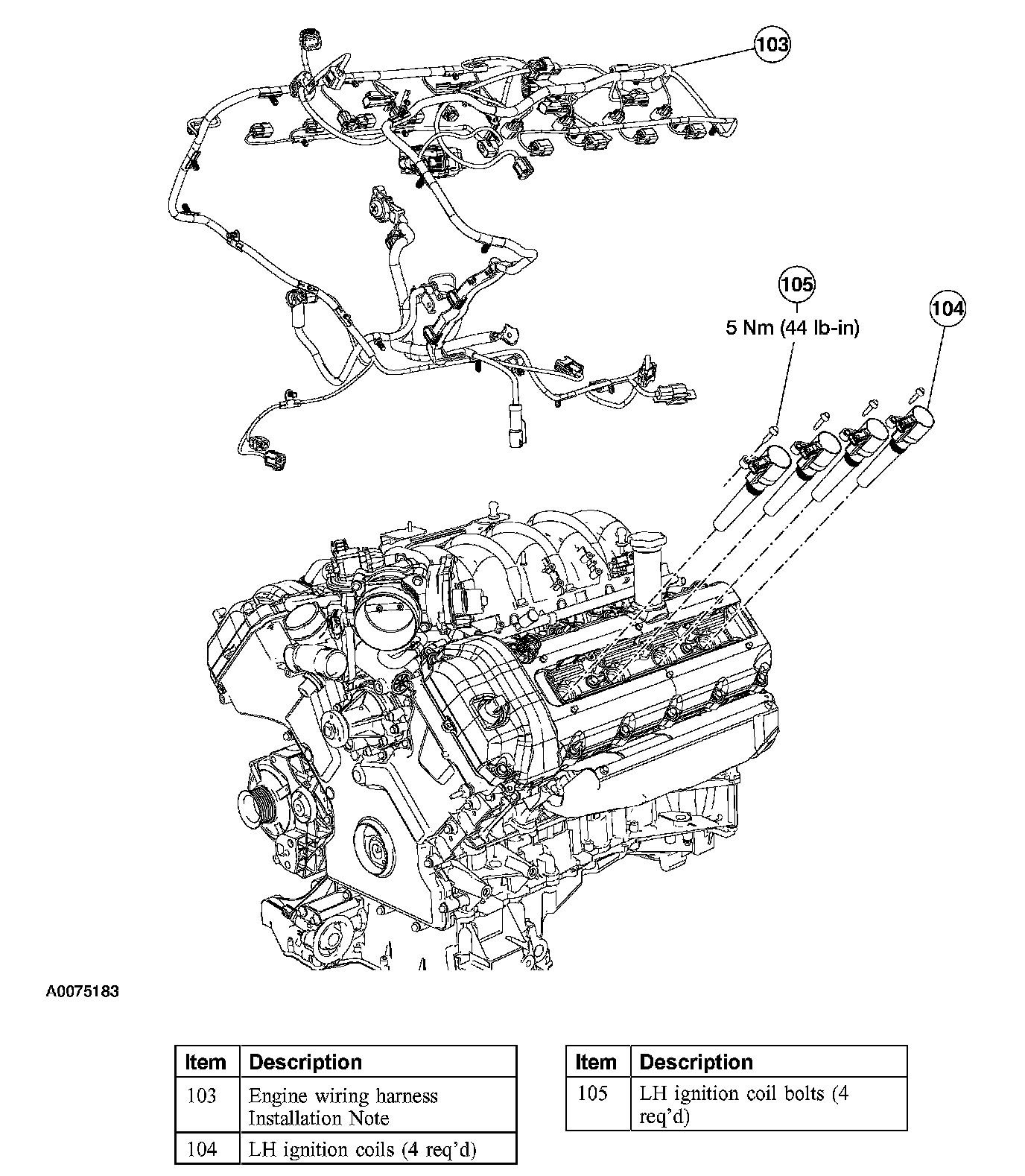

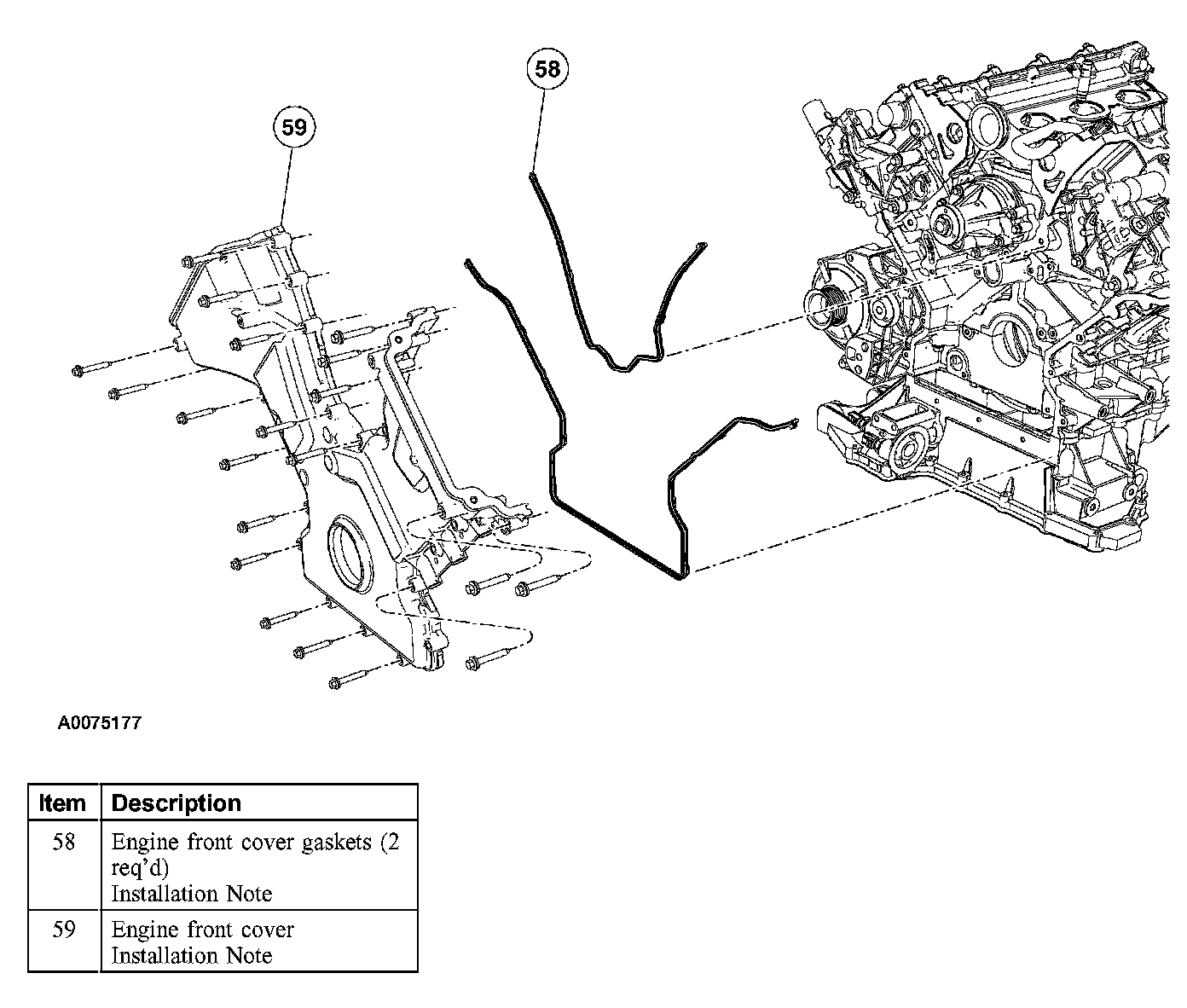

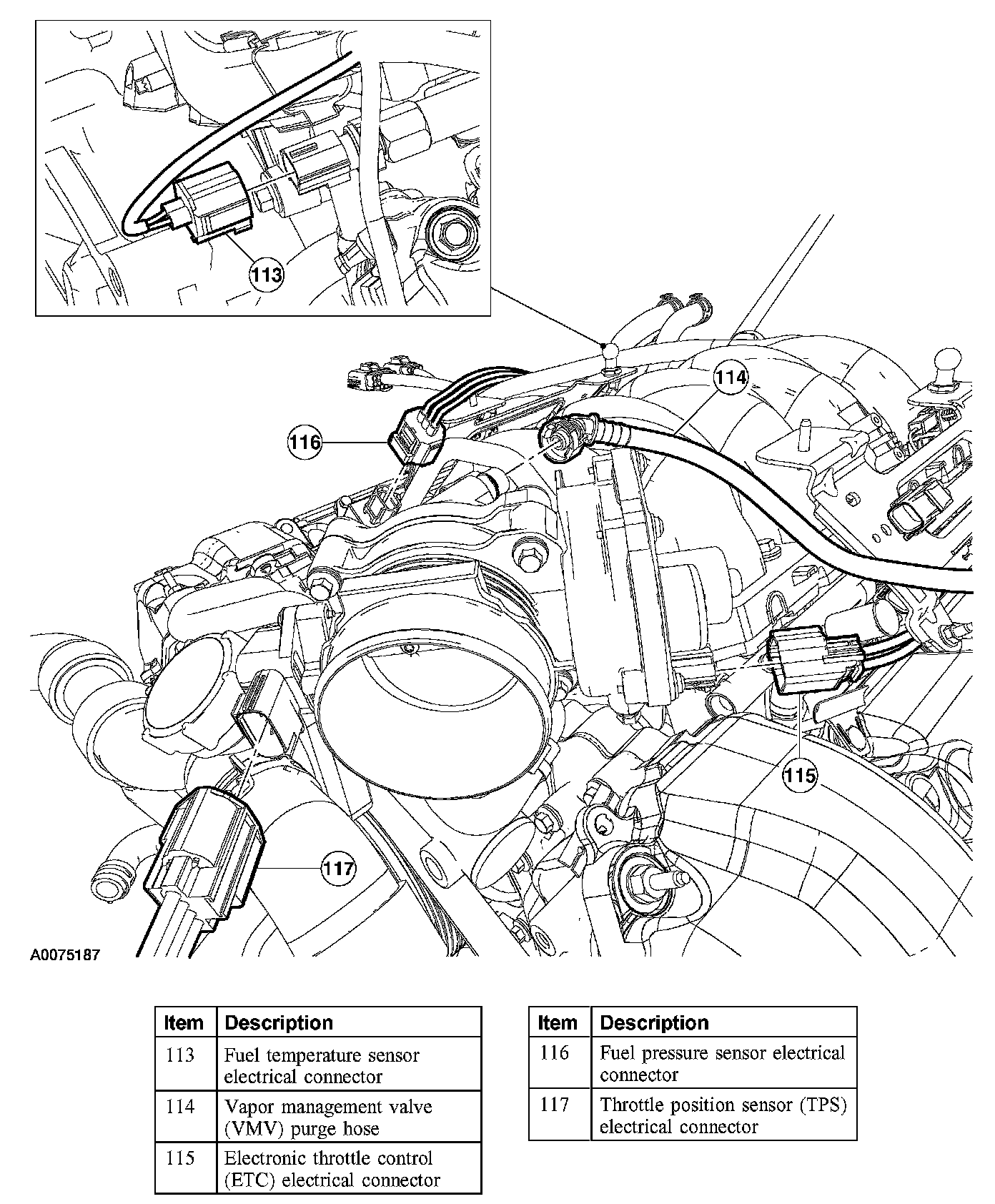

2. Illustration 1 of 20. Install the components in the order indicated in the illustration and table.

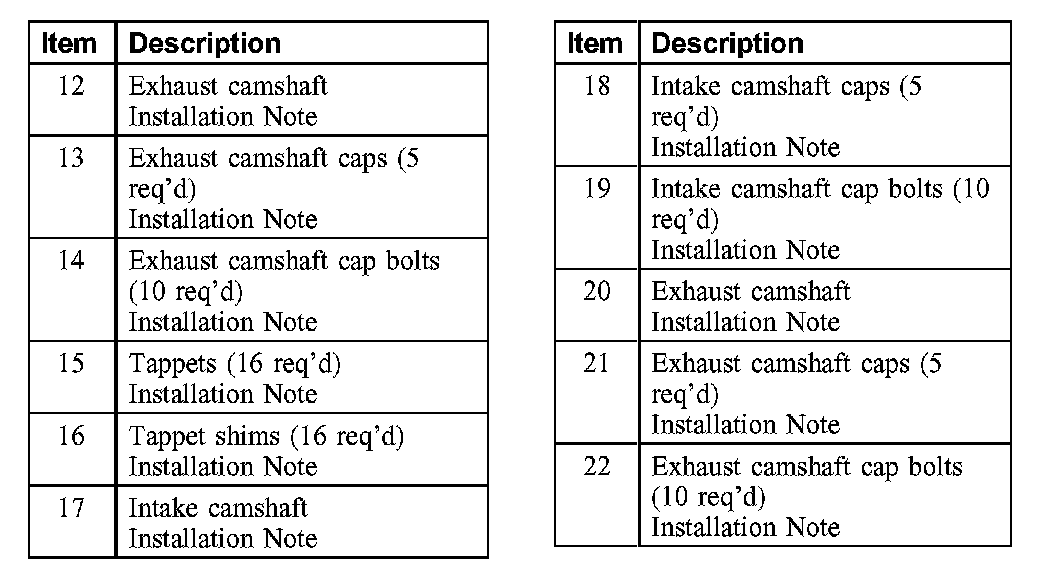

3. Illustration 2 of 20. Install the components in the order indicated in the illustration and table.

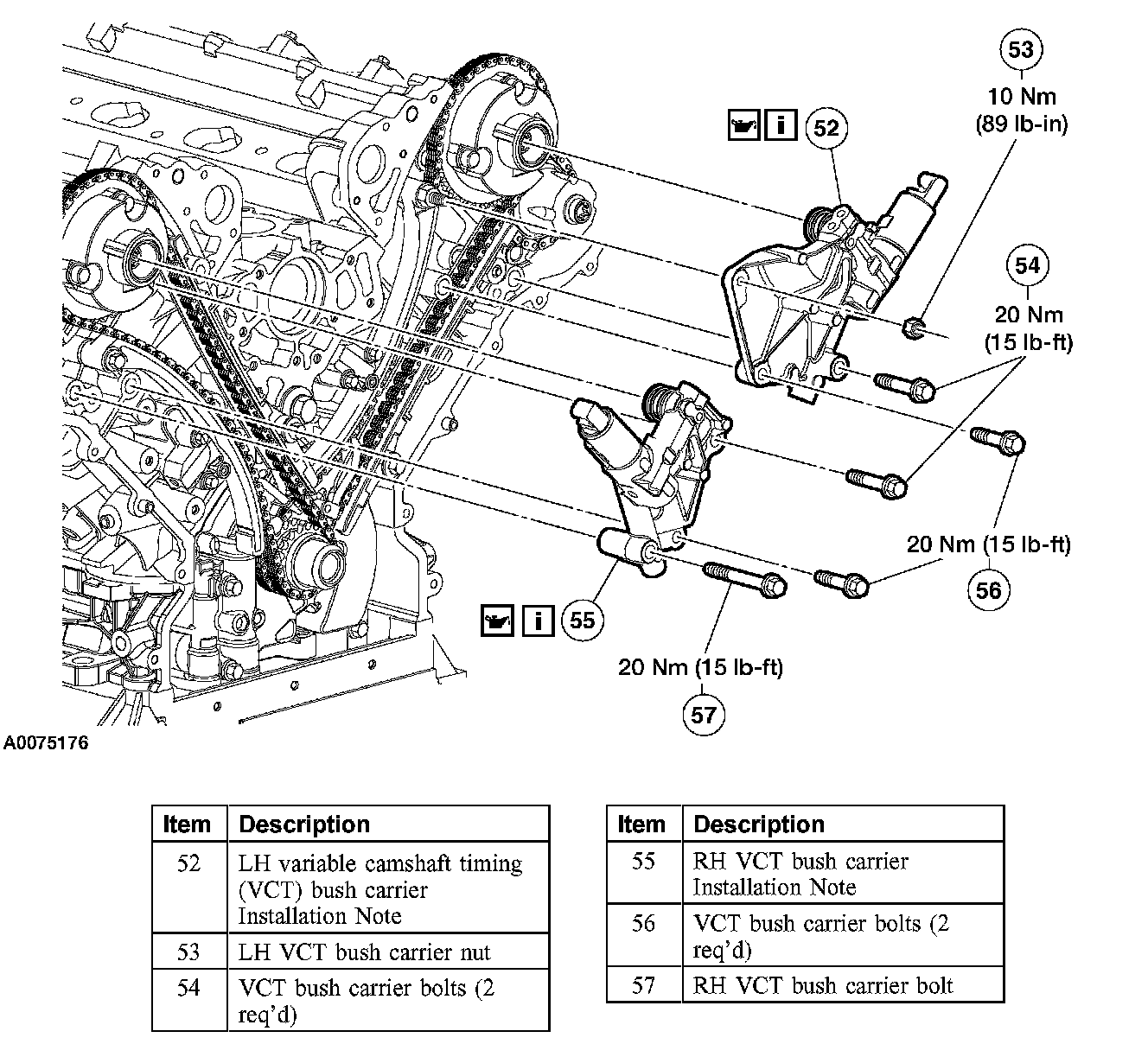

4. NOTE: The illustration is for reference only. Installation notes must be followed for installing timing drive components.

Illustration 3 of 20. Install the components in the order indicated in the illustration and table.

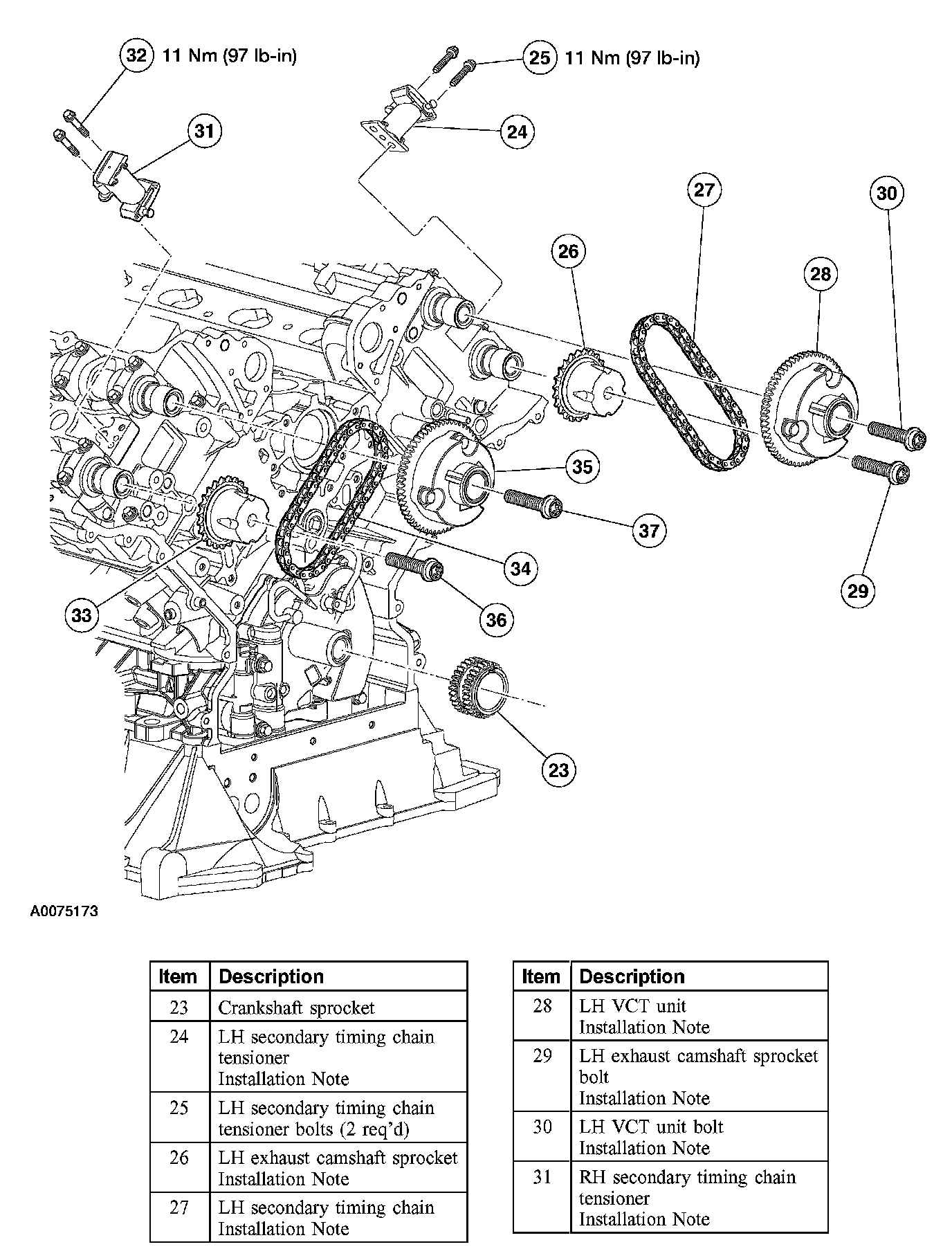

5. NOTE: The illustration is for reference only. Installation notes must be followed for installing timing drive components.





Illustration 4 of 20. Install the components in the order indicated in the illustration and table.





6. NOTE: The illustration is for reference only. Installation notes must be followed for installing timing drive components.

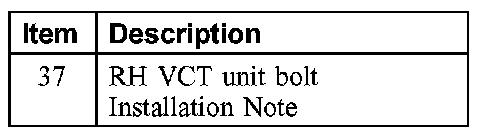

Illustration 5 of 20. Install the components in the order indicated in the illustration and table.





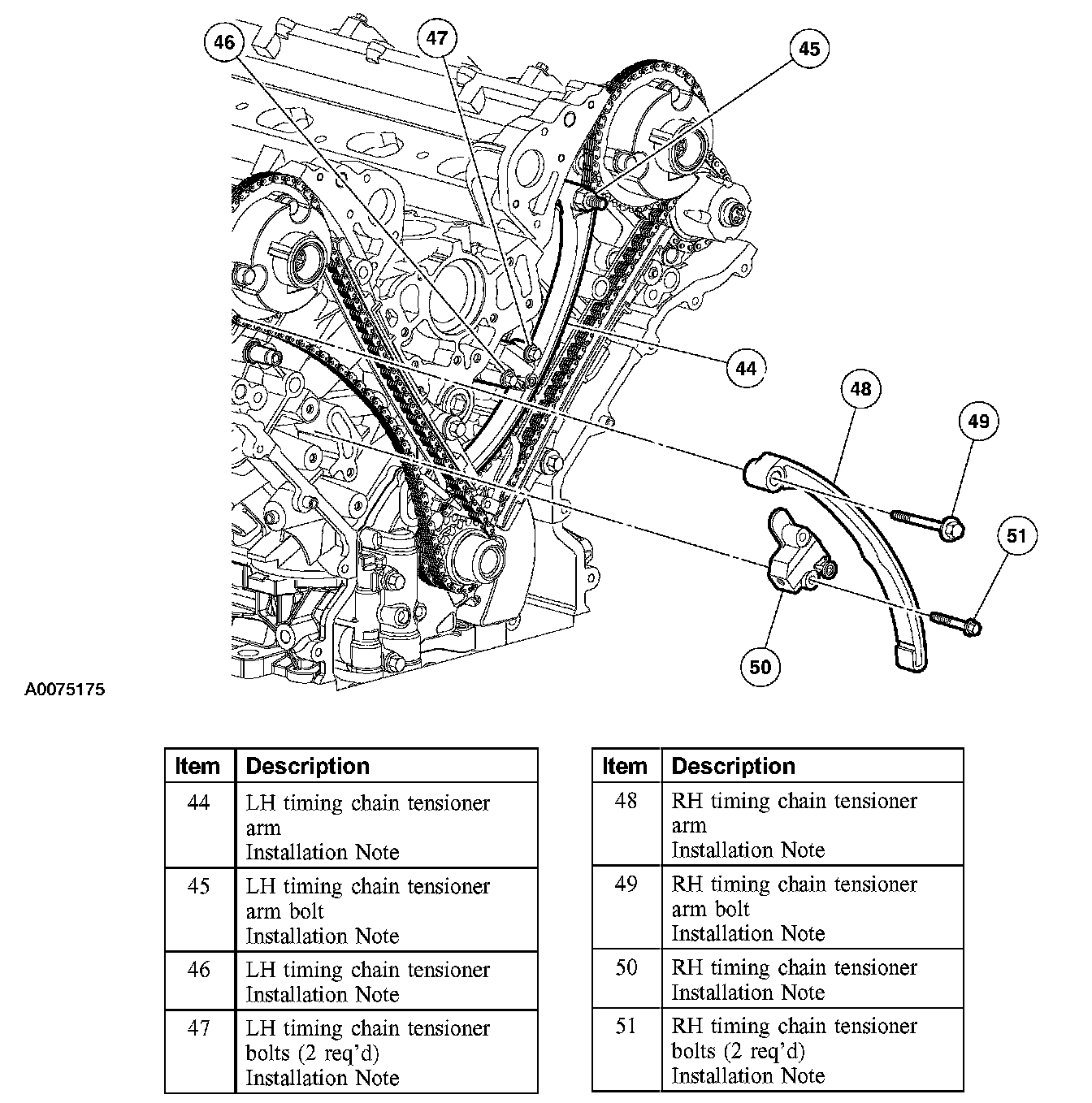

7. NOTE: The illustration is for reference only. Installation notes must be followed for installing timing drive components.

Illustration 6 of 20. Install the components in the order indicated in the illustration and table.





8. Illustration 7 of 20. Install the components in the order indicated in the illustration and table.





9. Illustration 8 of 20. Install the components in the order indicated in the illustration and table.





10. Illustration 9 of 20. Install the components in the order indicated in the illustration and table.








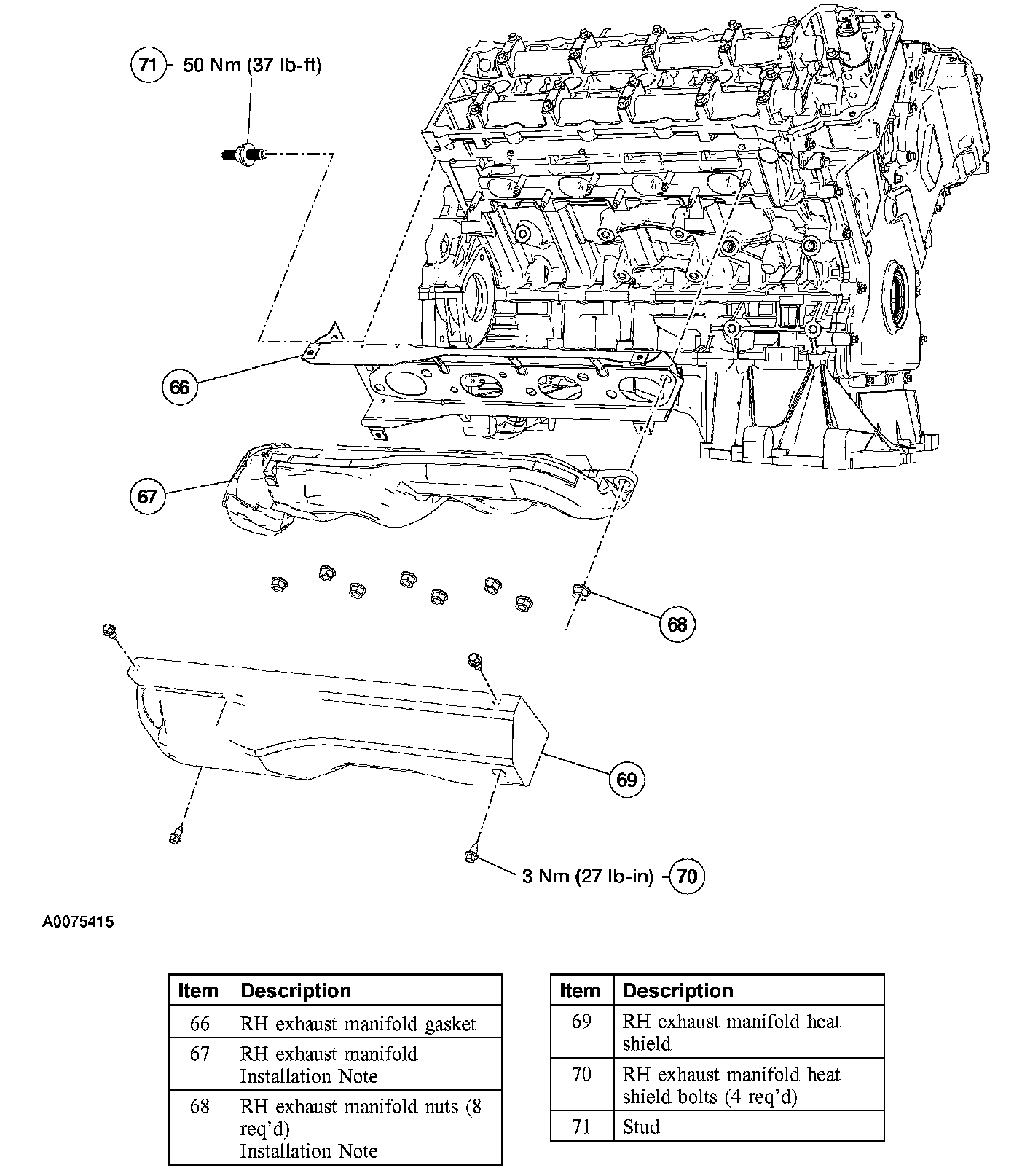

11. Illustration 10 of 20. Install the components in the order indicated in the illustration and table.





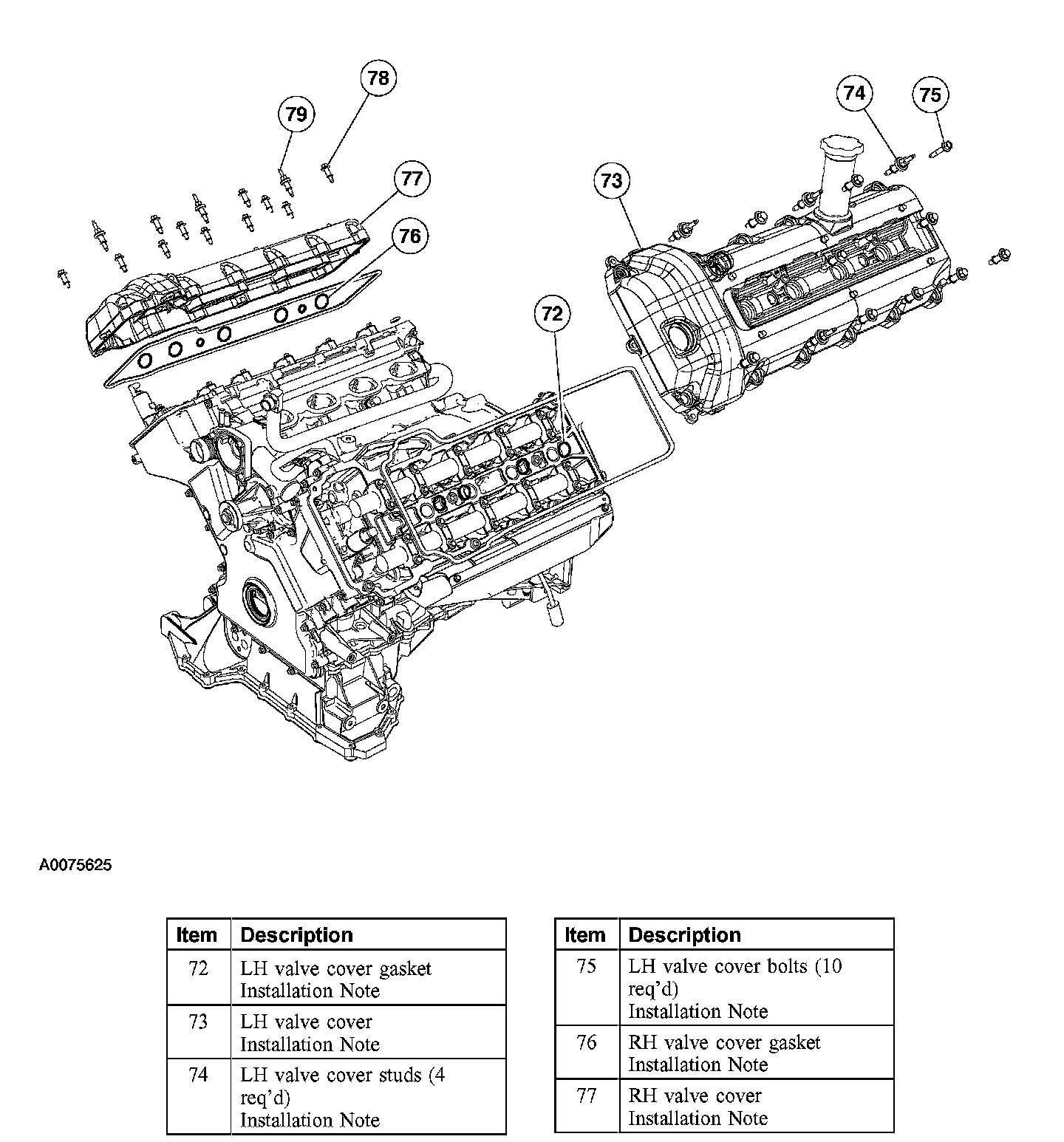

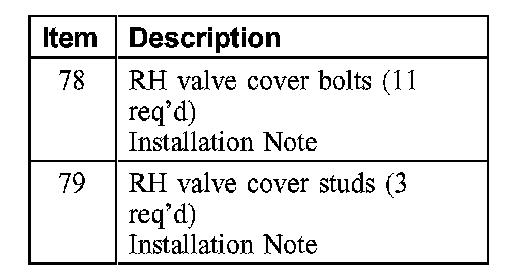

12. Illustration 11 of 20. Install the components in the order indicated in the illustration and table.





13. Illustration 12 of 20. Install the components in the order indicated in the illustration and table.





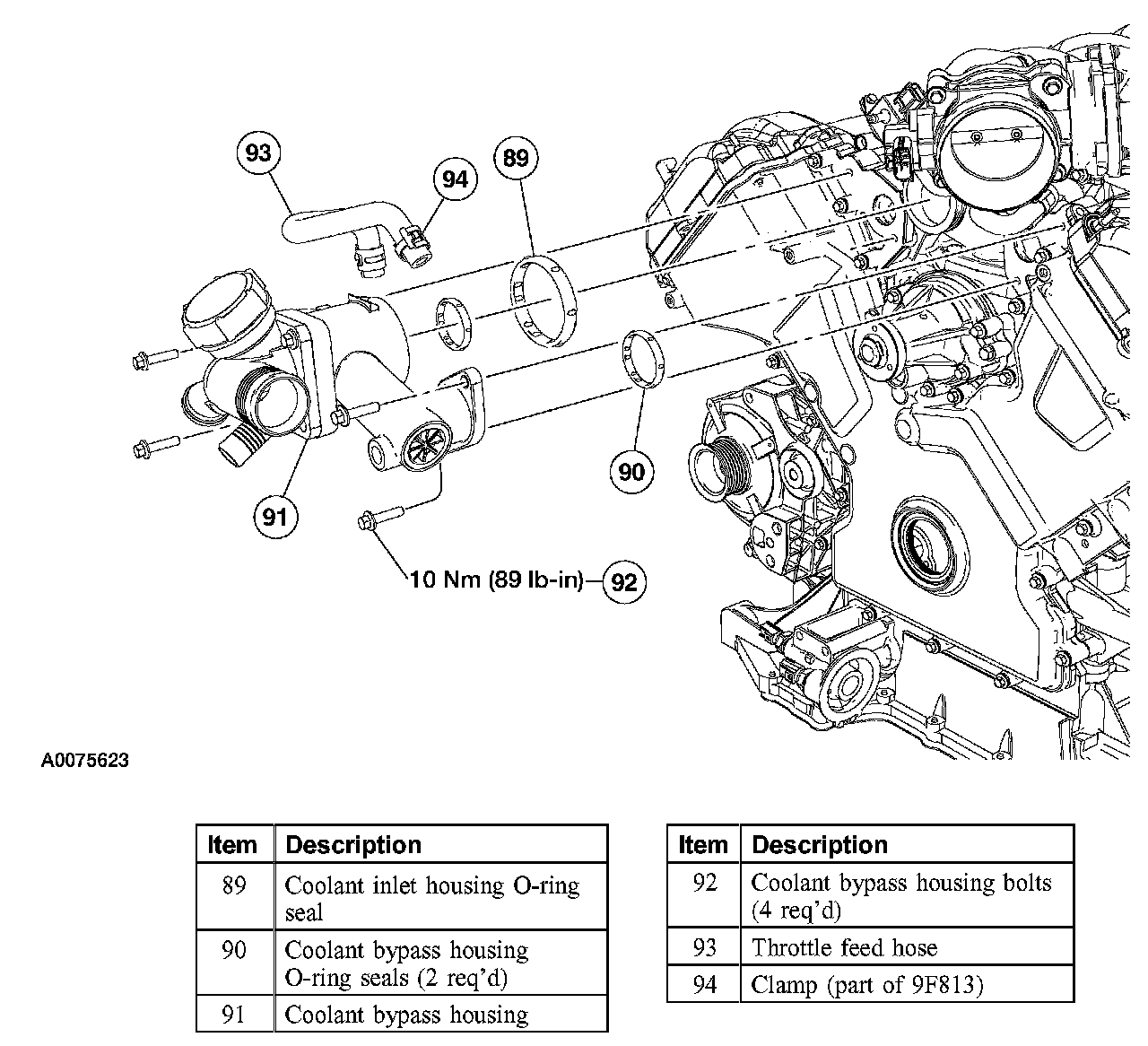

14. Illustration 13 of 20. Install the components in the order indicated in the illustration and table.





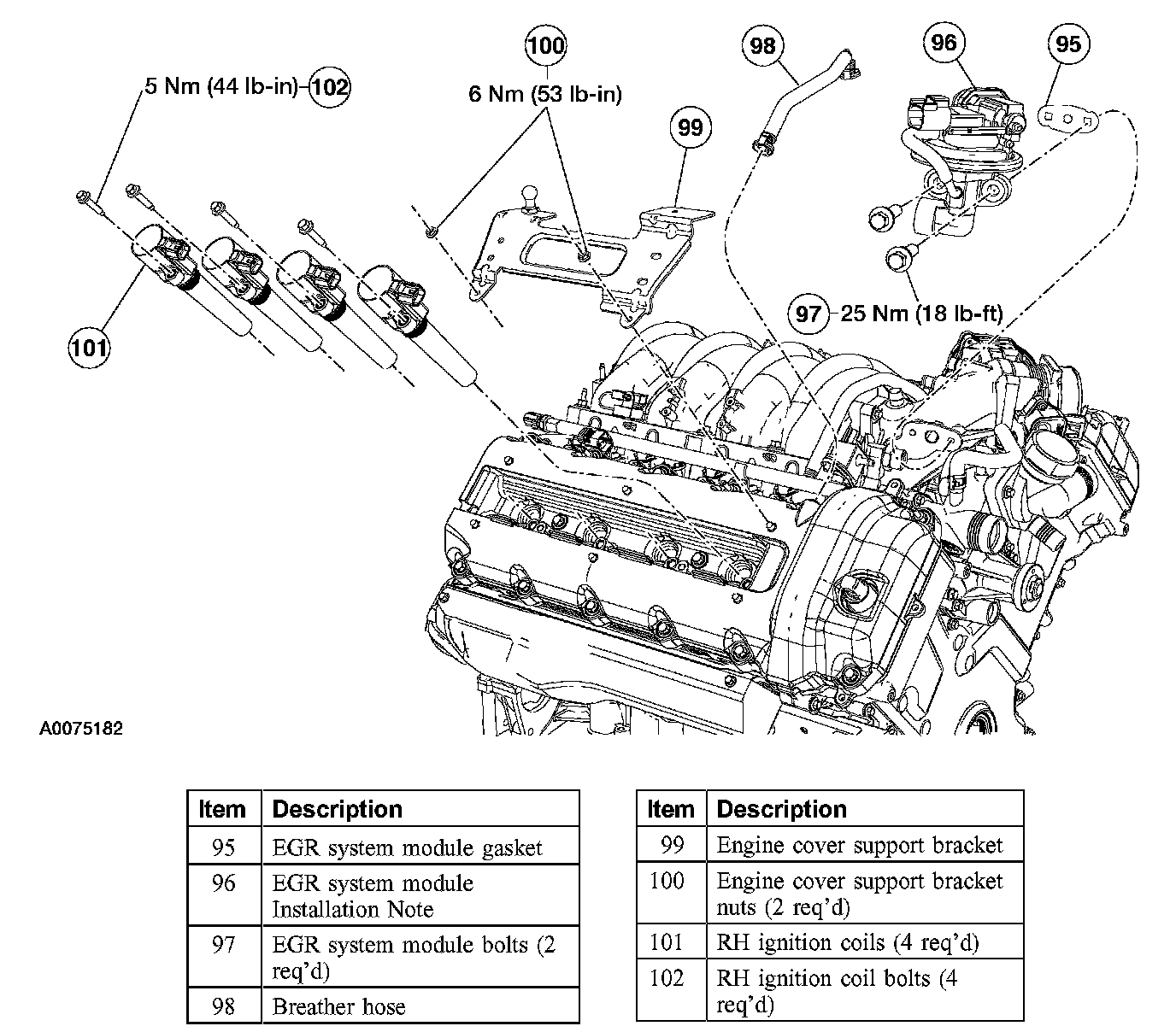

15. Illustration 14 of 20. Install the components in the order indicated in the illustration and table.





16. Illustration 15 of 20. Install the components in the order indicated in the illustration and table.





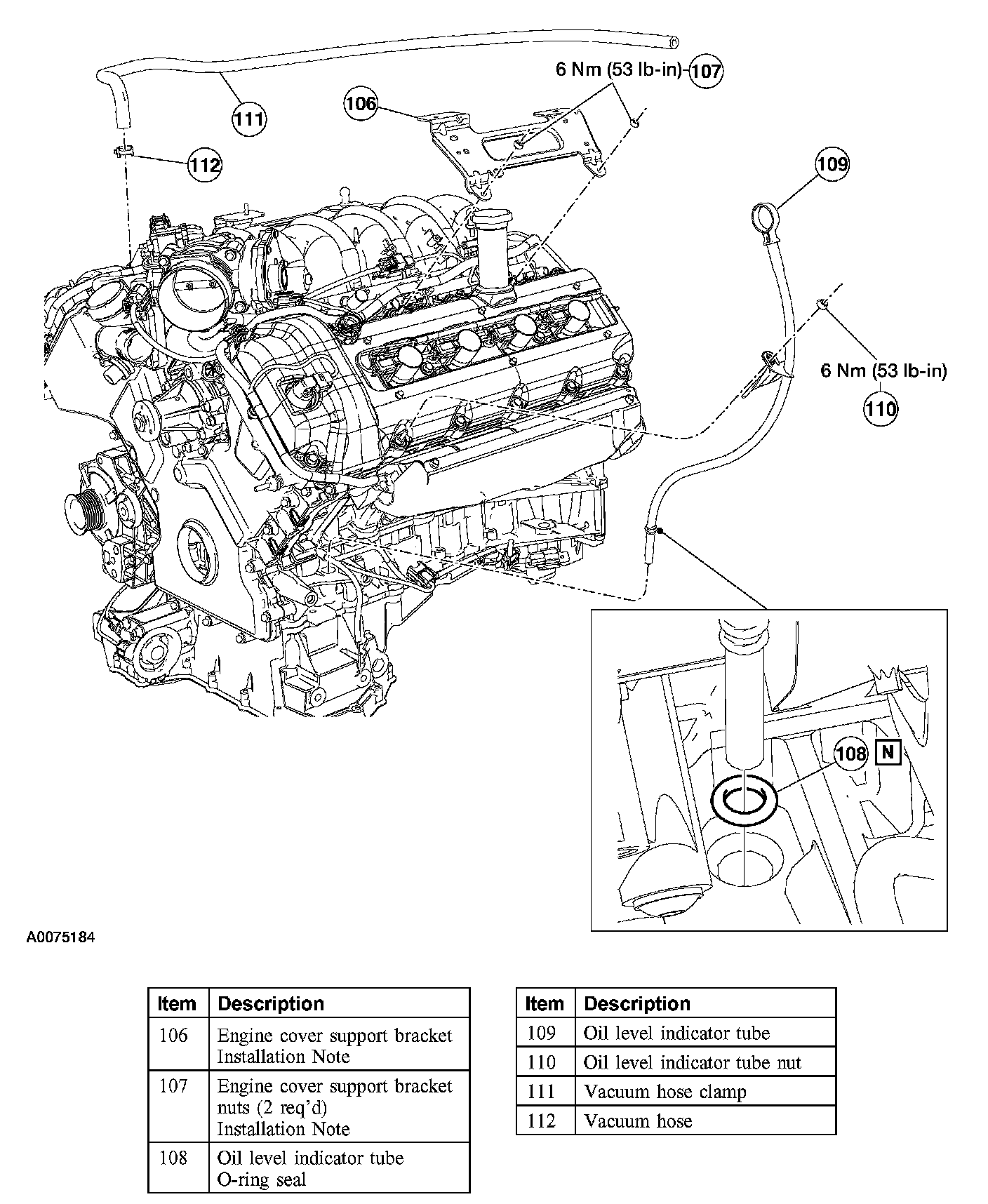

17. Illustration 16 of 20. Install the components in the order indicated in the illustration and table.





18. Illustration 17 of 20. Install the components in the order indicated in the illustration and table.





19. Illustration 18 of 20. Install the components in the order indicated in the illustration and table.





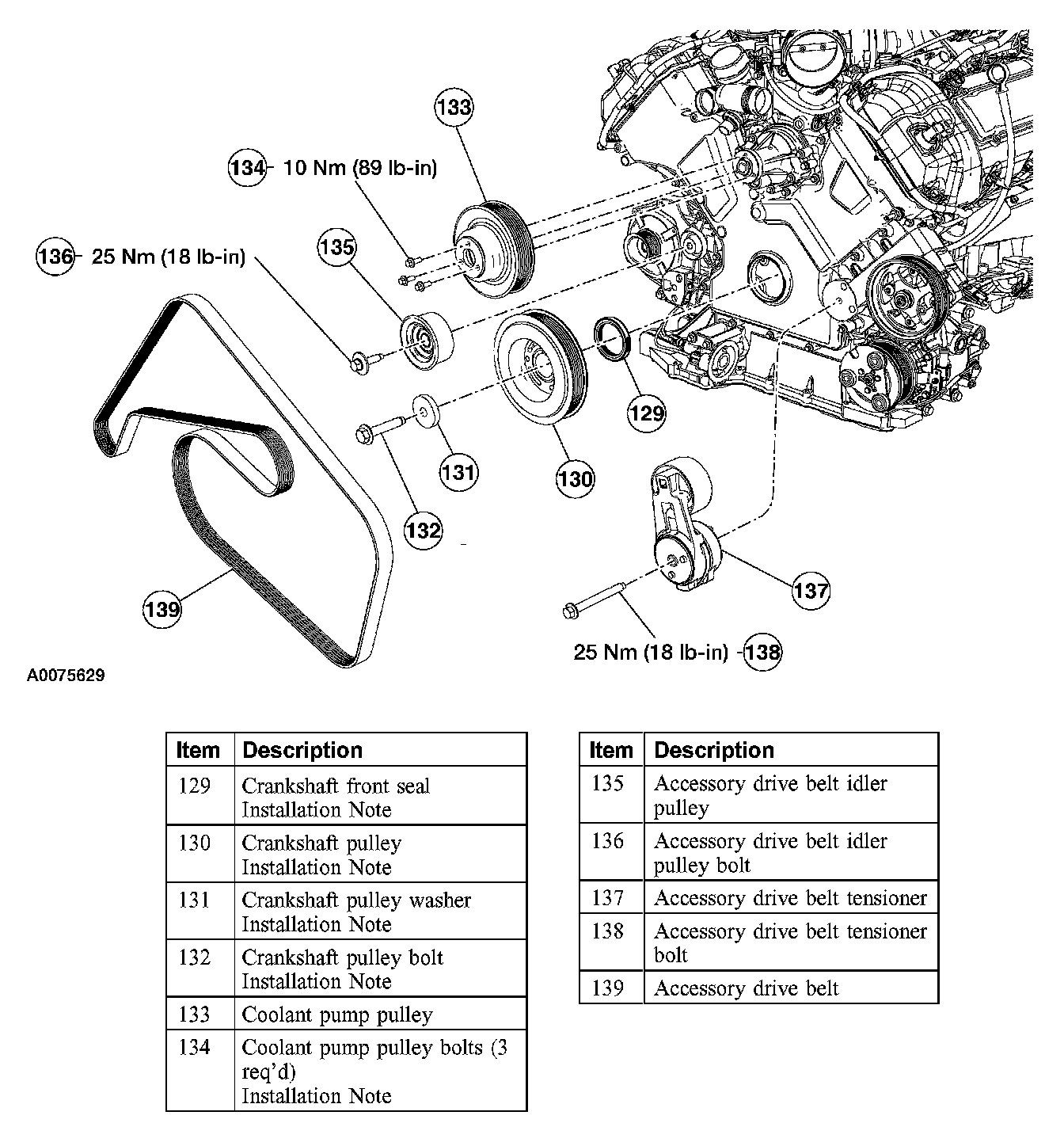

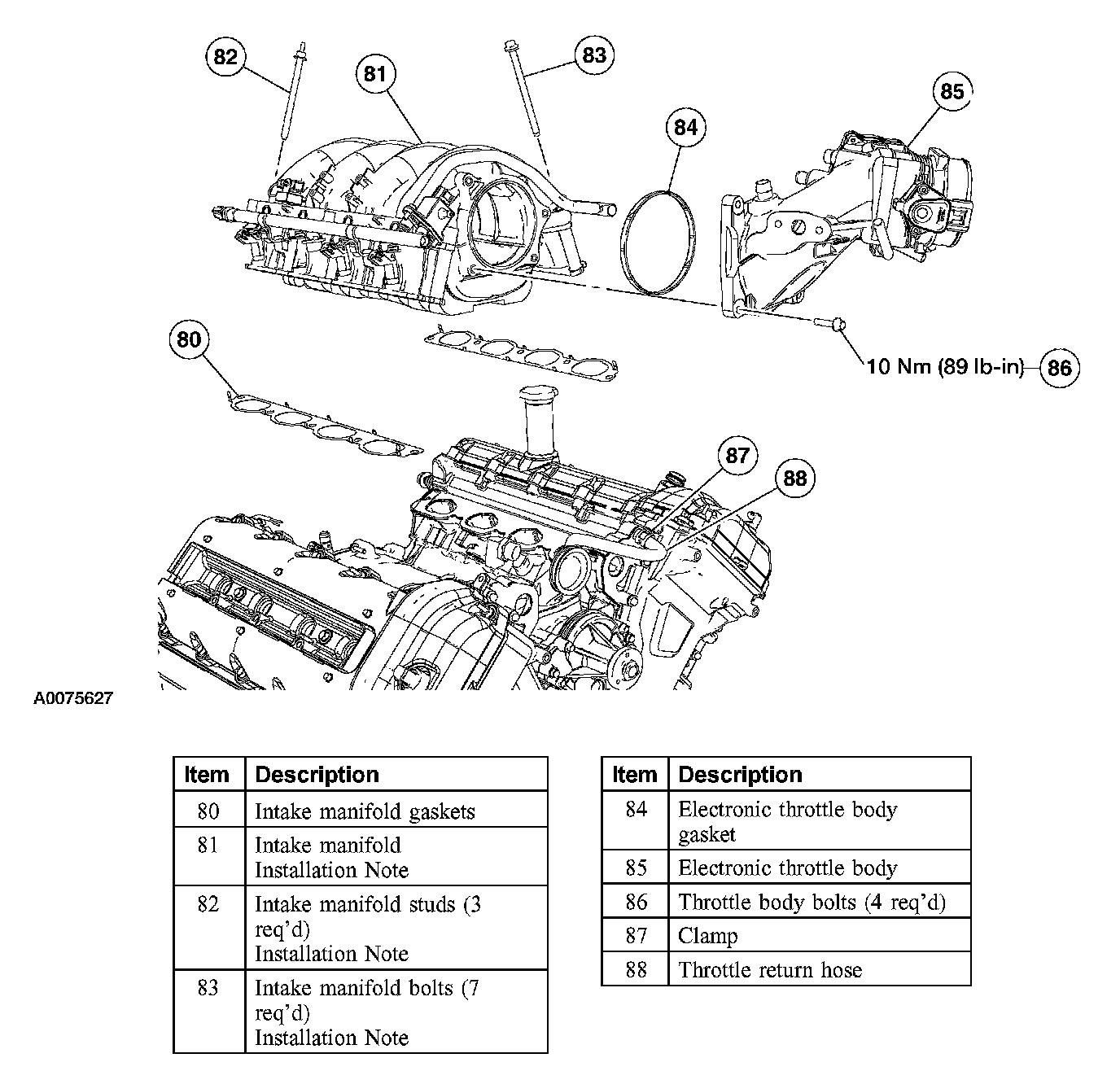

20. Illustration 19 of 20. Install the components in the order indicated in the illustration and table.





21. Illustration 20 of 20. Install the components in the order indicated in the illustration and table.
22. Remove the engine from the engine stand.
23. Install the engine.
