Engine Mount: Service and Repair

Engine Mount

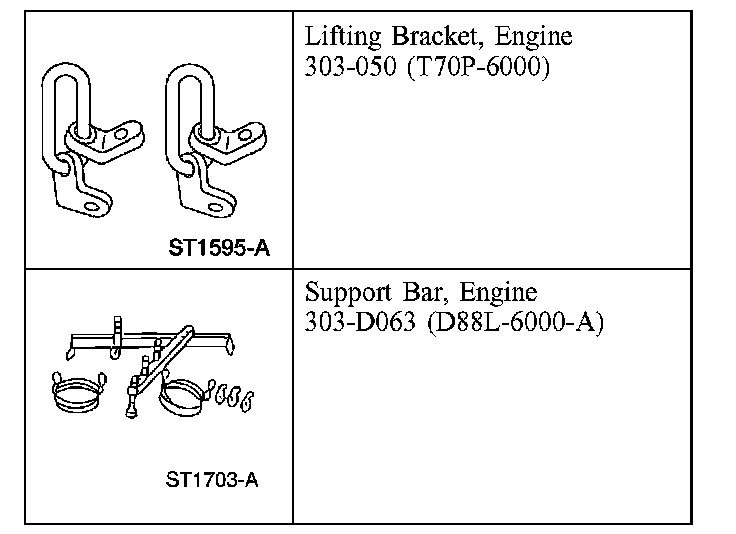

Special Tool(s)

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the air cleaner outlet tube.

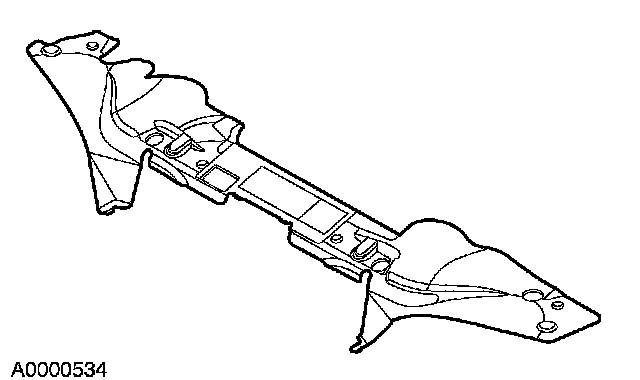

4. Remove the upper radiator sight shield.

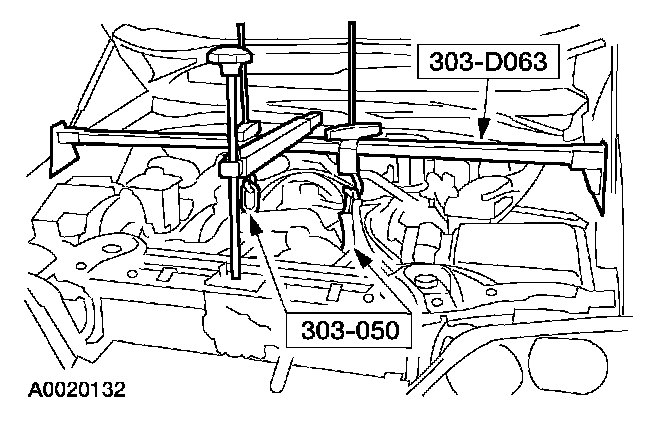

5. Install the special tools and support the engine.

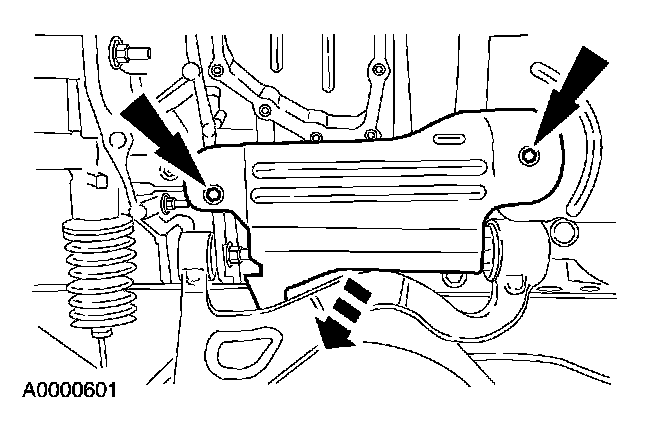

6. Remove the LH and the RH lower splash shield.

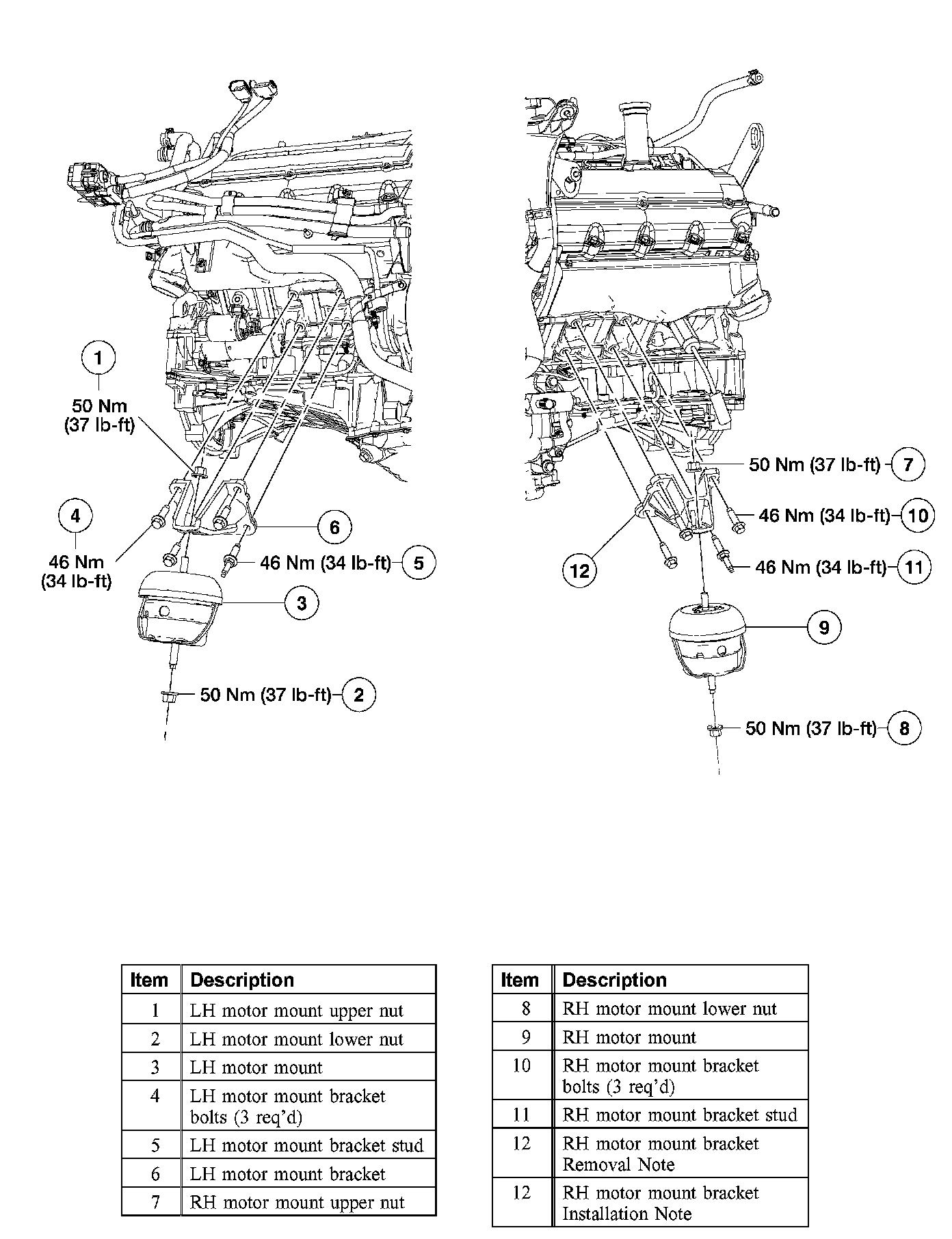

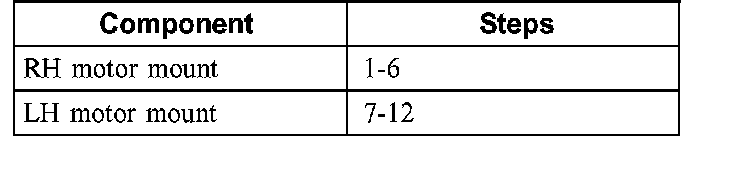

7. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.





8. To install, reverse the removal procedure.

Item 12: RH Motor Mount Bracket Removal Note

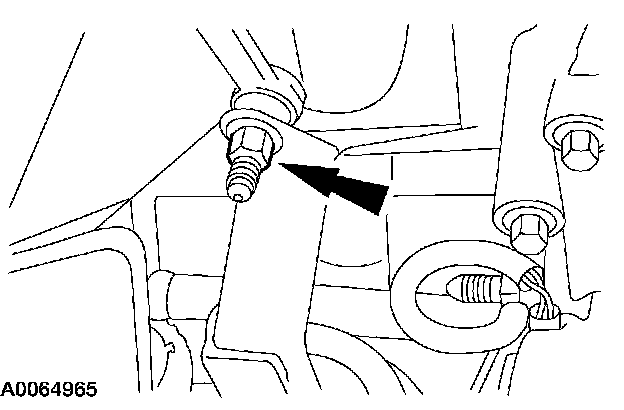

1. Remove the nut and disconnect the starter motor ground cable.

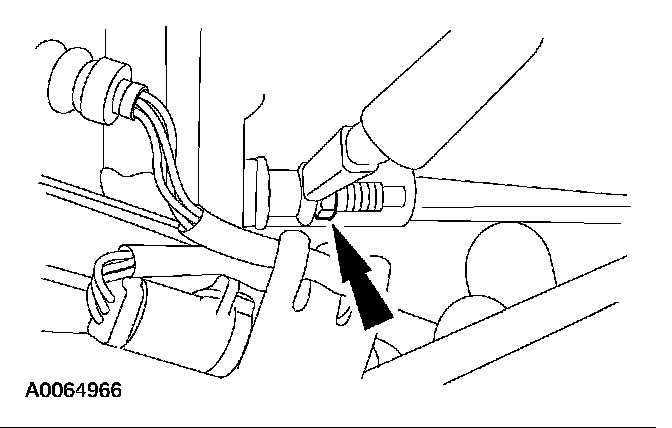

2. Remove the nut and disconnect the wiring harness support bracket from the engine mount bracket.

Item 12: RH Motor Mount Bracket Installation Note

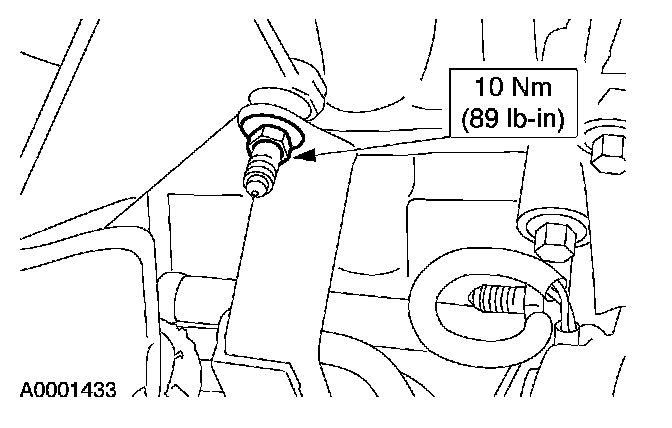

1. Connect the starter motor ground cable and install the nut.





2. Connect the wiring harness support bracket to the engine mount bracket and install the nut.
