Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

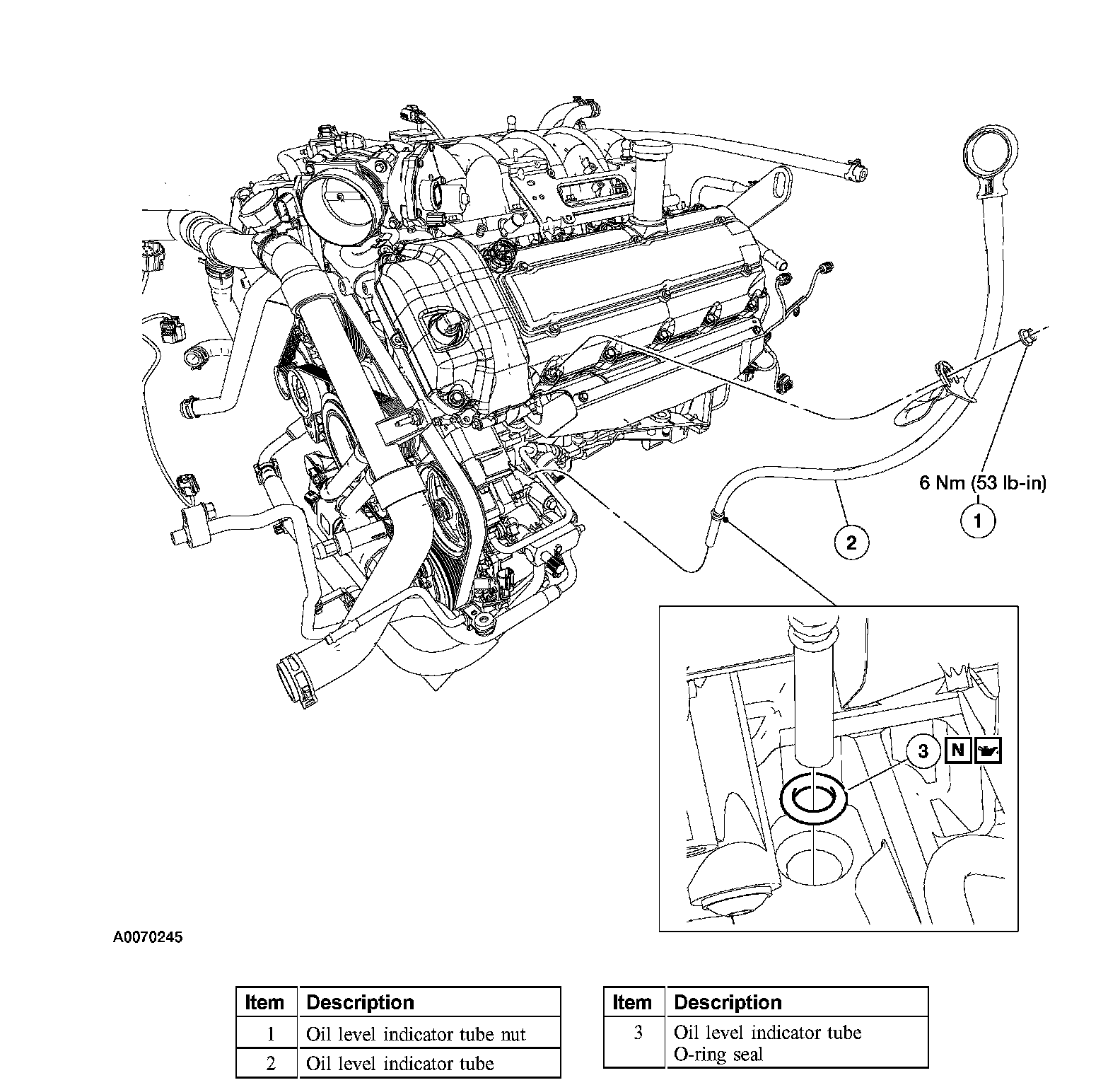

1. Remove the components in the order indicated in the illustration and table.





2. To install, reverse the removal procedure.
