Oil Cooler: Service and Repair
Oil CoolerMaterial
1. With the vehicle in NEUTRAL, position it on a hoist.
2. CAUTION: The cooling system filling and bleeding procedure must be followed exactly or damage to the engine can occur.
Drain the cooling system.
3. Drain the engine oil.
4. Remove the lower splash shield.

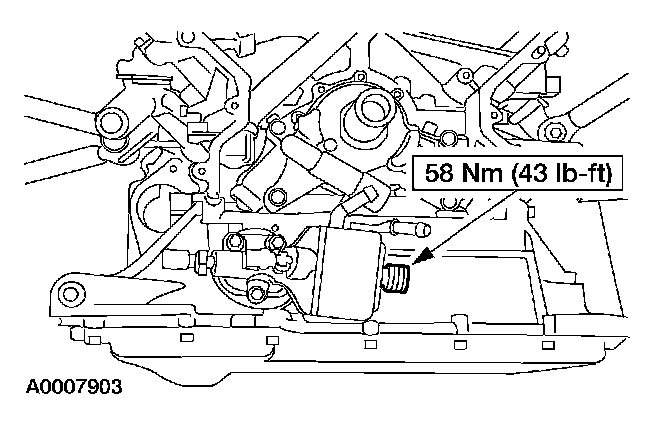

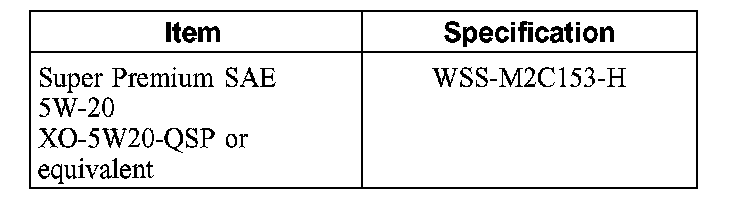

5. Remove the components in the order indicated in the illustration and table.
6. To install, reverse the removal procedure.
Item 9: Oil Cooler Installation Note
1. NOTE: Inspect the gasket and surfaces for contamination prior to installation.
Position the oil cooler and a new gasket and install the bolt.
^ Rotate the cooler clockwise until the locating pin hits the stop.
Items 7 and 8: Oil Filter and Gasket Installation Note
1. Install the oil filter until the seal makes contact. Using an oil filter strap wrench, tighten an additional 270°.
