Exhaust Manifold-LH

Exhaust Manifold-LH
1. Remove the oil level indicator tube.

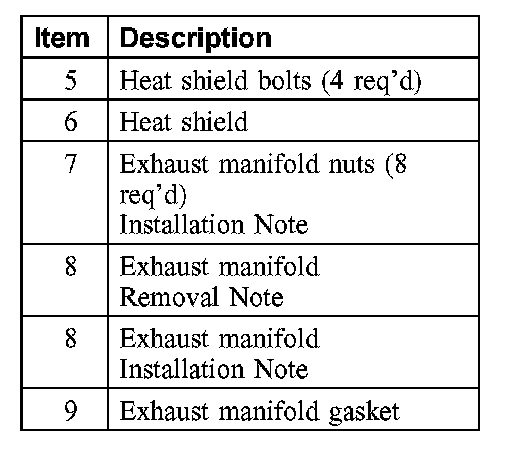

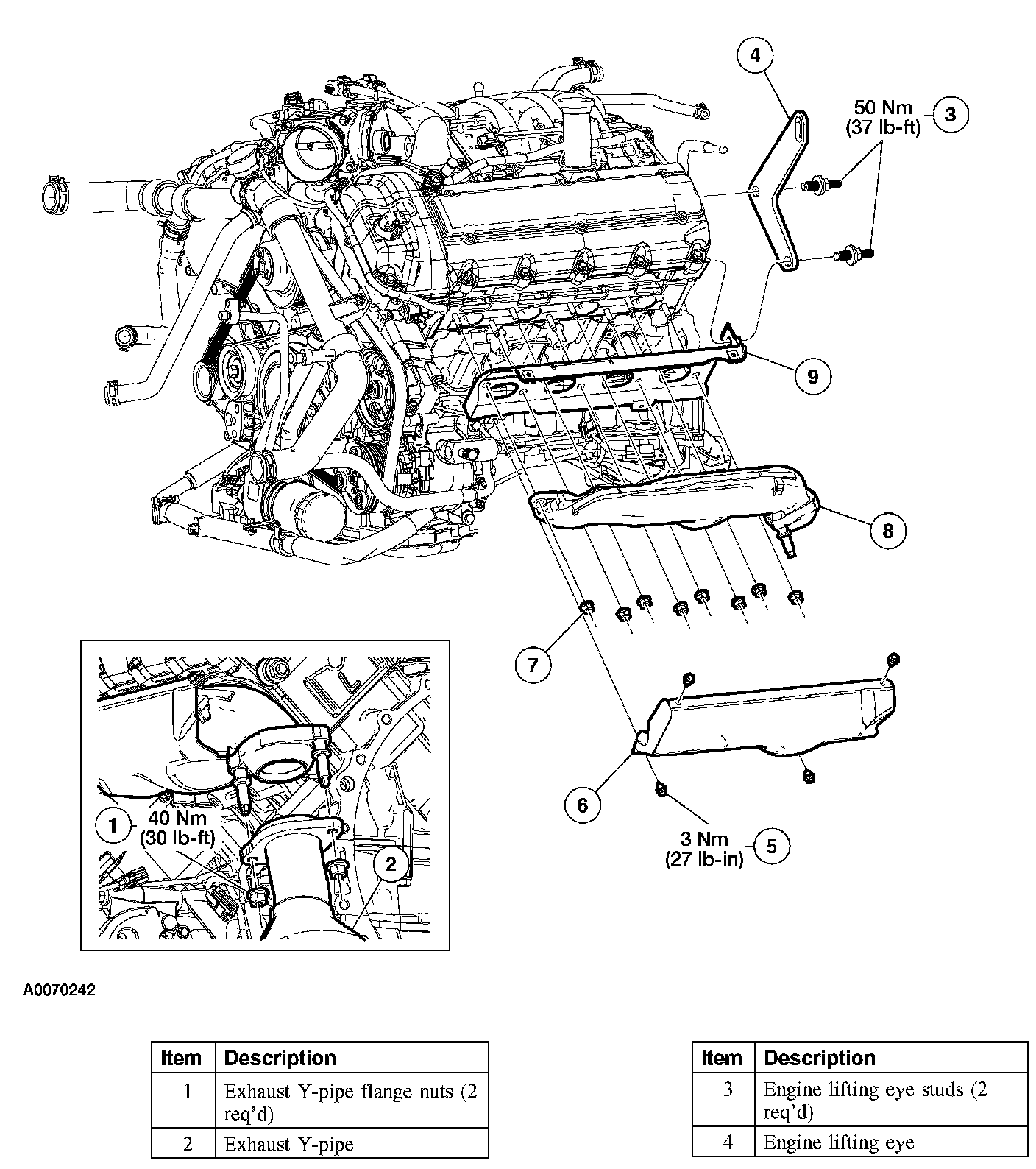

2. Remove the components in the order indicated in the illustration and table.








3. To install, reverse the removal procedure.

Item 8: LH Exhaust Manifold Removal Note

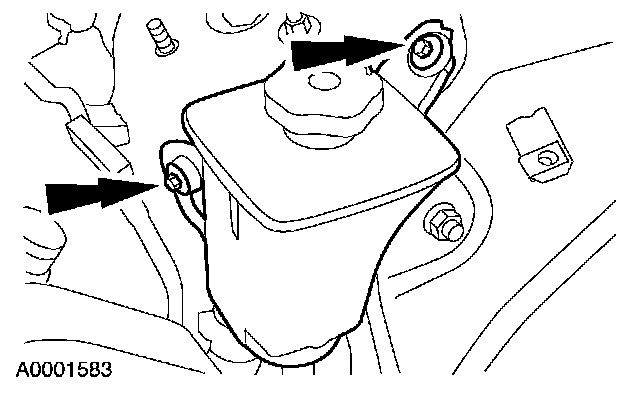

1. Remove the bolts and position the power steering reservoir aside.
2. Remove the exhaust manifold.
^ Remove the eight nuts.
^ Remove the exhaust manifold and discard the gasket.

Items 7 and S: LH Exhaust Manifold Installation Note





1. Install the exhaust manifold.
^ Install a new gasket and the exhaust manifold.
^ Tighten the eight nuts in the sequence shown.





2. Position the power steering reservoir and install the bolts.
