Exhaust Manifold-RH

Exhaust Manifold-RH
1. With the vehicle in NEUTRAL, position it on a hoist.

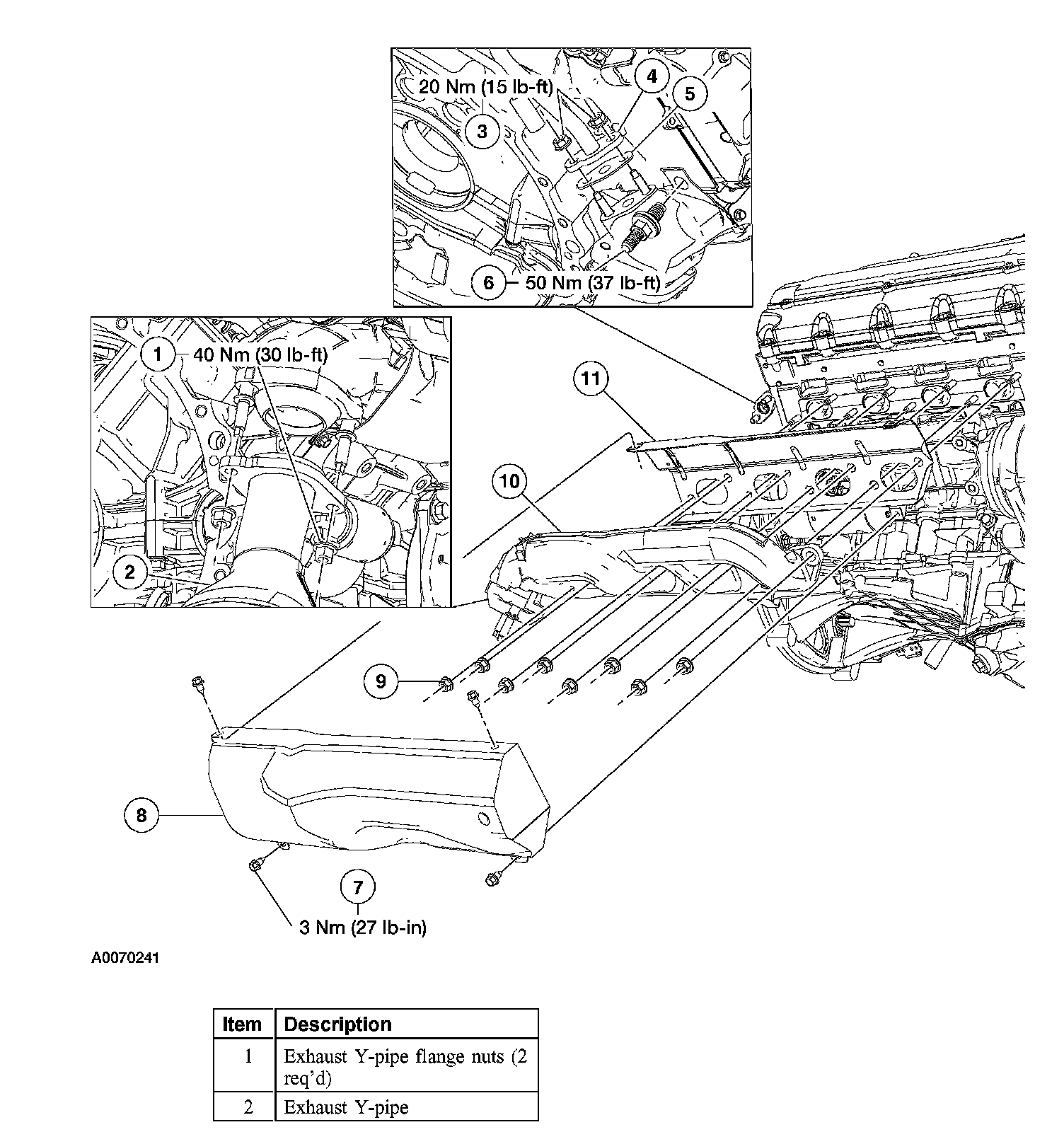

2. Remove the components in the order indicated in the illustration and table.








3. To install, reverse the removal procedure.

Items 9 and 10: RH Exhaust Manifold Installation Note





1. Install the exhaust manifold.
^ Install a new gasket and the exhaust manifold.
^ Install the exhaust manifold nuts hand tight.
^ Install the Exhaust Gas Recirculation (EGR) system module-to-exhaust manifold tube to the exhaust manifold.
^ Tighten the eight nuts in the sequence shown.
