Exhaust System

Exhaust System-3.9L

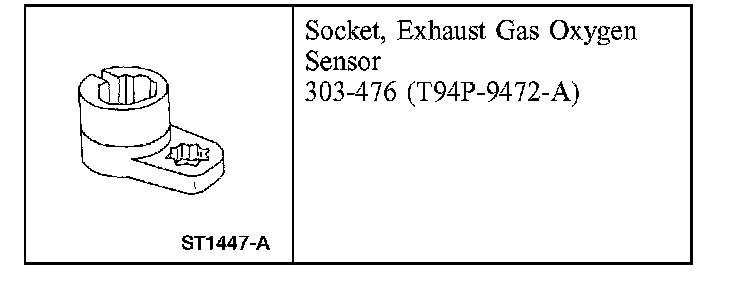

Special Tool(s)

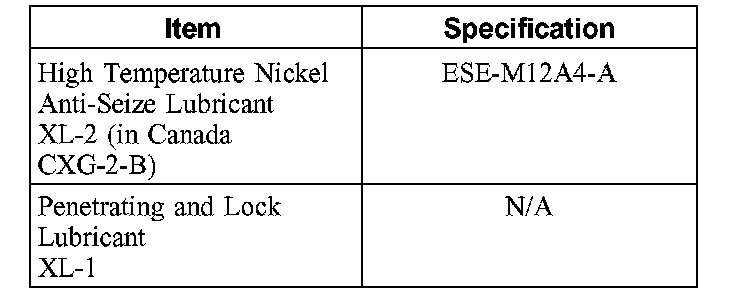

Material

1. With the vehicle in NEUTRAL, position it on a hoist.
2. To remove individual exhaust components, only carry out the listed steps.

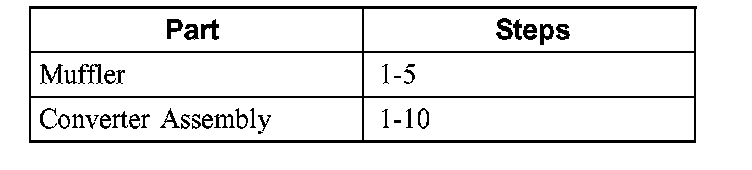

To remove individual parts, only carry out the listed steps:

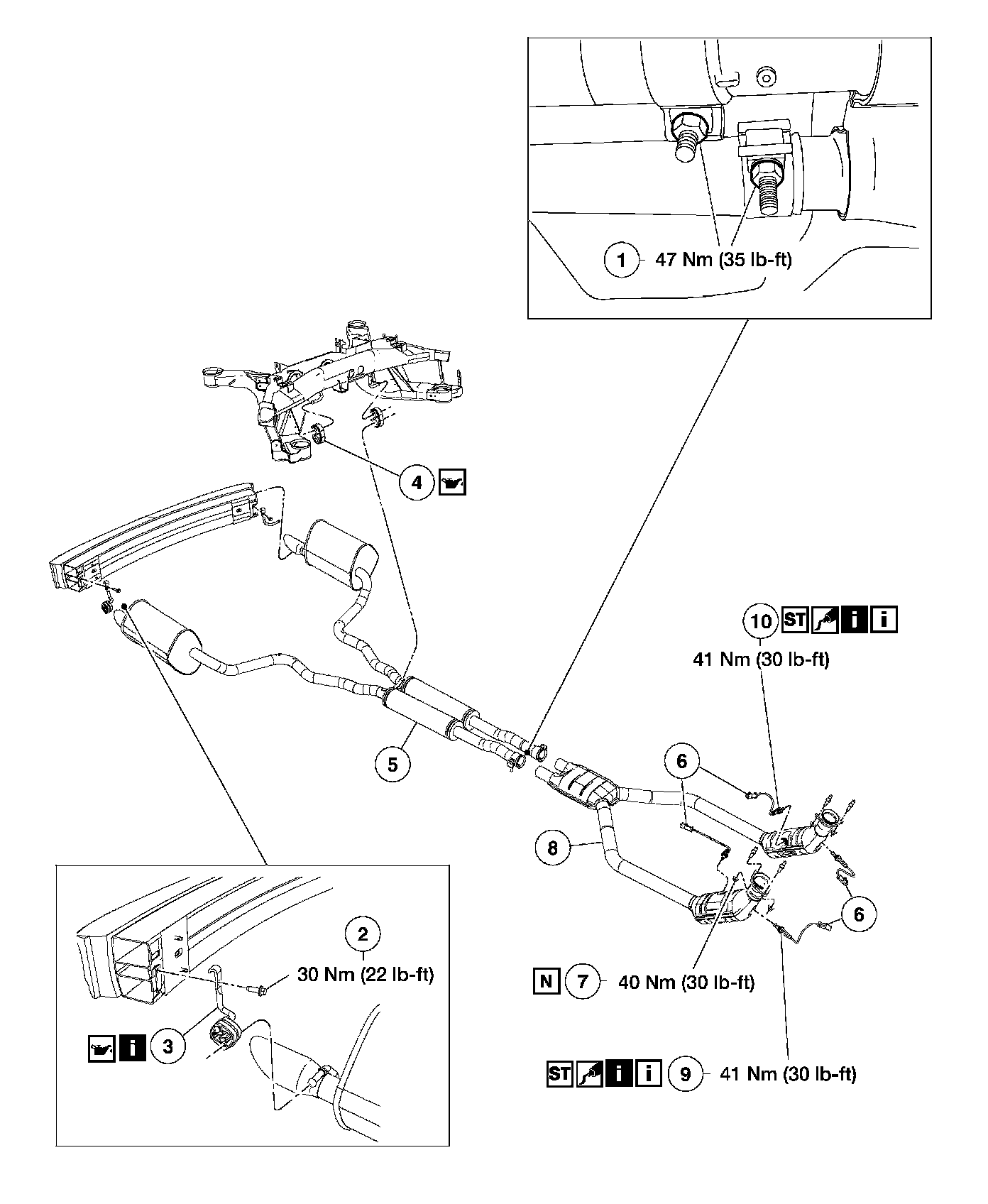

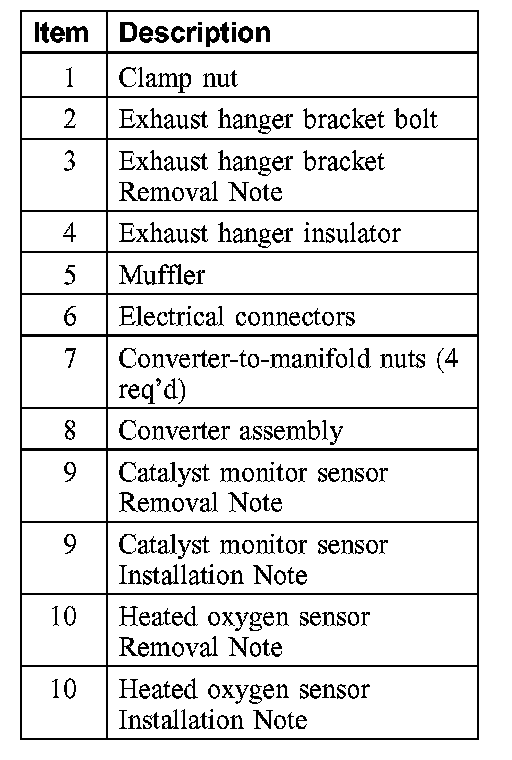

3. Remove the components in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
5. Check and, if necessary, align the exhaust system.

Item 3: Exhaust Hanger Bracket Removal Note
1. Remove the exhaust hanger bracket and the exhaust hanger insulator as an assembly.

Item 9: Catalyst Monitor Sensor Removal Note

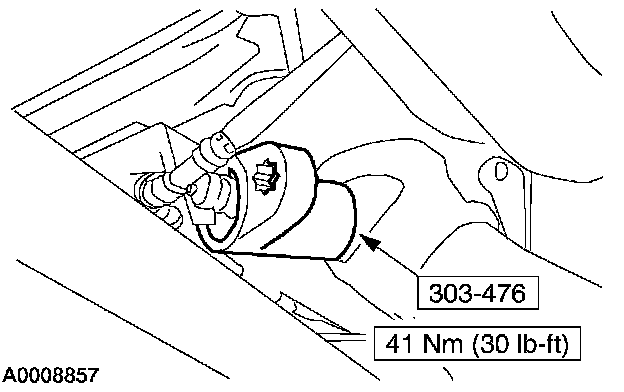

1. Using the special tool, remove the catalyst monitor sensors.

Item 10: Heated Oxygen Sensor Removal Note





1. Using the special tool, remove the heated oxygen sensors.

Item 10: Heated Oxygen Sensor Installation Note

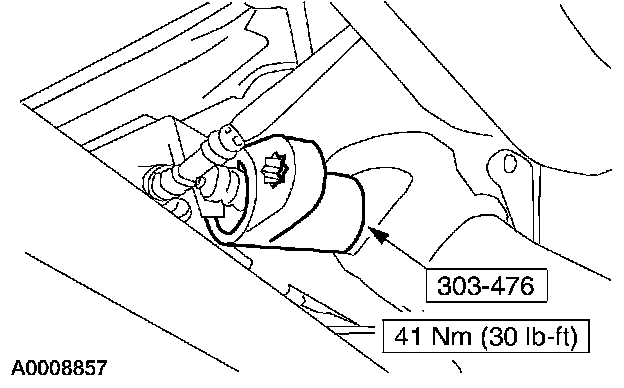

1. Apply anti-seize to the threads of the sensors before installation. Using the special tool, install the sensor.

Item 9: Catalyst Monitor Sensor Installation Note
1. Apply anti-seize lubricant to the threads of the sensors before installation. Using the special tool, install the sensor.
