Air Duct: Service and Repair

AIR DISTRIBUTION DUCTS

REMOVAL
1. If removing the front floor ducts, remove the instrument panel lower insulators.
2. If removing the fresh air inlet duct, remove the cowl vent screen.
3. If removing the fresh air inlet duct, remove the cabin air filter.







4. To remove individual components, only carry out the given steps.

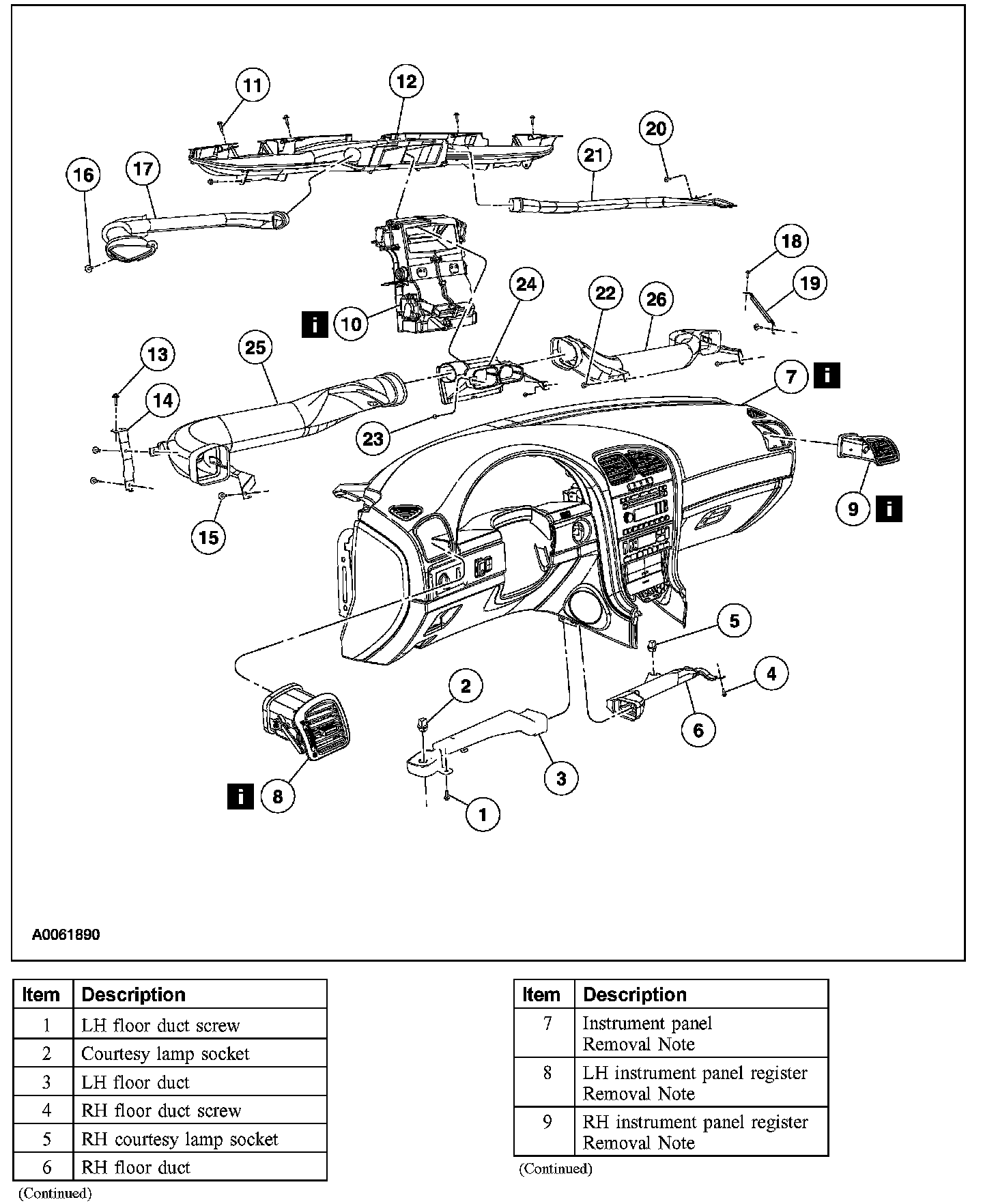

Illustration 1 Of 2, Part 1:

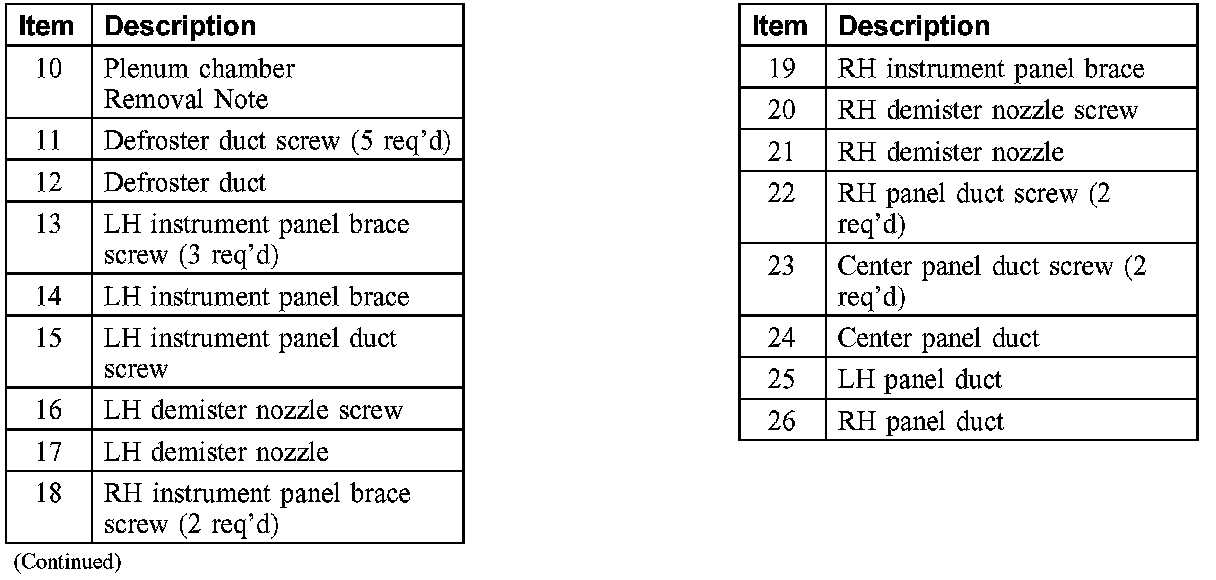

Illustration 1 Of 2, Part 2:

5. Illustration 1 of 2. Remove the components in the order indicated in the given illustration and table.

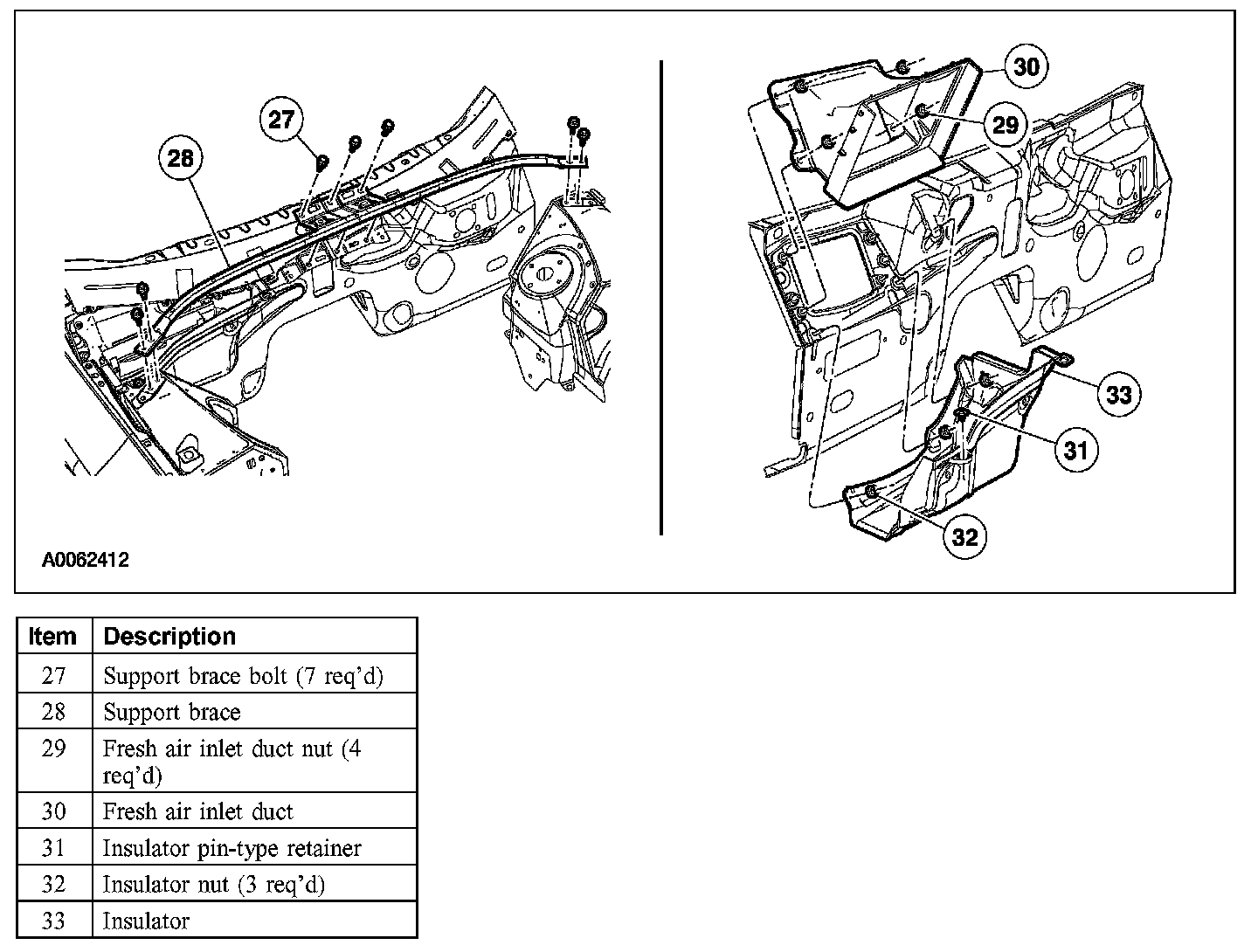

Illustration 2 Of 2:

6. Illustration 2 of 2. Remove the components in the order indicated in the given illustration and table.

Item 7: Instrument Panel Removal Note
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

Item 8-9: LH and RH Instrument Panel Register Removal Note
1. Remove the instrument panel register.

Item 10: Plenum Chamber Removal Note
1. Remove the plenum chamber.

INSTALLATION
1. To install, reverse the removal procedure.
