Housing Assembly HVAC: Service and Repair

PLENUM CHAMBER, ASSEMBLY AND COMPONENTS

REMOVAL
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

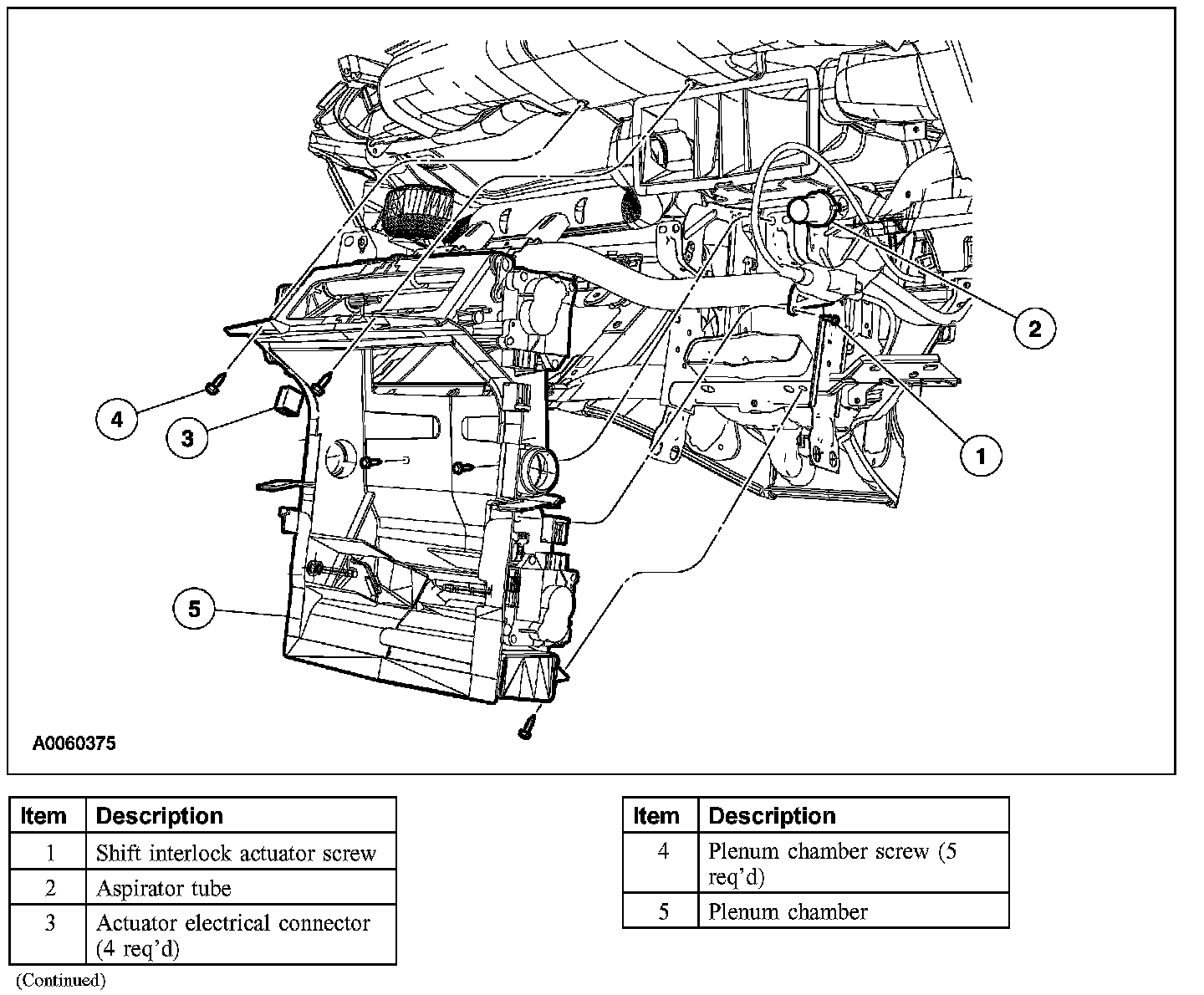

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
