Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> DATC Module C228b

DATC Module C228b

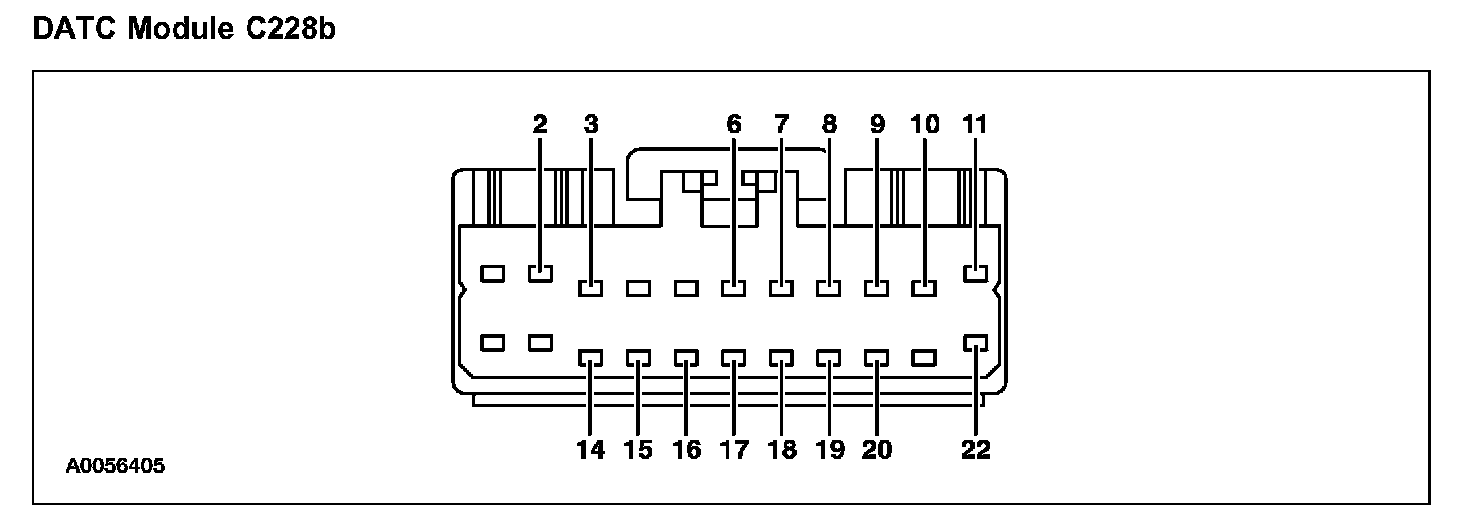

DATC Module C228b, Part 1:

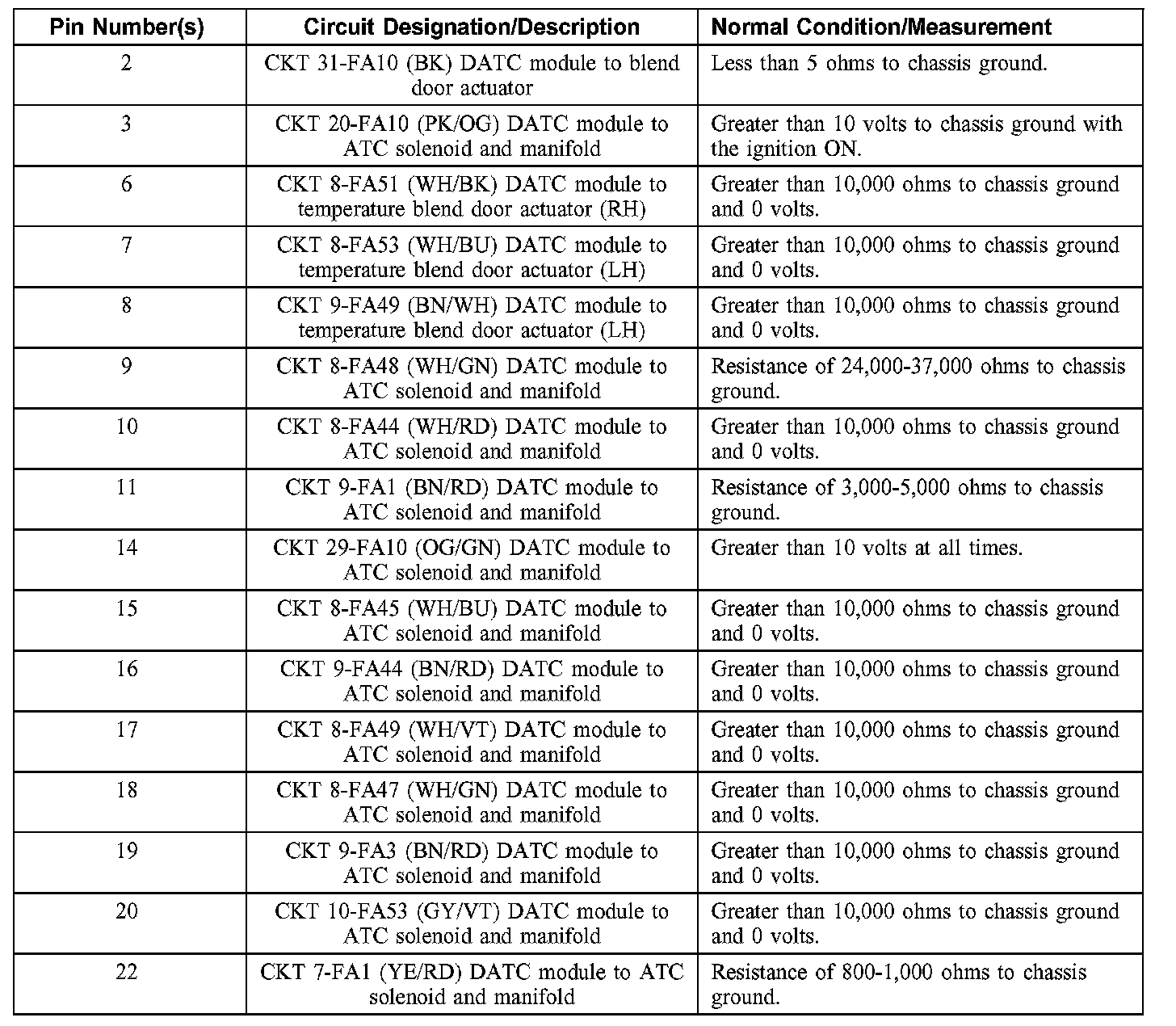

DATC Module C228b, Part 2:
