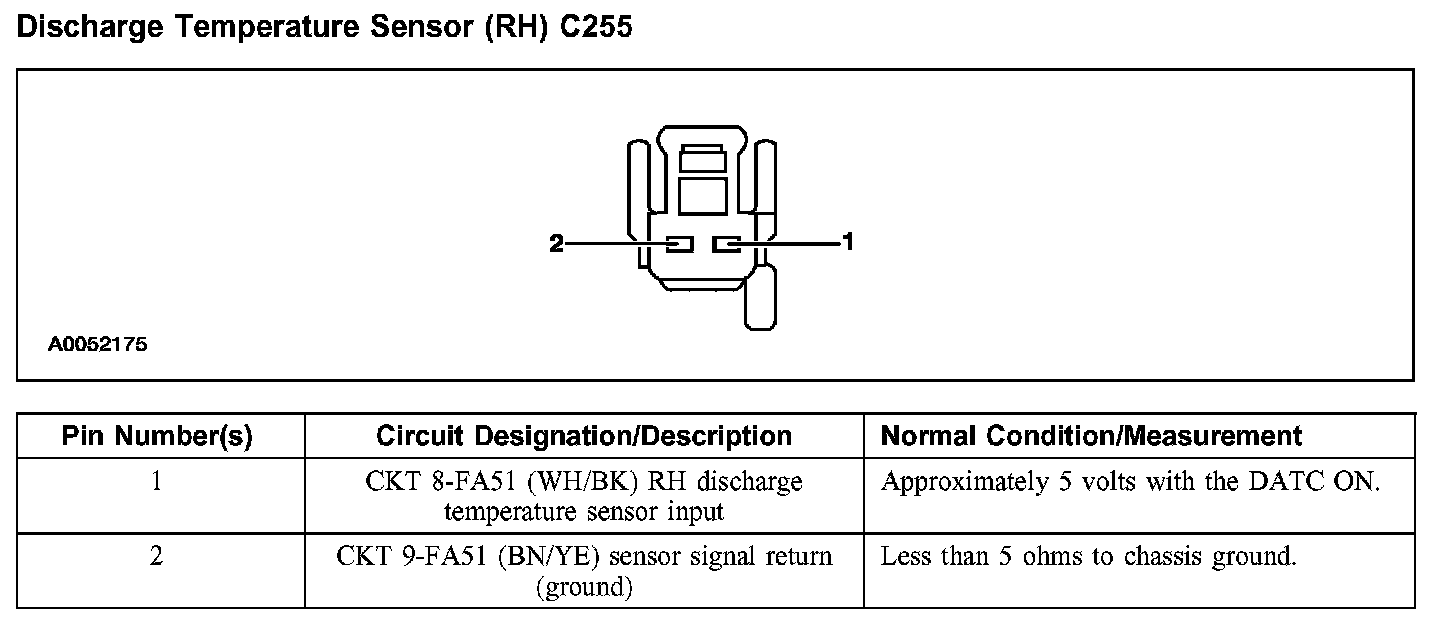

Discharge Temperature Sensor (RH) C255
Discharge Temperature Sensor (RH) C255
Discharge Temperature Sensor (RH) C255:
