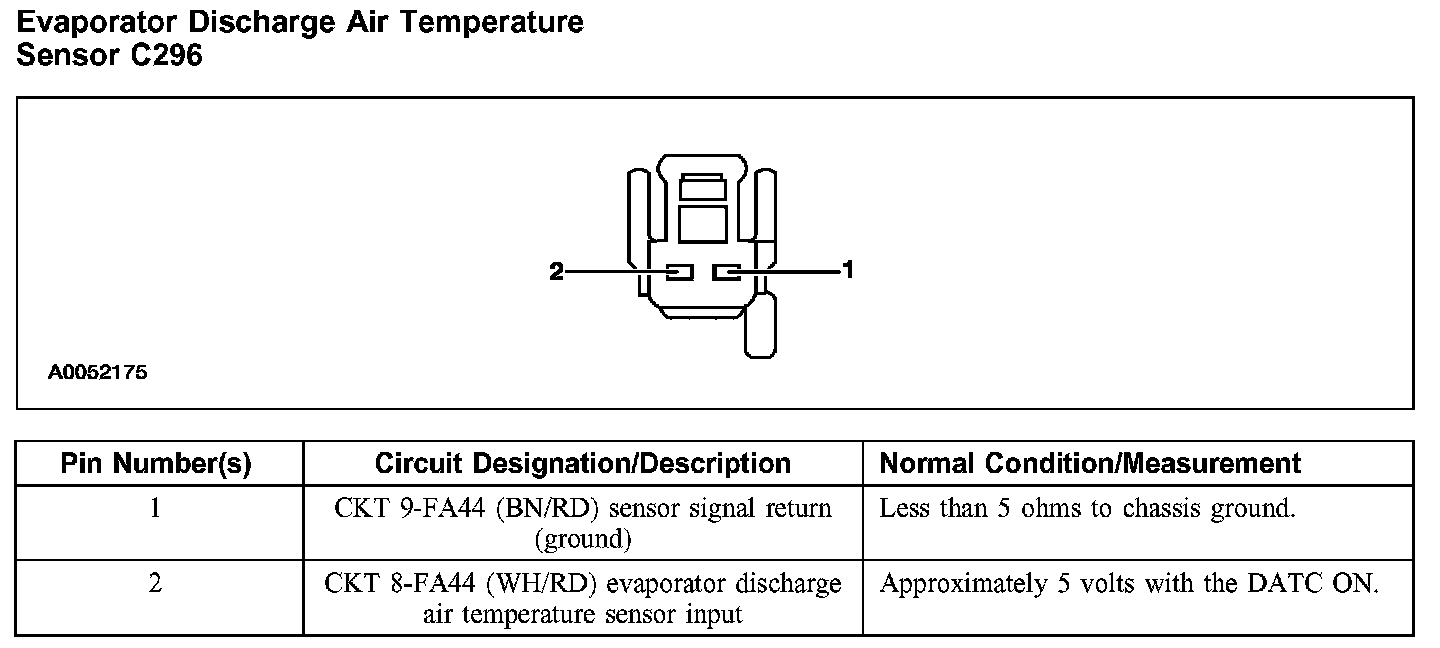

Evaporator Discharge Air Temperature Sensor C296
Evaporator Discharge Air Temperature Sensor C296
Evaporator Discharge Air Temperature Sensor C296:
